Visualization System

Controlling Method

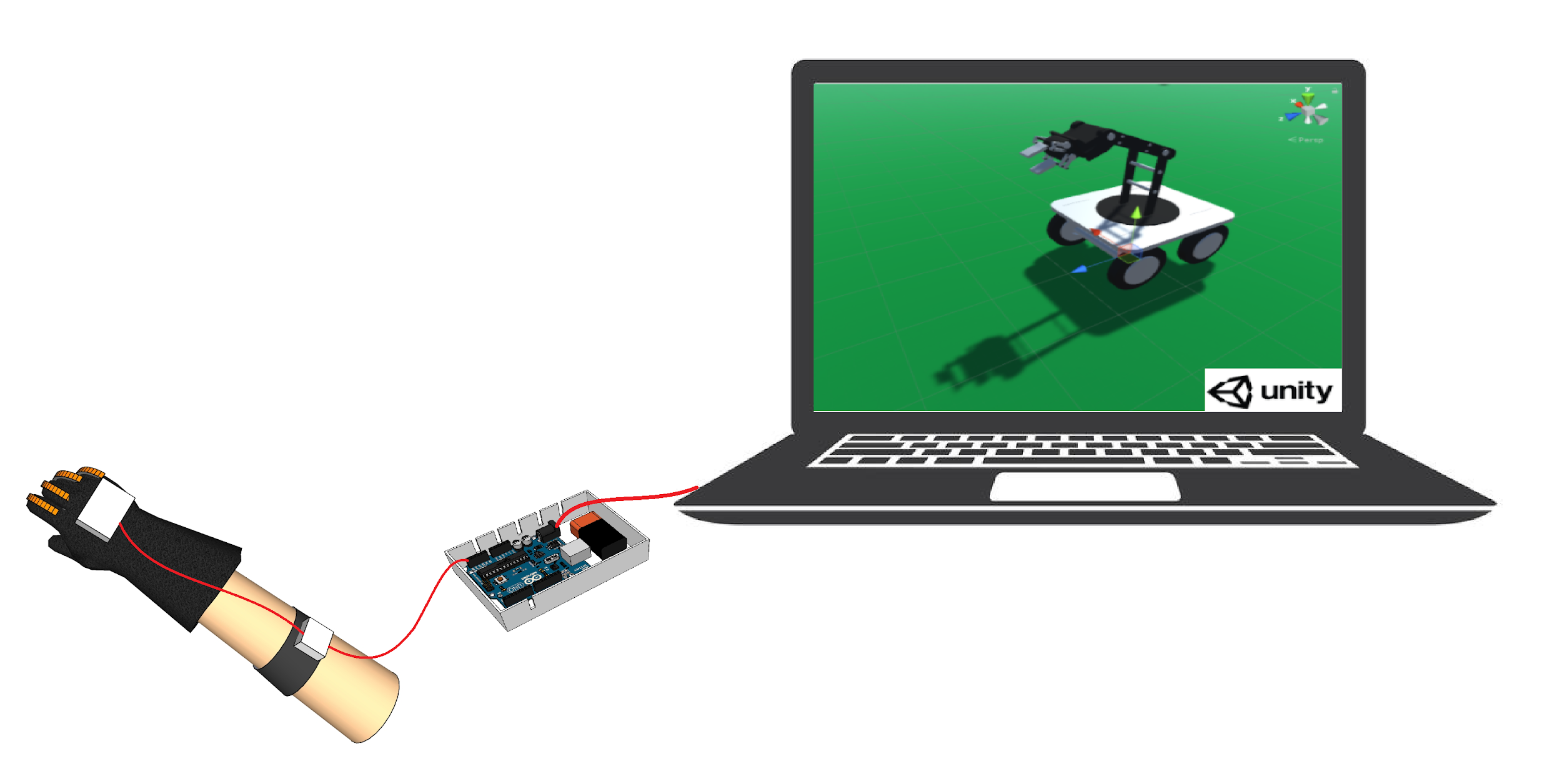

Visualization System is built to provide visual motions. It can be used to predict the actual motion of the robot or familiarize users with the control system.

We use Unity game engine to build our visualization system and import the 3D model built in 3ds Max. The control signal is sending through the serial port wirely. The control method used by visualization system is the same as controlling the robot.
