BOD Removal Design Alternatives

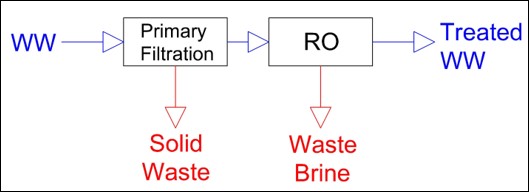

Reverse Osmosis

• 99% BOD Removal
• Durable

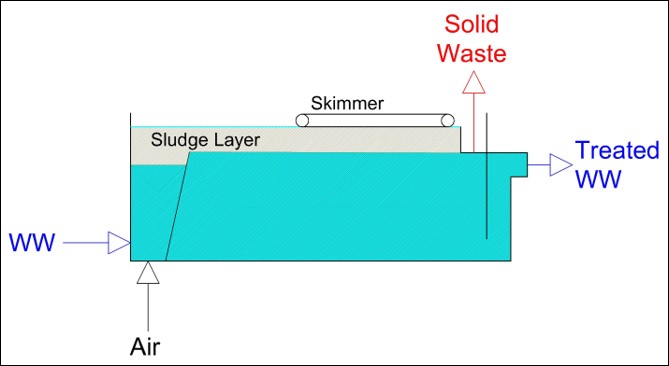

Dissolved Air Flotation

• 50% BOD Removal
• Rely on the stratification of solids

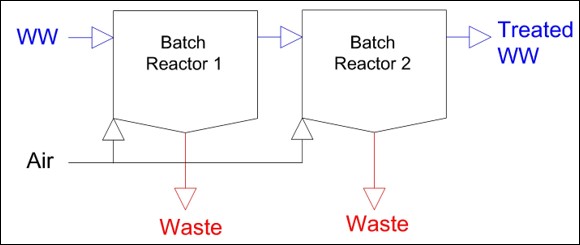

Anaerobic Sequencing Batch Reactor

• 80% BOD Removal
• Suitable for high organic loading rates

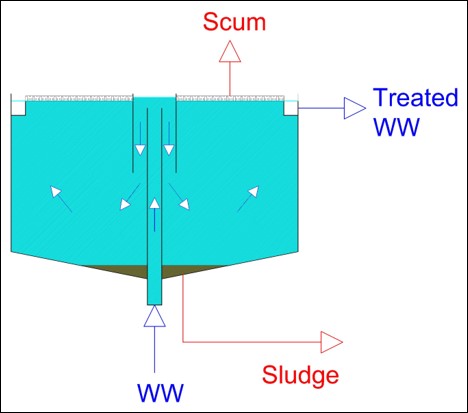

Settling Tank

• 25-35% BOD Removal
• Rely on the stratification of solids

TKN Removal Design Alternatives

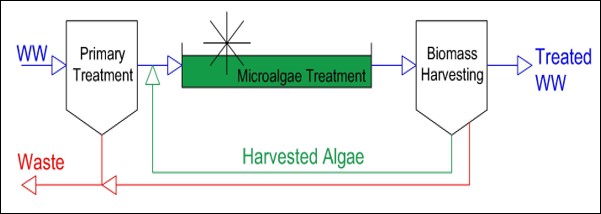

Microalgae Raceway Pond

• 99% TKN Removal
• Highly reliant on natural light

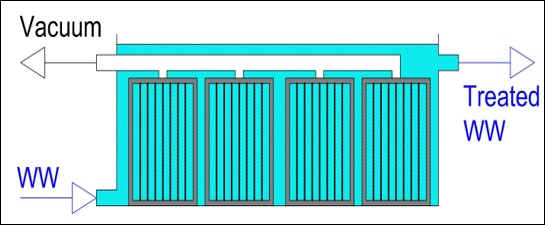

LEAPmbr

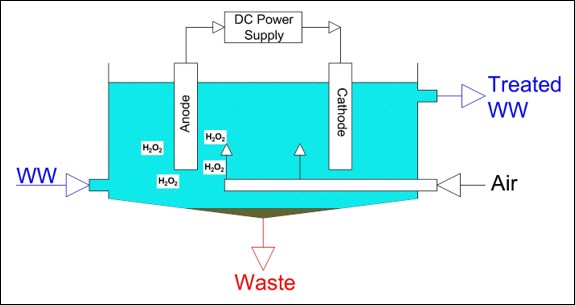

Electro-Fenton Sequencing Batch Reactor

• 90% TKN Removal
• High installation and maintenance costs

• 98% TKN Removal
• High installation and maintenance costs

BOD & TKN Removal Design Alternatives

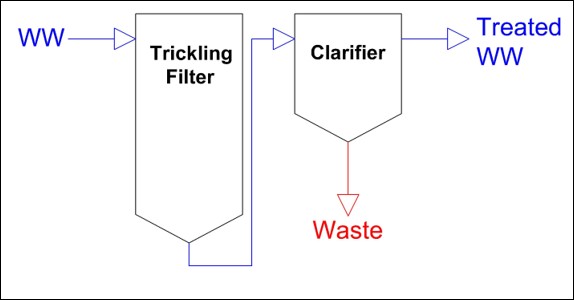

Trickling Filter

• 95% BOD Removal
• 70% TKN Removal
• Proven in brewery wastewater applications

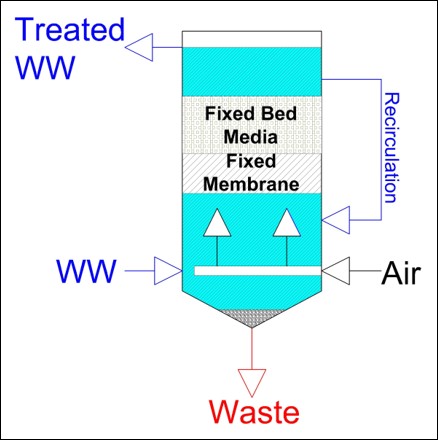

Hybrid Fixed Bed Membrane Bioreactor

• 95% BOD Removal
• 49% TKN Removal
• Suitable for high organic loading rates

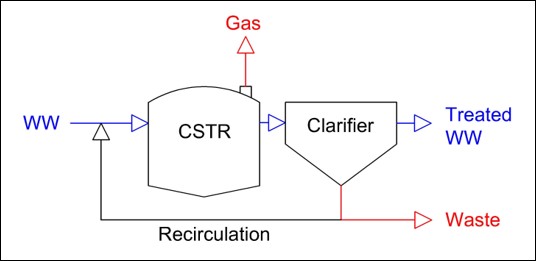

Anaerobic Continuously Stirred Tank Reactor (CSTR)

• 80% BOD Removal
• 40% TKN Removal
• Suitable for high organic loading rates

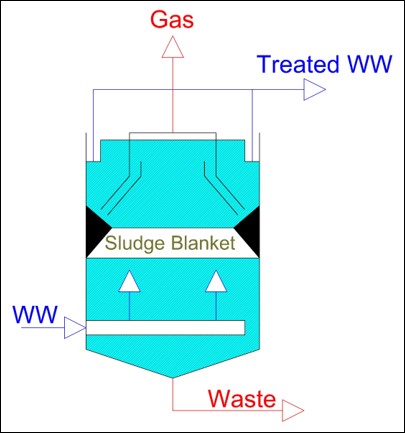

Upflow Anaerobic Sludge Blanket

• 80% BOD Removal
• 98.3% TKN Removal
• Separation of gas, solids, and liquids
