Project Information

Project Location

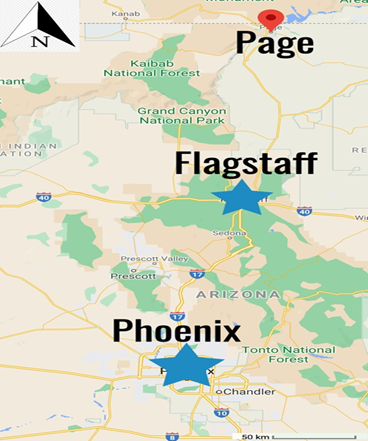

Location of Page within Arizona, approximately the same distance from Flagstaff to Phoenix.

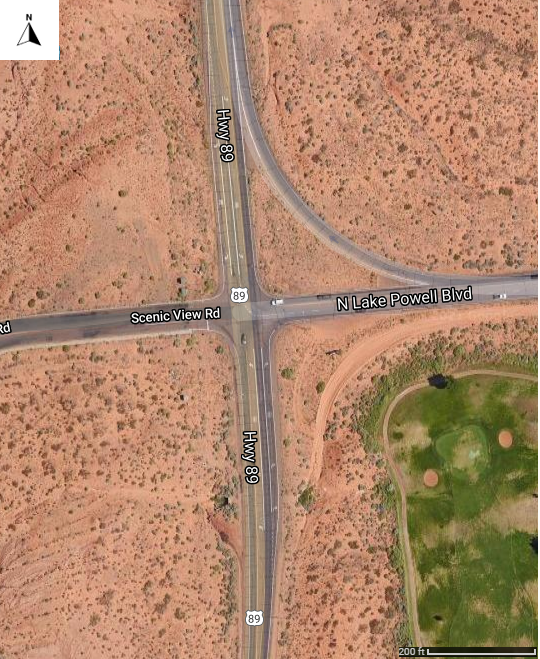

Intersection Aerial View

US 89 goes south and north from the intersection. N Lake Powell road and Scenic View road respectively drive west and east from the intersection.

Project Purpose

A roundabout is being considered for this intersection due to traffic conflicts and incidence of crashes. The current intersection is a four -way intersection with stop signs on the North Lake Powell Boulevard and Scenic View Road, while traffic travelling North and South on US89 do not stop. The roundabout will allow vehicles to travel more efficiently along Highway 89 and cut down the congestion seen at the intersection for vehicles entering/exiting the highway

Project Constraints

1. Must meet all applicable local, state and federal design standards

2. Must meet Arizona construction and material standards

3. The traffic performance after the completion of the project must be LOS C or above

4. After the completion of the existing project, the possibility of collision at the site must be reduced to ensure the safety of vehicles, pedestrians and cyclists

5. Must comply with the design specifications for Arizona roadways and highways

6. The most cost-saving and high-efficiency construction method currently available must be used

Staffing and Budget

Staffing

Staffing for the roundabout design will consist of specific requirements along with work distribution

Document

Budget

The budget for the project will be determined by the amount of man hours needed to complete the design

DOCUMENT

Tasks and Schedule

Tasks

The project tasks need to be accomplished within the time frame to achieve the project goals

DOCUMENT

Schedule

The schedule being used is to ensure that the project is being worked on at a sufficient rate in order to meet the deadline

DOCUMENT

Design Alternatives, Decision Matrix and Construction Cost

ALTERNATIVE DESIGN

The purpose of creating alternative designs is to improve the process of obtaining better results in order to select the final design

DOCUMENT

DECISION MATRIX

The decision matrix is created to analyze alternative solutions based on the VISSIM model

DOCUMENT

CONSTRUCTION COST

Consider each construction step around the roundabout to estimate the construction cost

DOCUMENT
