POTABLE WATER DESIGN
A future water demand is calculated for a future population for Page and LeChee, Arizona for a future design flow for a 25-year period. The link below provides how this is accomplished

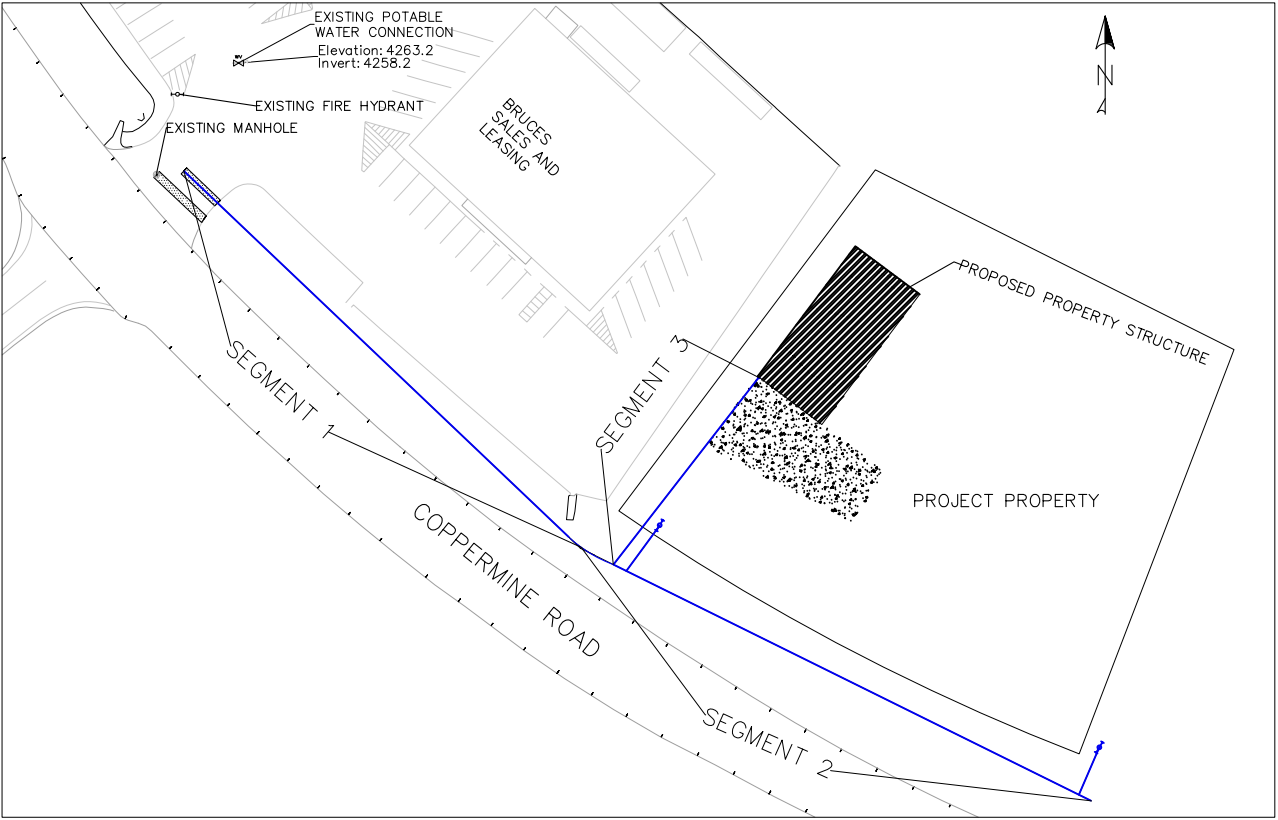

DemandA potable water network is designed following the City of Page design standards. The link below shows how the final water design for a 8-inch water main and 2-inch service lateral will tap into the 8-inch water main to supply water to the proposed structure on the project property. Its use is assumed for a potential wash bay.
Water Network

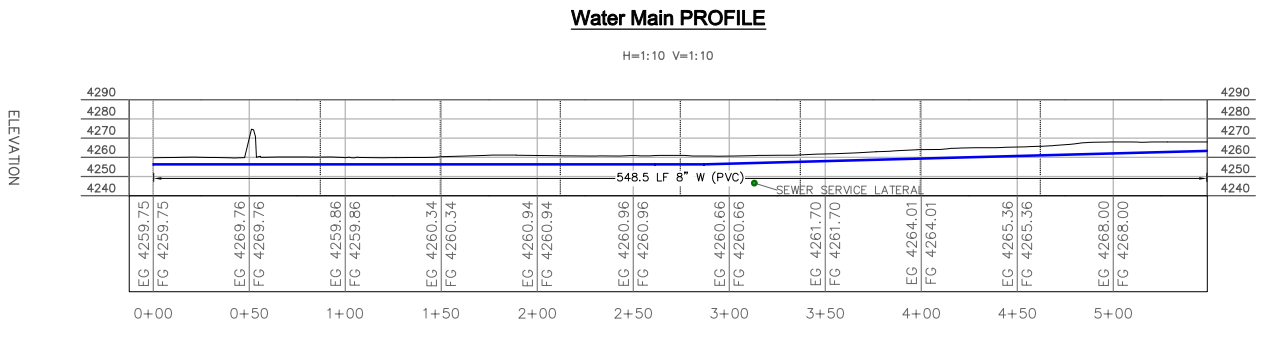

The depth and location of each pipe in relation to the surface is provided in the link below.
Profiles
A hydraulic analysis is performed for the design to ensure that the minimum pressure requirements set by the City of Page are met. The link below shows the Bentley FlowMaster results.
Hydraulics
