CAD Drawings
Below are latest CAD and analysis drawings for the 2011 Human Powered Vehicle.

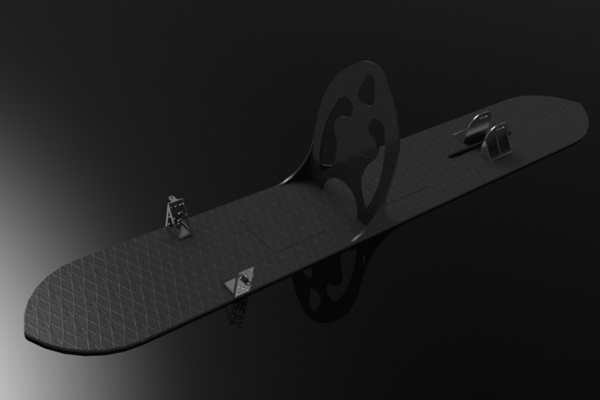

This is the current CAD model of our honeycomb frame with roll cage and wheel mounts.
The chassis of the 2011 Human Powered Vehicle. We have changed the drive system from a traditional bicycle crankset to lever cranks.
Another view of the vehicle chassis.
Cutaway view of the vehicle with a composite and spandex fairing.
Vehicle with composite and spandex fairing.
