Project Overview

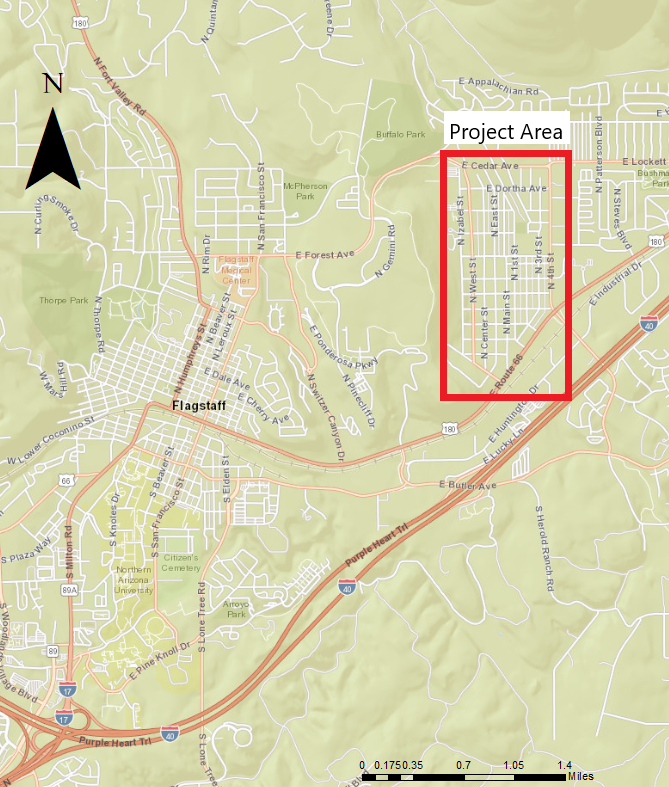

Figure 1: Project Area Location

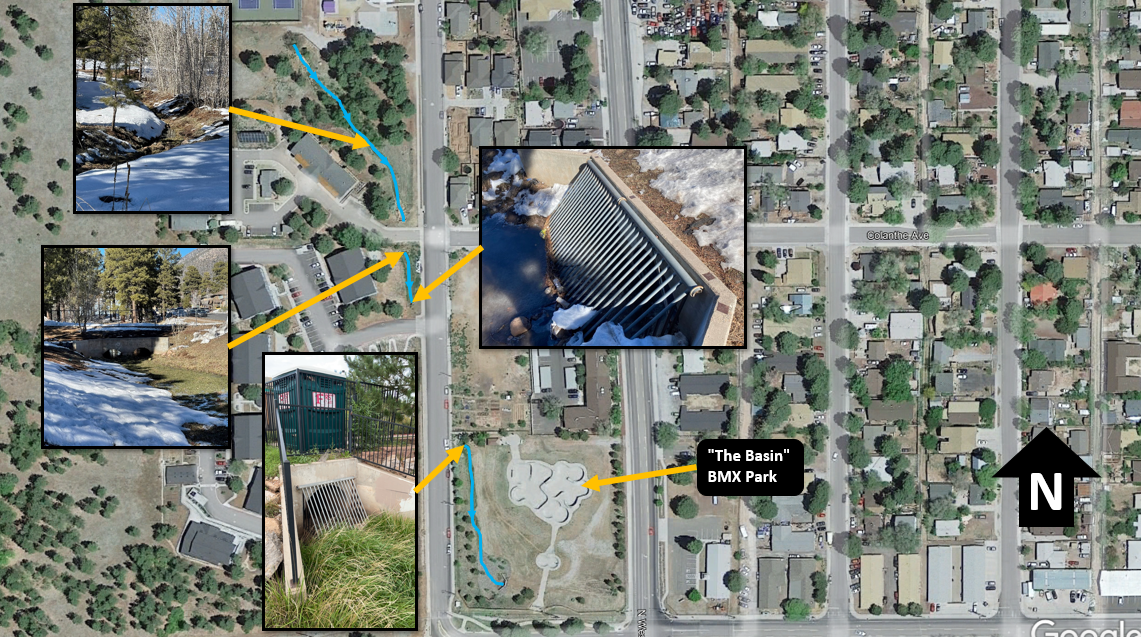

Figure 2: Overland Flow entering "The Basin" BMX Park

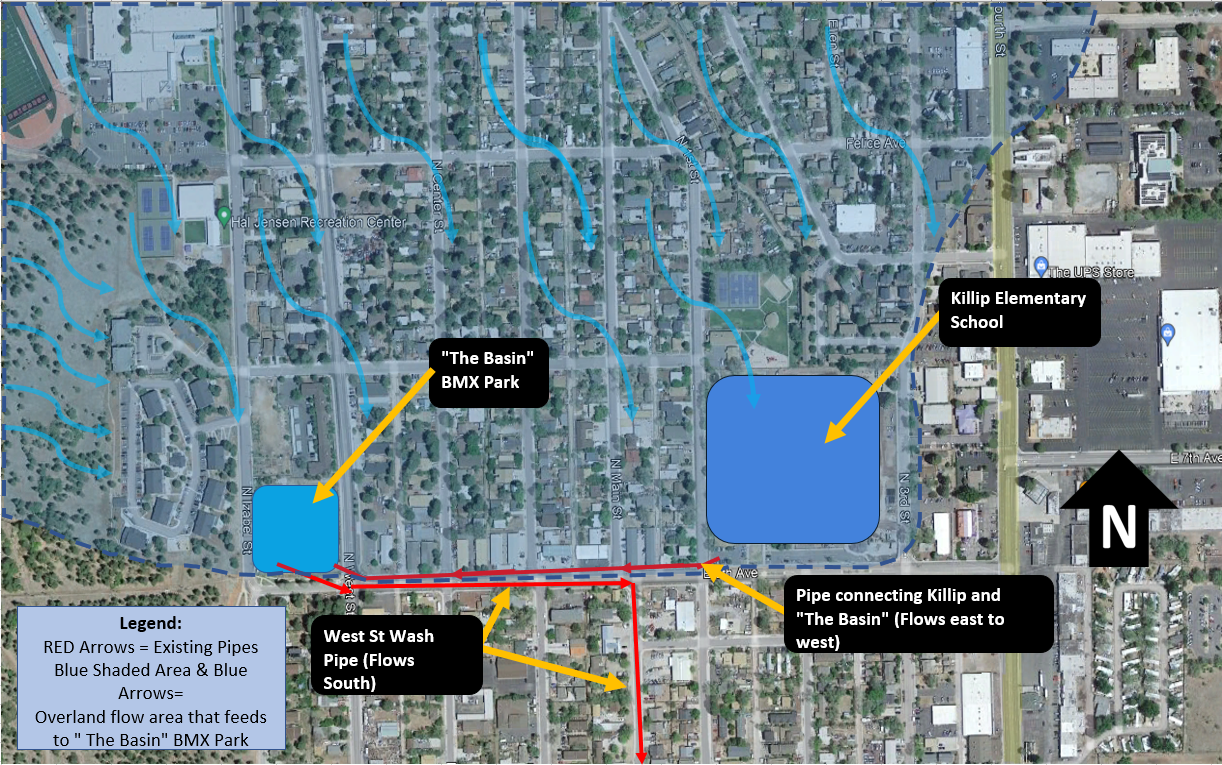

Figure 3: Flow Paths at "The Basin" BMX Park

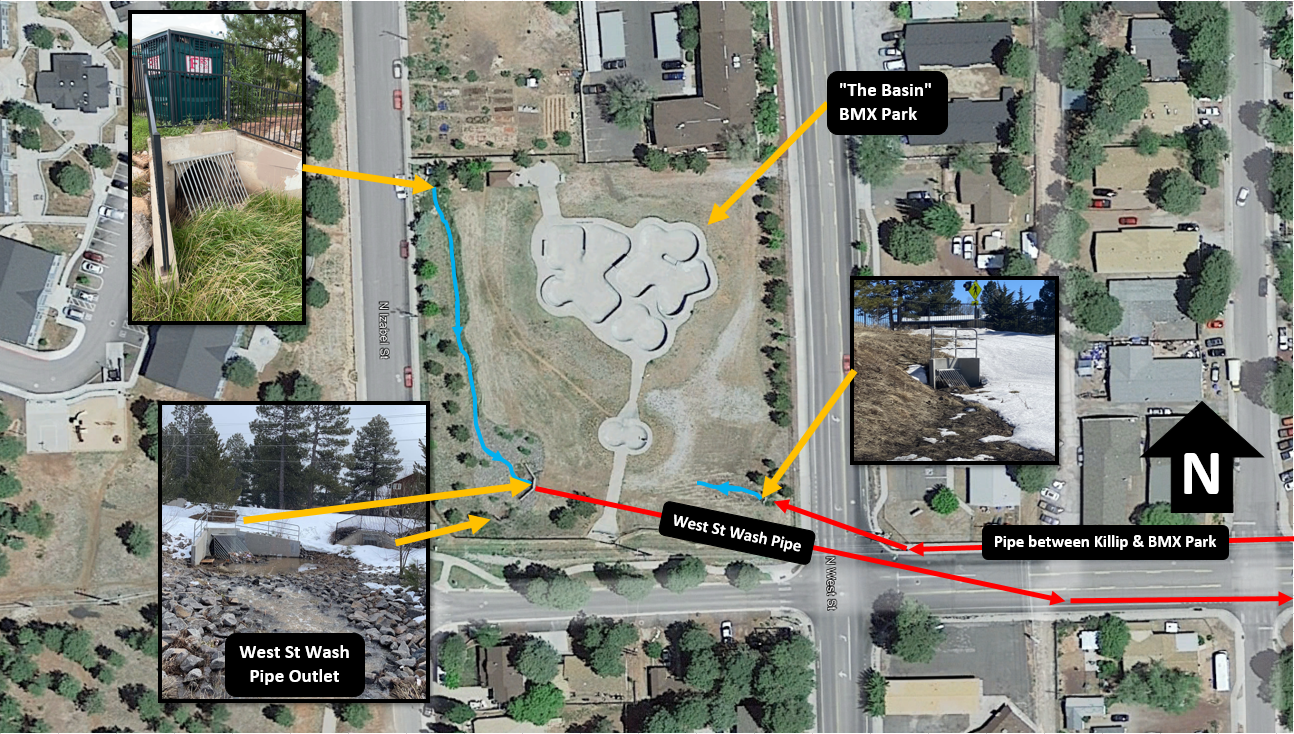

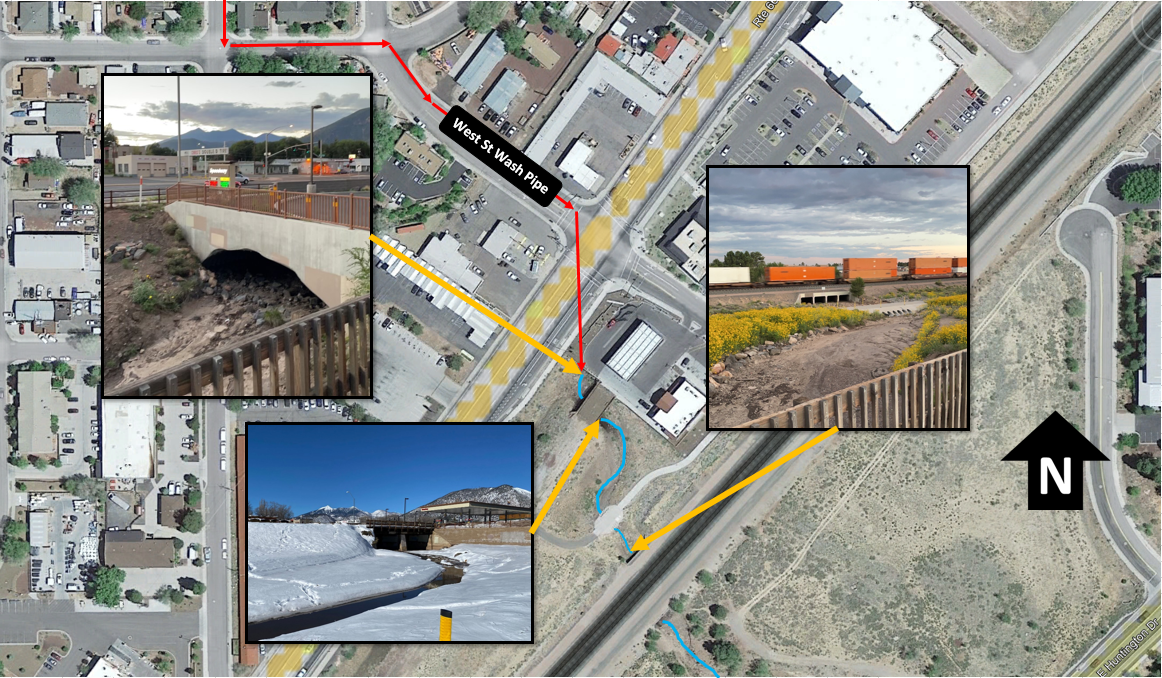

Figure 4: West Street Wash Pipe OutletÂ
Figure 5: Details on Project Area Water Characteristics

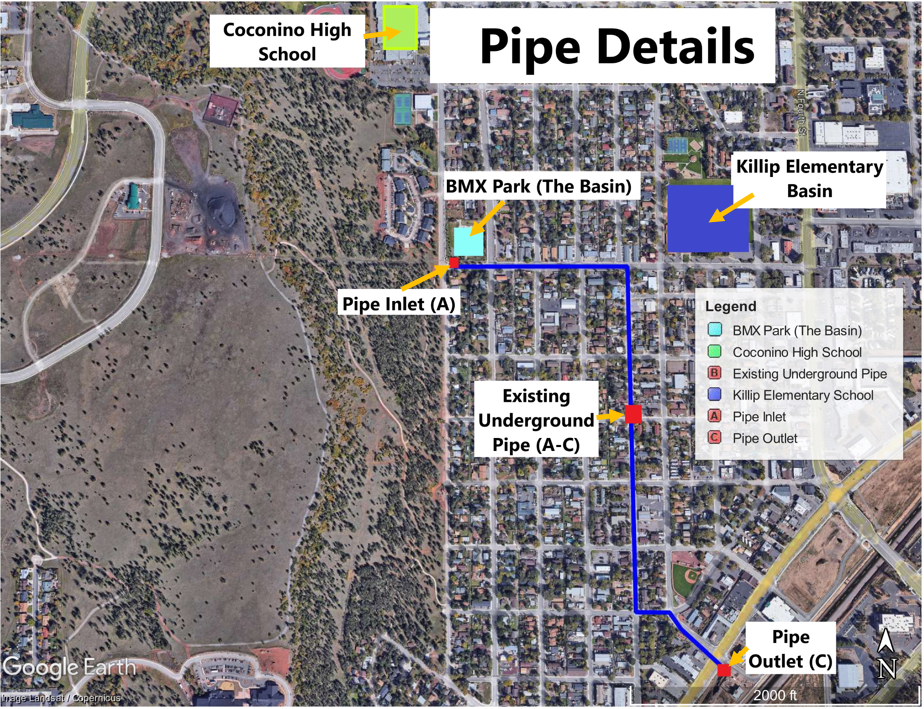

Figure 6: Stormwater Drainage System

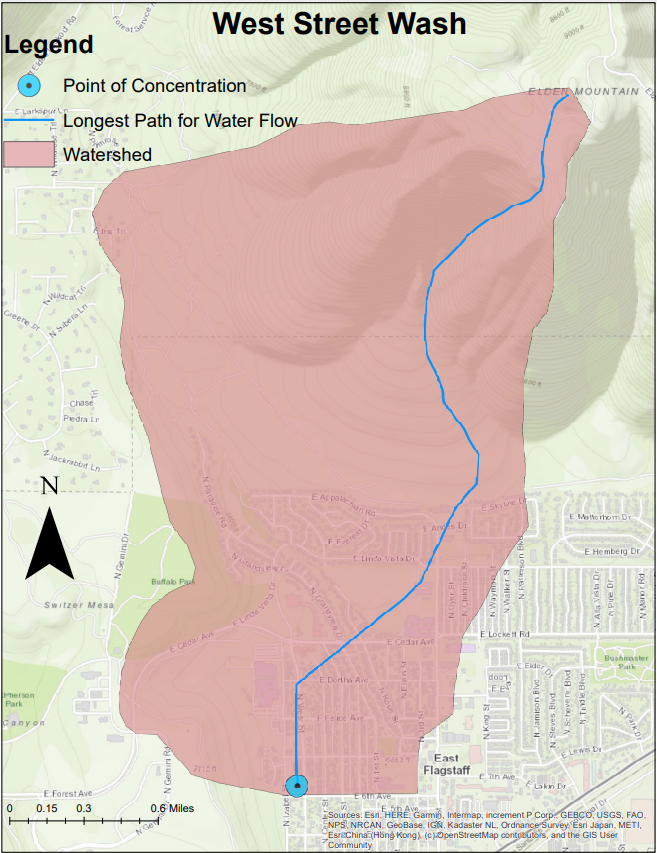

Figure 7: Watershed, Point of Concentration & Flow Path

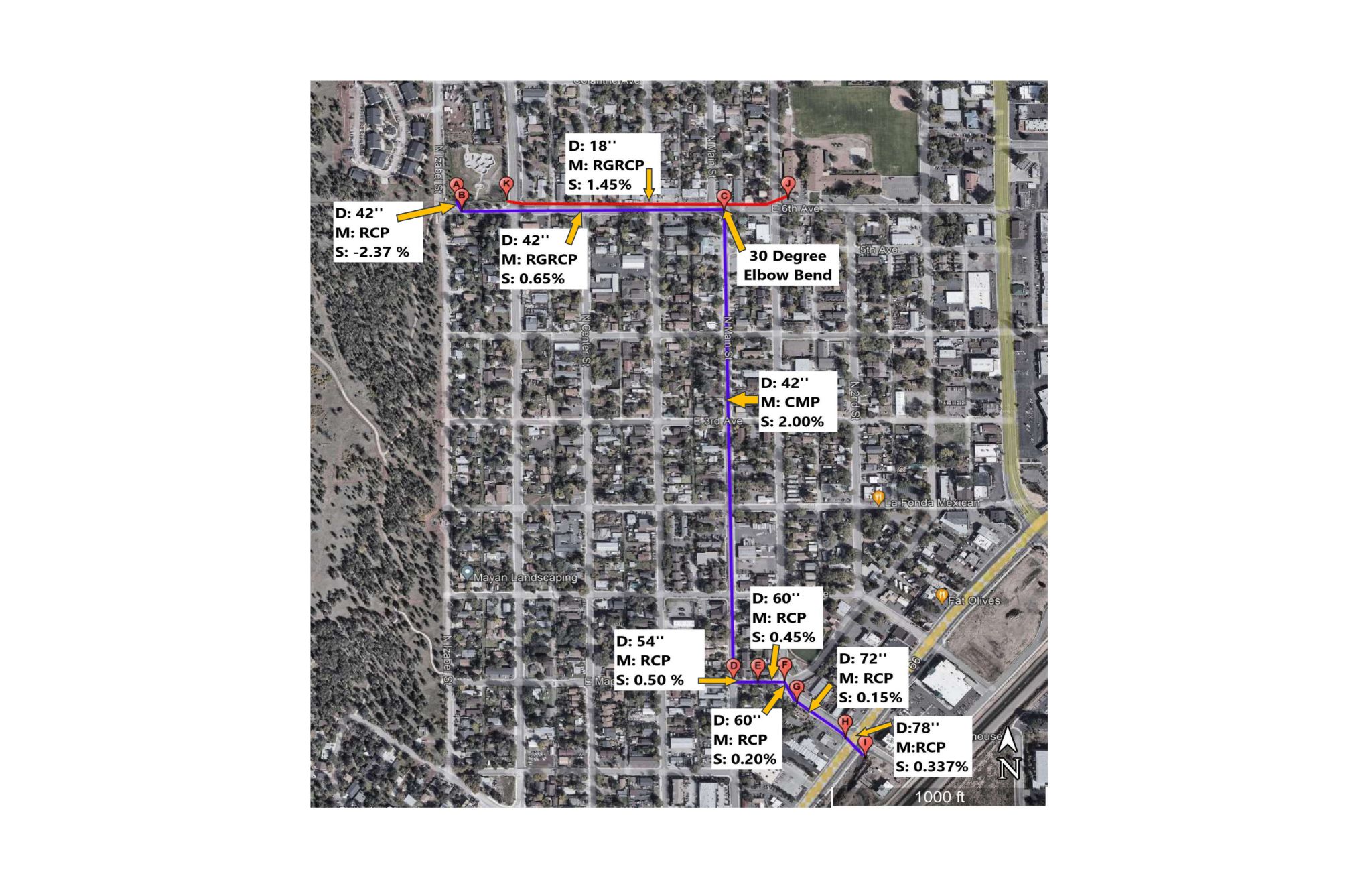

Figure 8: Pipe Flow Map

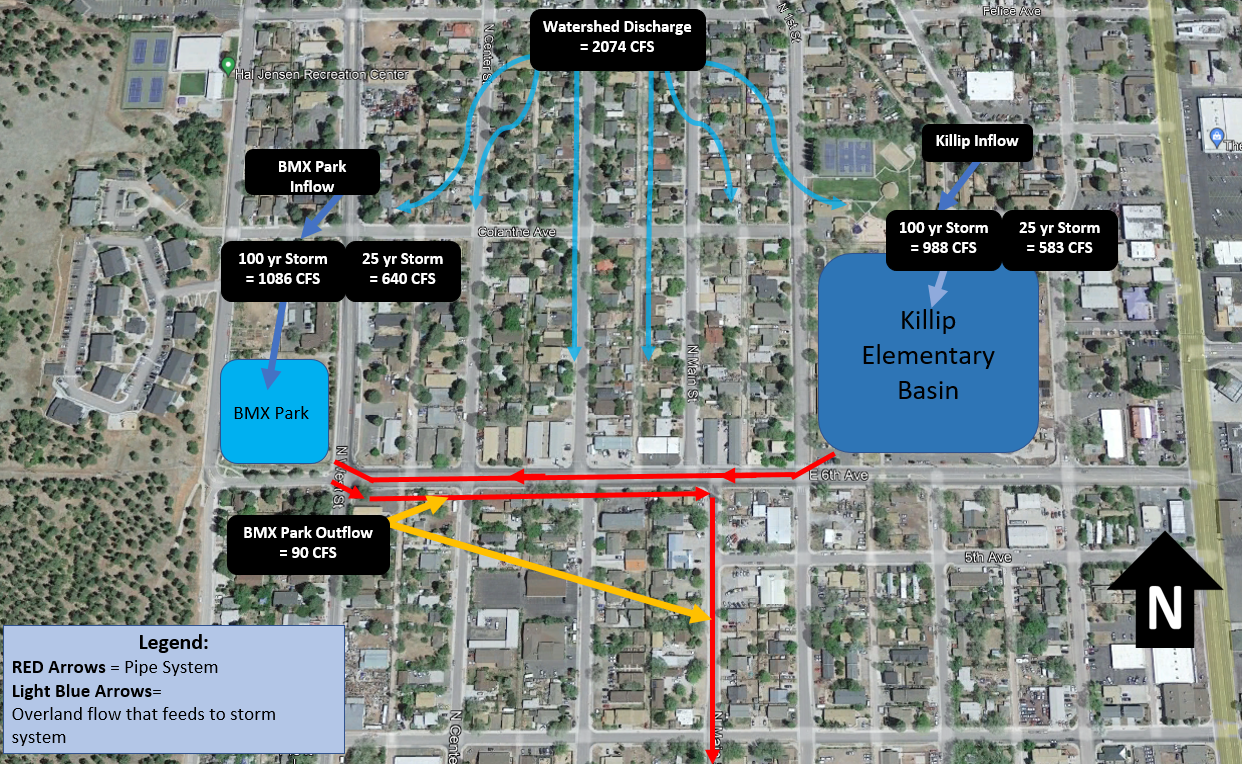

Figure 9: Watershed Discharge Details

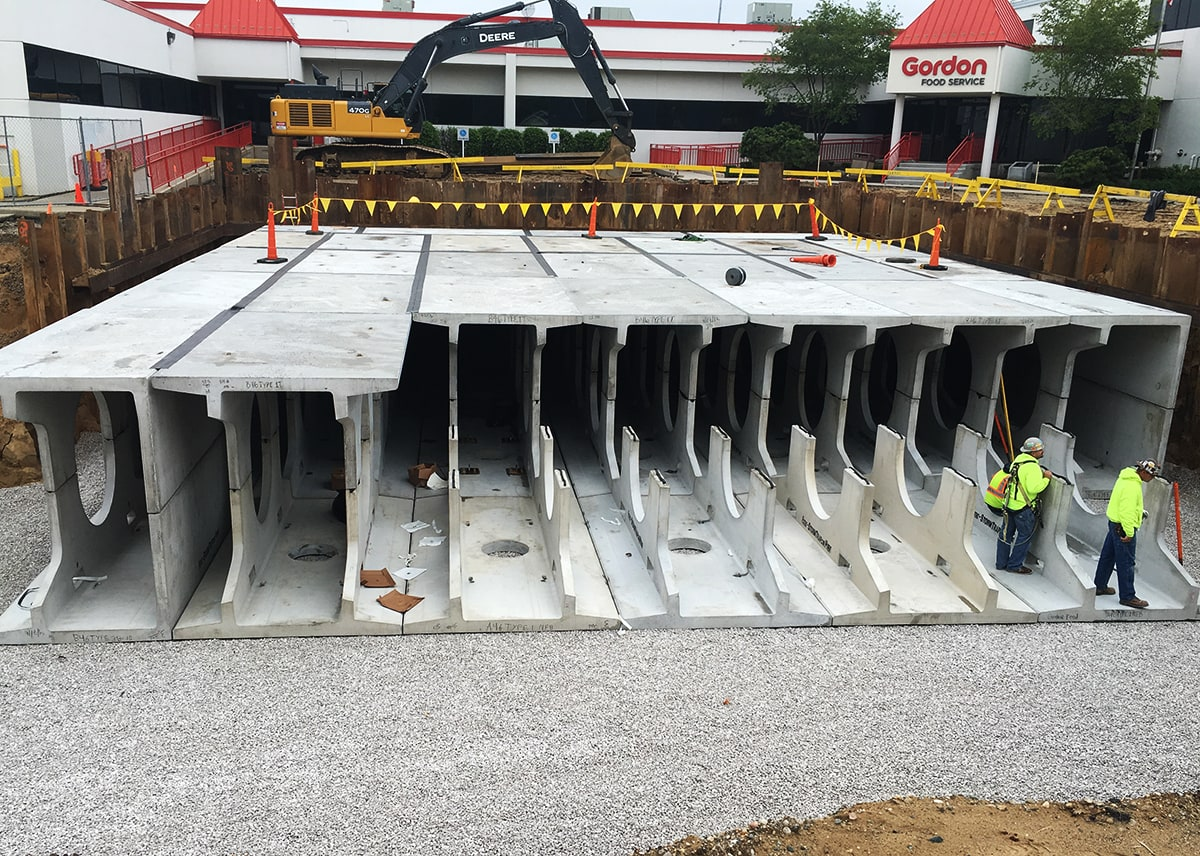

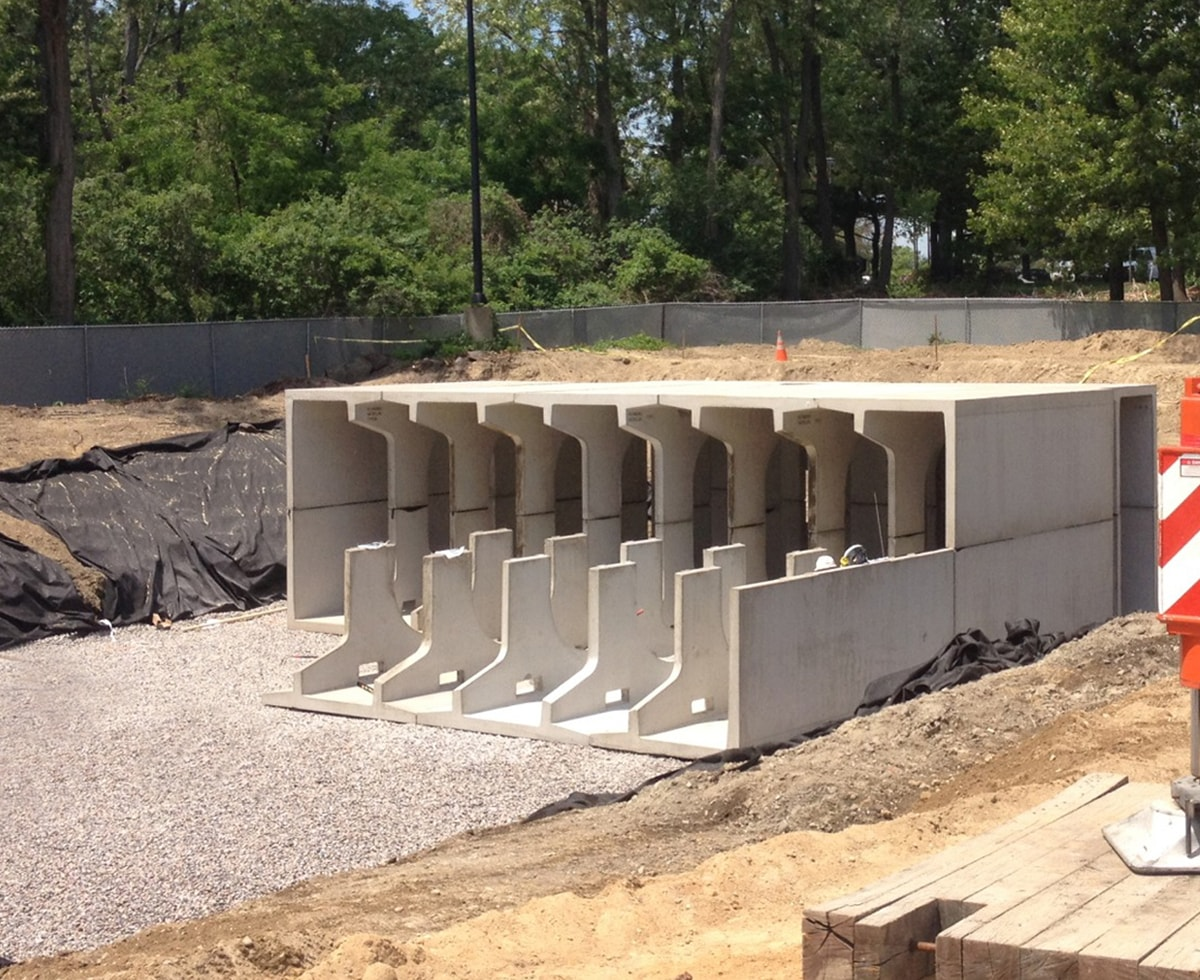

Figure 10: Retention DesignÂ
