Design Alternatives:

These are the designs considered for alternatives following our decision matrices.

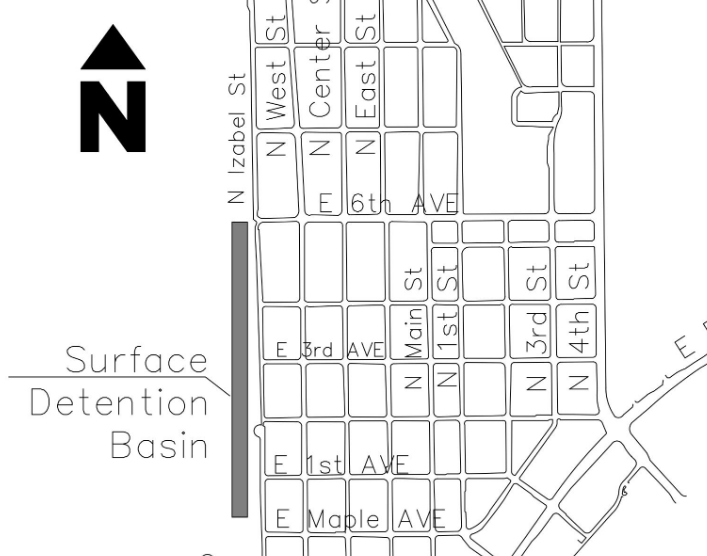

Alternative 1: Surface Retention or Detention basin

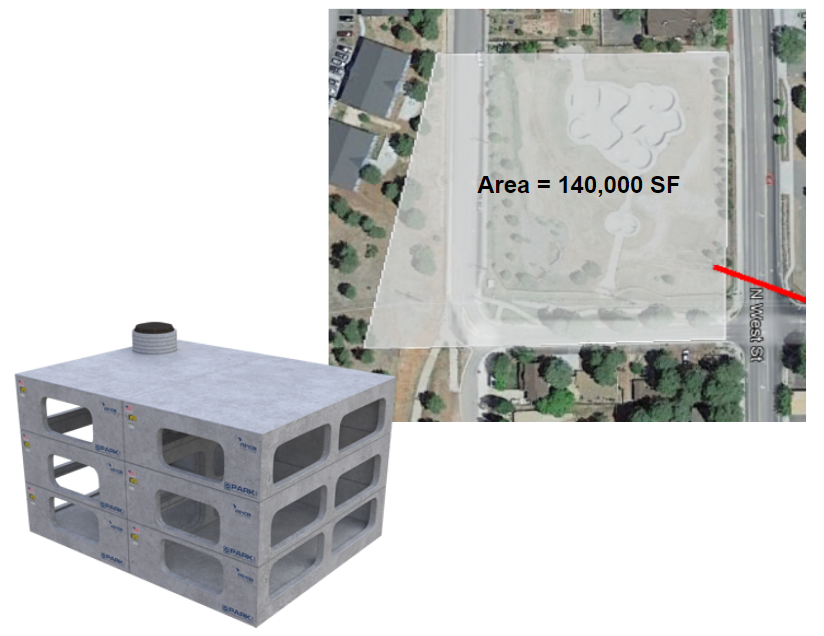

Alternative 2: Underground Retention system

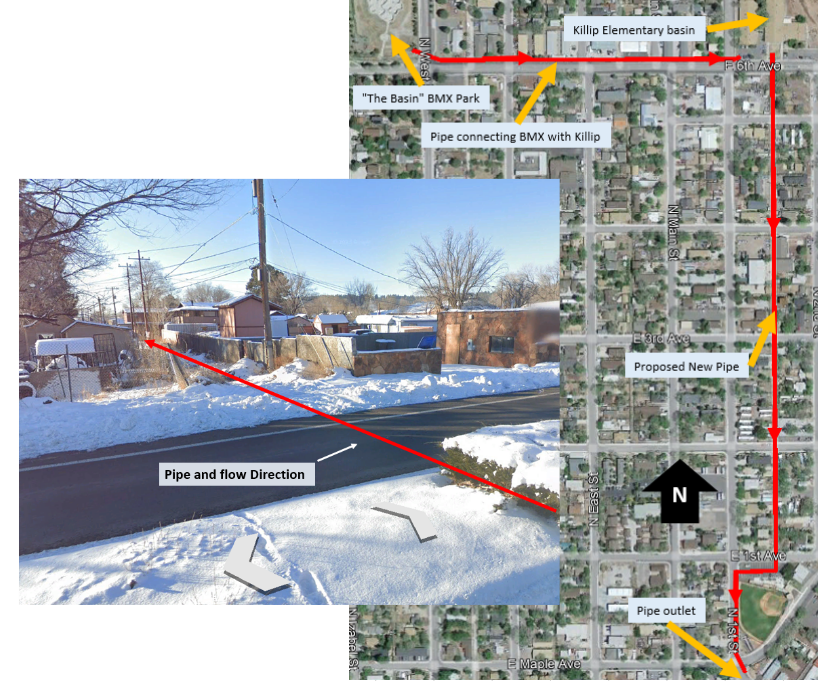

Alternative 3: New pipe exiting Killip Elementary basin

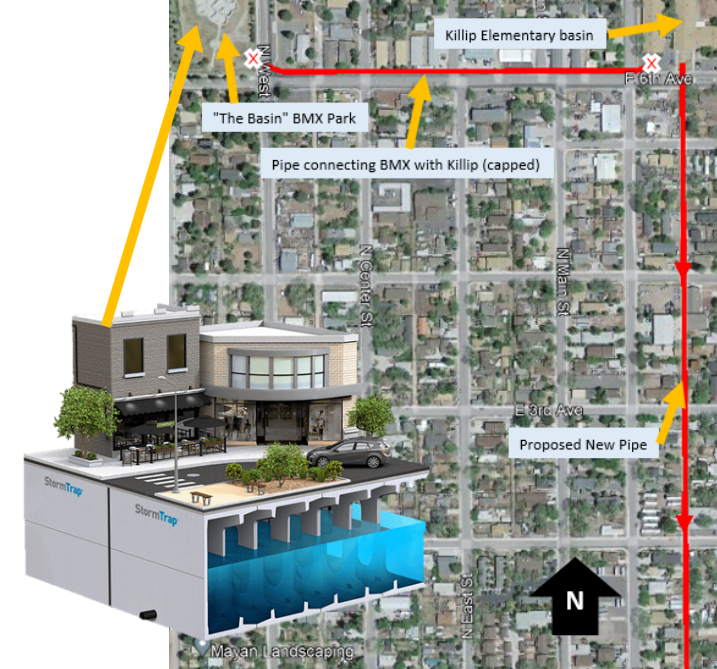

Alternative 4: Combining Underground retention with a new pipe at Killip Elementary

Decision Matrices:

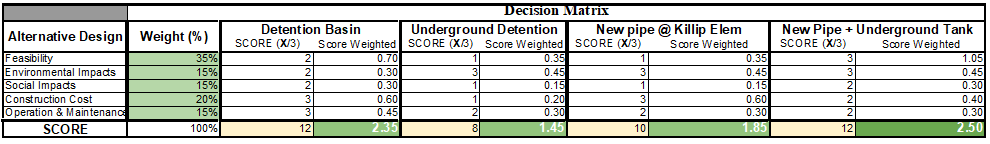

Below are the weighted scores for our alternative designs.

Final Design:

Final Design Plans

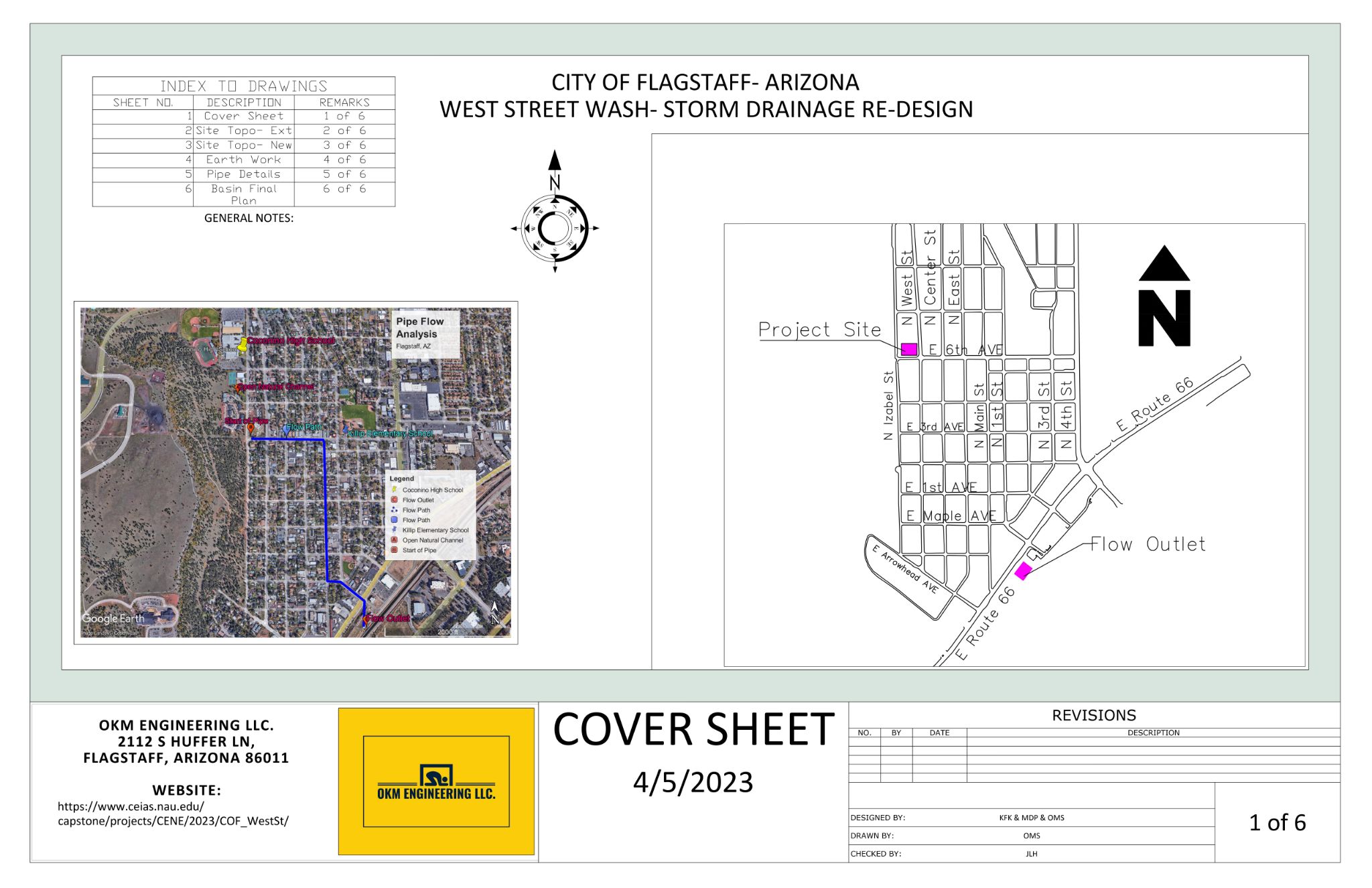

Cover Page

Cover Sheet including project area and location.

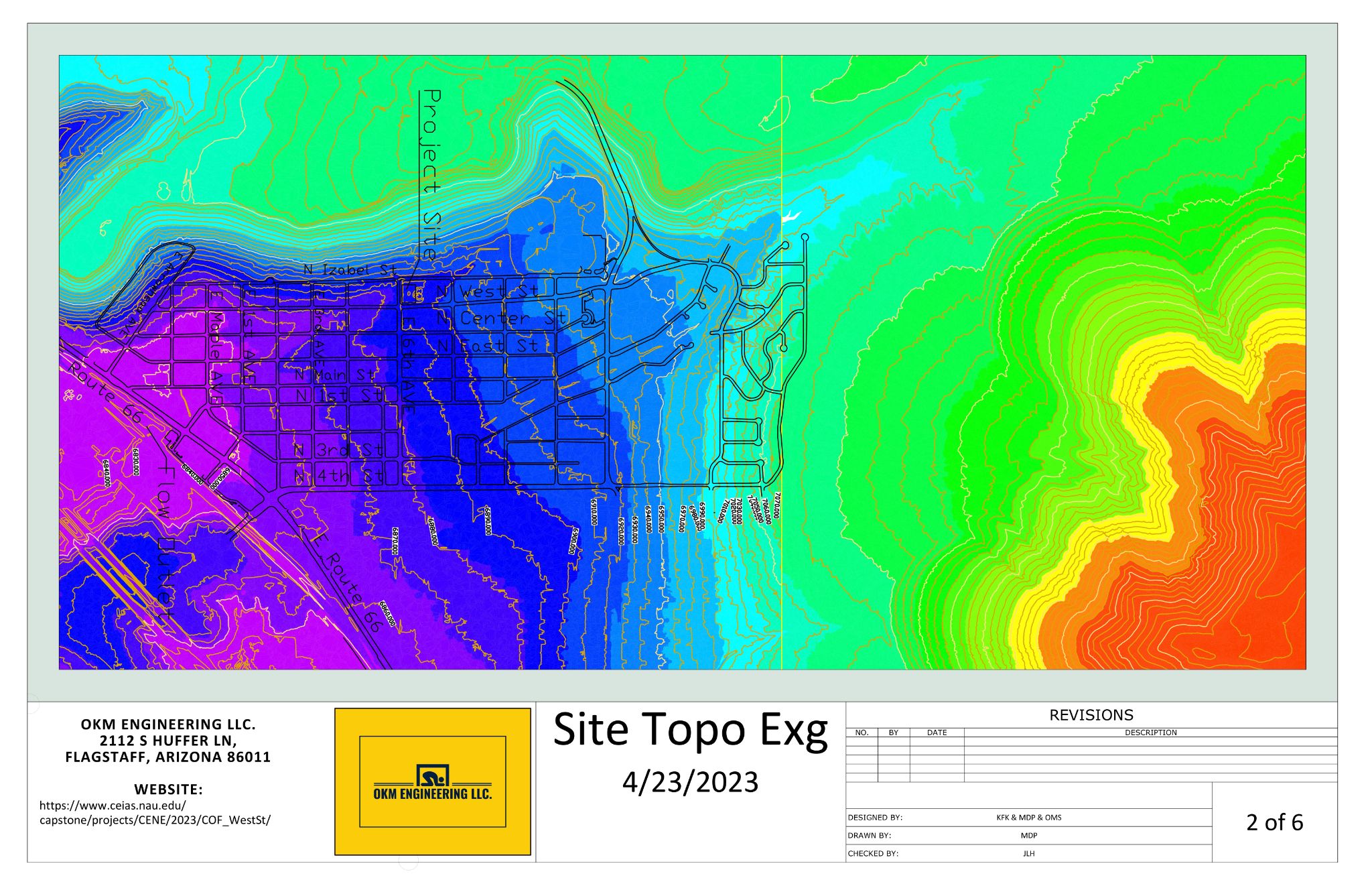

Site Topo- Existing

Site Topo map for the existing conditions of the project area.

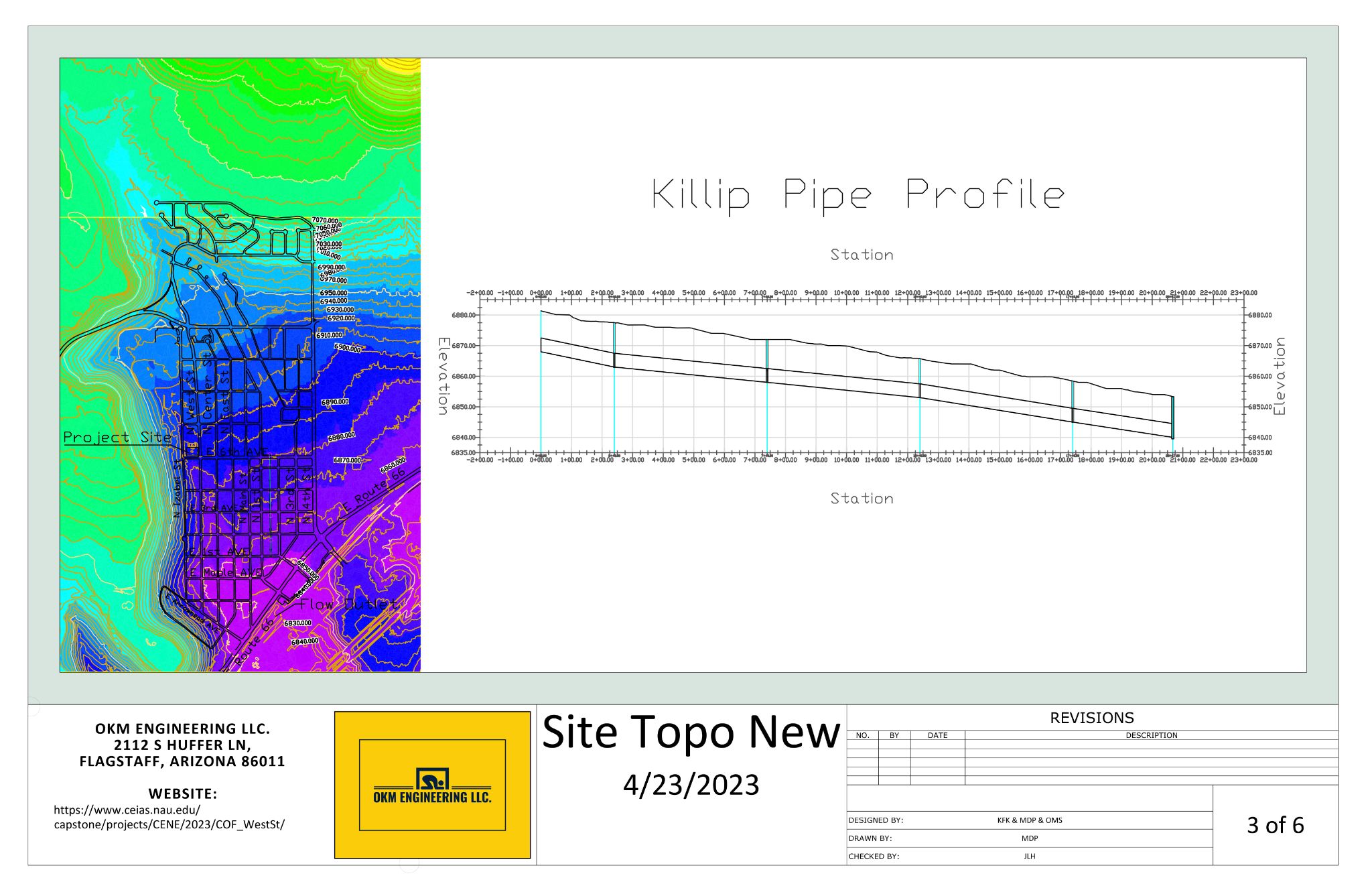

Site Topo- New Conditions

Site Topo map for the new conditions of the project area with new Pipe.

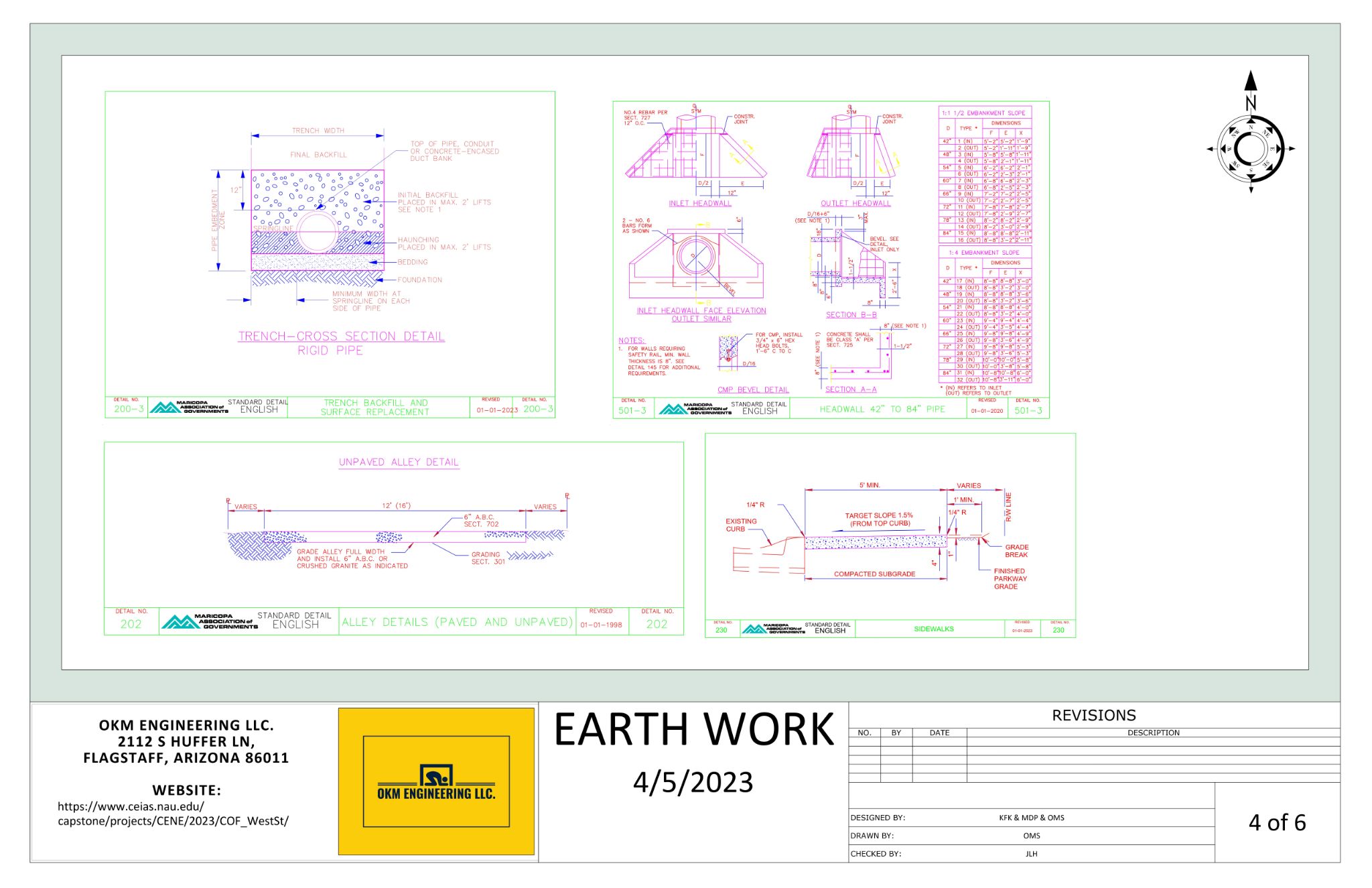

Earth Work

Earth Work plans for the project following MAG standards.

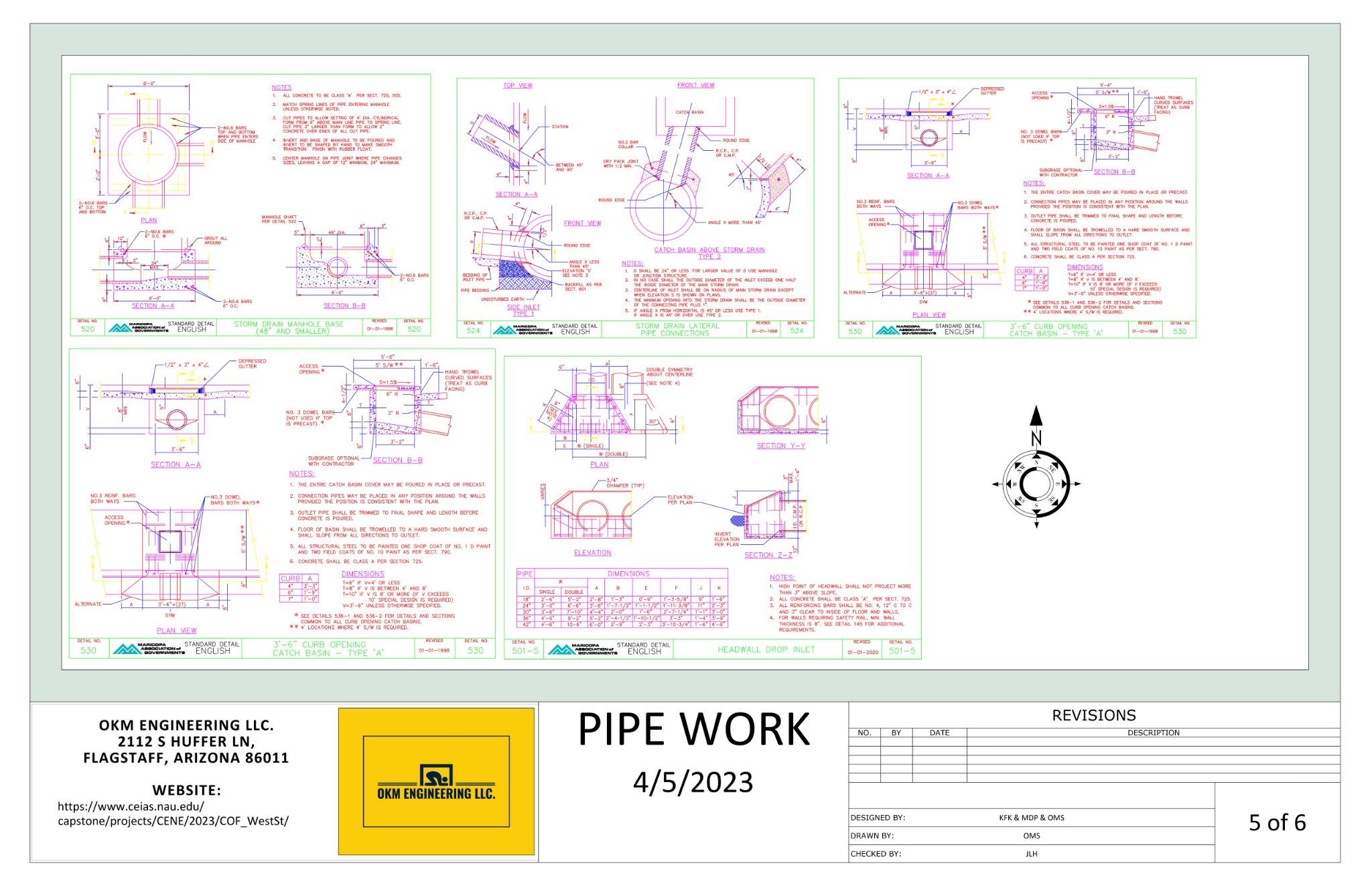

Pipe Work

Pipe Work plans for the project following MAG standards.

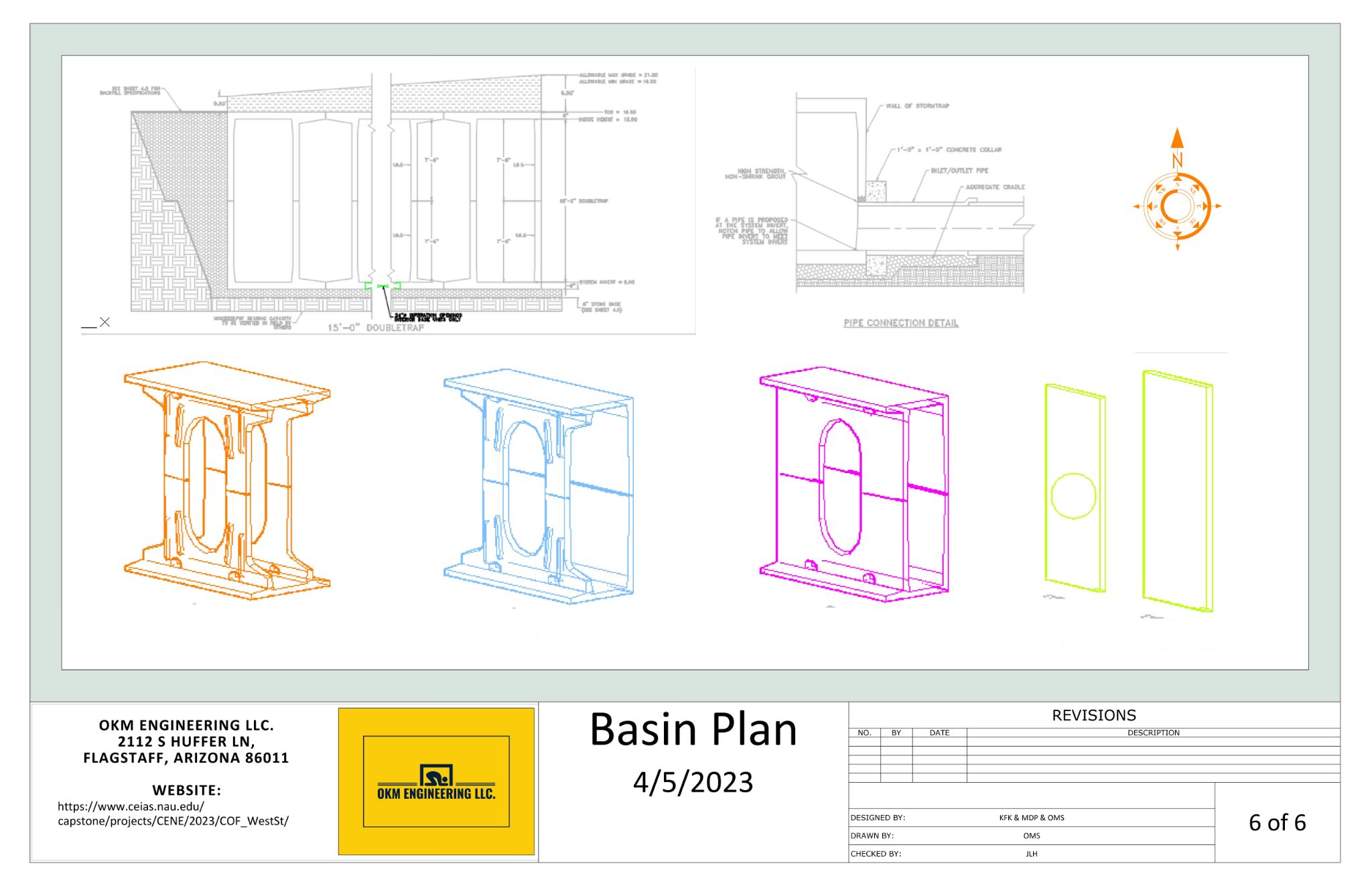

Basin Plan

BMX Park Basin construction plans.
