Project Information

Project Details

The following links will show you more about our teams design alternatives, how we created our design matrices, and further detail of the final design.

Design Alternatives

Each Team member worked on different designs that fit the design criteria and will be considered as alternatives.

learn more

Decision Matrix

A decision matrix was created for each technology alternative using criteria given by the competition, this was used to determine the final design.

learn more

Final
Design

After finding the best design for the set criteria, the final design was implemented and drafted for the final presentation.

learn more

Schedule

The schedule expresses the critical path in red as the tasks that must be completed on time in order for successful project completion. The schedule is built on a 5 day work week and spring break is given as lag time within the project.

learn more

Staffing

The staff includes a senior engineer, engineer, engineer in training, a lab technician, and an intern. The rate for each position and the hours for the project are given in the table.

learn more

Cost of Engineering Service

The cost of the project includes the cost to pay all employees, the cost of travel for the site visit and competition, and the cost of supplies which is the use of the computer labs for CAD.

learn more

The project requires the analysis and design the Cave Creek Water Reclamation Plant (CCWRP) facility for a community in Phoenix and Cave Creek, Arizona. The AZ Water Student Design Competition is an annual competition organized by the AZ Water Association and Water Environment Federation (WEF). This project includes analysis on the overall treatment process including pump selection, concentration calculations, hydraulic analysis, future population estimation, life cycle cost analysis, demand flow calculations, and design size calculations.

Project Location

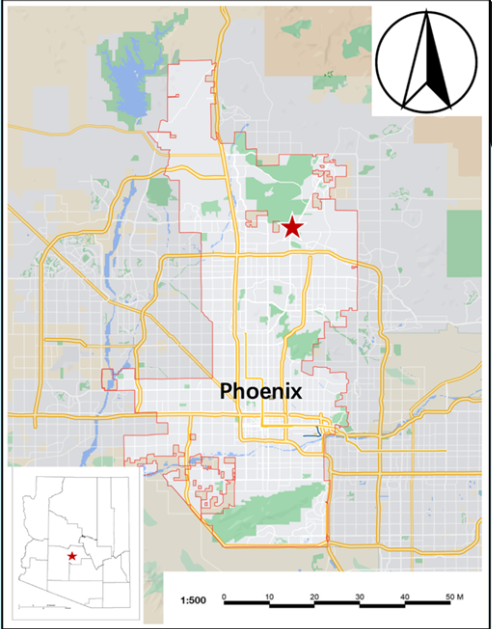

The project that was given to the team for the 2022 WEF competition is located in Cave Creek, Arizona. This city is found northeast of the state capitol Phoenix. The CCWRP, specifically, is located far south of the city to the Phoenix Sonoran Preserve being just west of the facility.

All tasks must be completed for this design competition can be found in the link below.

Constraints that were considered included regulations that are stated within the EPA such as The Clean Water Act (CWA), under Title 18 Environmental Quality Chapter 11: Department of Environmental Quality – Water Quality Standards Section R18-11-303 expresses the requirements needed for the treated water to b e classified as Class A+ reclaimed water.

When reviewing state and county regulations, the CCWRP permits are approved by AZNDES which is a department under AZDEQ.

Our team focuses on efficiency and organization in order to complete our project in the safest possible way. One of the main aspects to organizing our project and introducing the schedule to our client is establishing a Gantt Chart.

Gantt Chart Found Here
