Project Location
Our project is located in Flagstaff, AZ on Northern Arizona University Campus. It is located on North Campus. The red arrow in the figure below shows where the project is in Flagstaff.

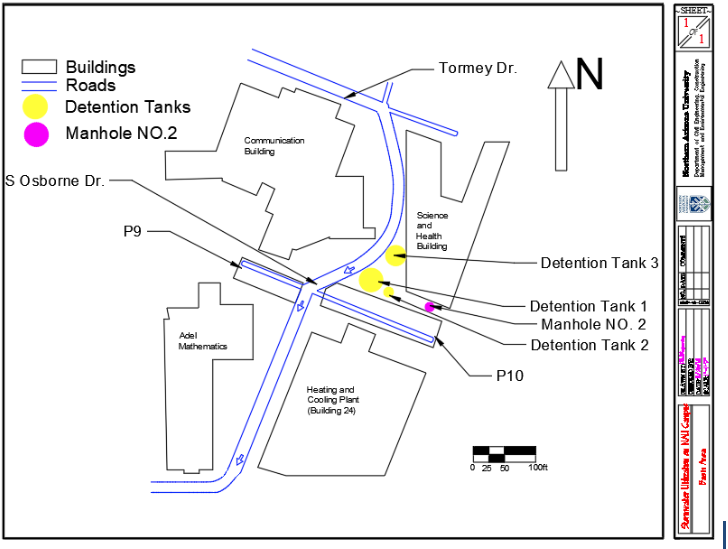

More specifically the project focuses on the detention tanks located near the Science and Health Building (SHB) and the Heating and Cooling Plant located on North Campus of NAU. The three underground detention tanks are shown in the Figure below in yellow, next to the Science and Health Building. The figure also shows the orientation of the project with nearby streets and surrounding buildings identified.
Project Constraints:
The client requested the material C-900 PVC for the piping to be used in the project. To have a depth of 3 feet of piping to be below ground surface. A water treatment system to be located in Room 144 of the Heating and Cooling Plant.

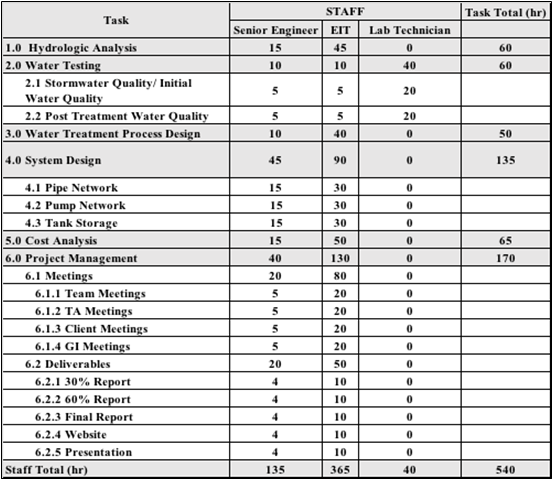

Tasks: The following table shows the tasks that are included in our Scope of Services along with the finish date and overall total hours it took to complete each task.
| Task Name | Duration (hours) | Finish Date |
|---|---|---|
| Task 1: Hydrologic Analysis | 60 | Sep.10 |
| Task 2 : Water Testing | 60 | |
| - Task 2.1: Stormwater Quality | Nov.9 | |
| - Task 2.2: Detention Tank Water Quality | Nov.9 | |
| Task 3: Water Treatment System Design | 50 | Nov.30 | Task 4: Hydraulic System Design | 135 |
| - Task 4.1: Pipe Network | Nov.20 | |
| - Task 4.2: Pump Selection | Nov.30 | |
| - Task 4.3: Tank/Storage | Nov.20 | |
| Task 5: Cost Analysis | 65 | Dec.3 |
| Task 6: Project Management | 170 | Dec. 6 |

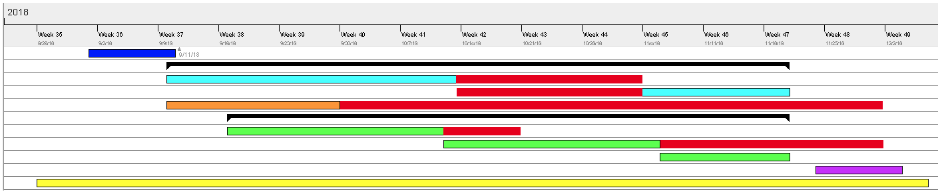

Project Schedule -
Link to image of Project Schedule
