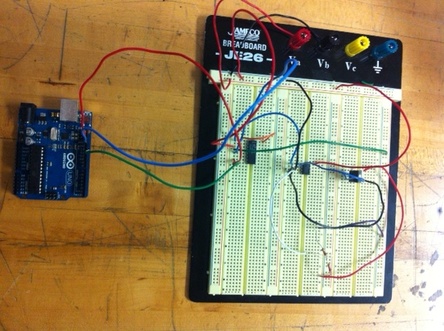

Some very early prototypes have been developed. Below is a bread boarded prototype of the potentiostat, hooked up to the Arduino.

The circuitry, which will be mounted on a PCB, consists of 4 ADCs and DACs for the different channels of the potentiostat. The Arduino then takes the information from the 4 different channels and transmits them to the computer. The computer runs a program we helped develop that can show the user a variety of different information the Arduino has sampled.

Given our current level of the non-disclosure agreement we made with ARBsoure, we can not display the PSPICE diagram that we used to model the potentiostat circuit shown above.

Last Updated 4/19/2014
