Operating Frequencies:

2300 GHz- 2500 GHz

Channel:

#1, 2, 3, 4, 5, 6, 7, 8

DC Voltage:

9 V- 12 V

RF power:

N/A

Minimum required voltage:

9 V

Battery power:

12 V/ 300 mA

Video distortion:

3%

Sensitivity:

-92 dBm

Video Format:

PAL, NTSC

Current Consumption:

280 mA / 9 V

Antenna:

Recommended high gain, omni directional ant.

Antenna Connector:

SMA

Impedance:

50 ohms

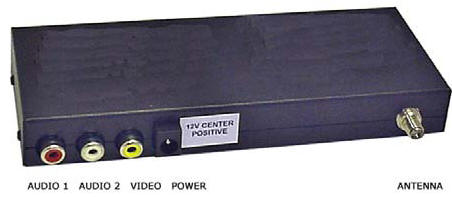

Video output Connector:

RCA F

Video Impedance:

75 ohms

Two Audio outputs:

300 mV per channel

Carrier frequencies for audio channels:

6 MHz and 6.5 MHz

Temperature Range:

-25 +65* C

Dimensions:

2.5" X 5.7" X 0.8"

Weight:

200 grams

Demodulation:

WFM
