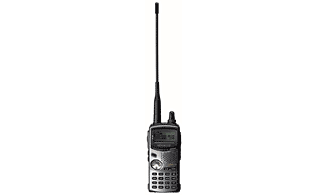

Kenwood TH-D7 Transceiver
144/430 MHz operation
5.5 WATTS @ 13.6 Volts
Built-in 1200/9600 baud TNC
Built-in APRS(TM) operating software
Dual RX on the same band for voice and data (VHF only)
Large 12 digit x 3 line dot matrix display
200 memory channels w/ 8 character display
PC Programmable for frequency and name (PG-4W required)
16 backlit keys (laser cut from inside)
Built-in CTCSS encode and decode
MIL-SPEC 810C/D/E water resistant
10 channel DTMF telephone auto-patch memory
Monitor DX Clusters
TM-V7A and TM-742AD DTMF Remote Control
VC-H1 Visual Communicator advanced control operation
Uses the same accessories as the TH-G71A
