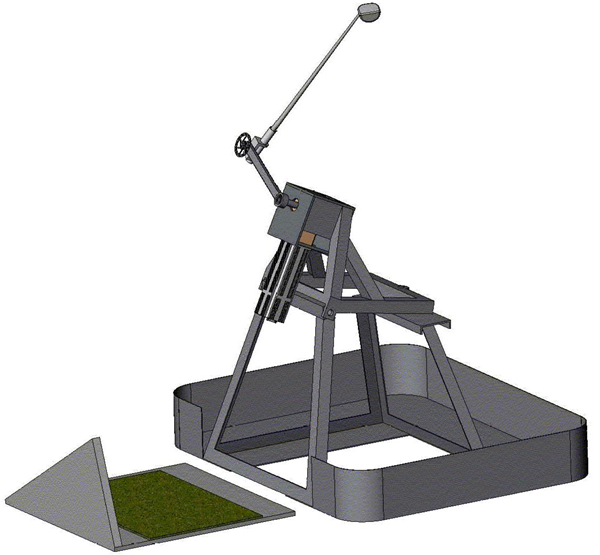

We are required to design, Implement, and Assemble an EE subsystem of the Golf Club testing Machine. This subsystem is capable of reading and collecting data from the Launch Monitor, Reading/ Writing data from the controller. The encoder is monitored by the controller. A visual Basic GUI is to be implemented to interface with both of the controller and the launch monitor software. Speed and efficiency of collecting data is a primary goal of this design. The connection between the hardware and the computer must be designed in a strategy that goes with specifications of the purchased hardware.

The following documents offer more insight.
Design Process - MS Word [ 32 KB ]
Problems Encountered - MS Word [ 32 KB ]
