The final design chosen from the decision matrix was altered to meet the City of Flagstaff Stormwater Code and Regulations.
When
April 2023
Who
Sydney Wilson, Carleigh Jones, Shanya Whitehorse
FINAL DESIGN A series of bioswales were designed to start on the southside end of the easement access road and extend 340 ft down towards the cul de sac on E. Appalachian road. There were check dams design to be put in place every 15 ft along the entire stretch of bioswales.

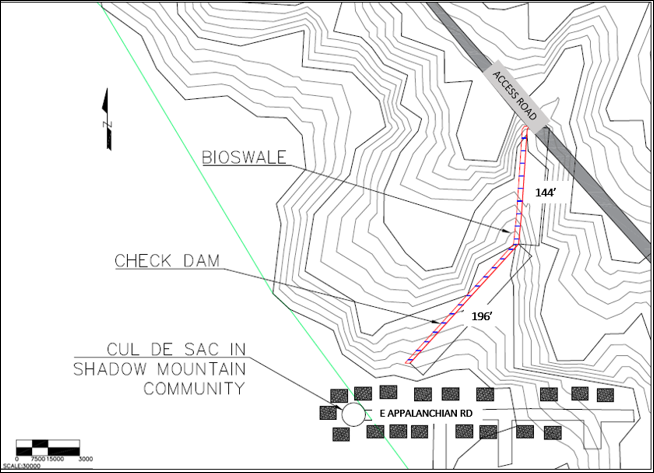

PLAN VIEW OF BIOSWALES WITH CHECK DAMS

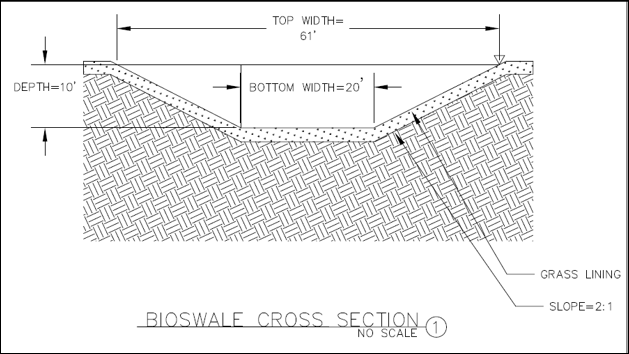

BIOSWALE CROSS SECTION DETAIL

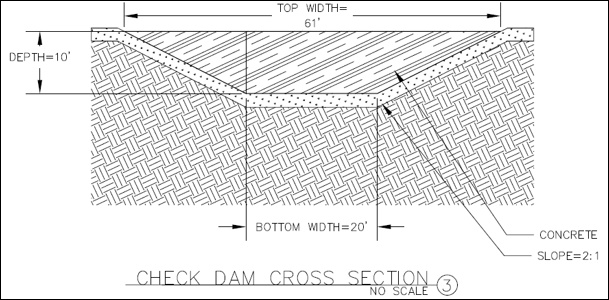

CHECK DAM DETAIL

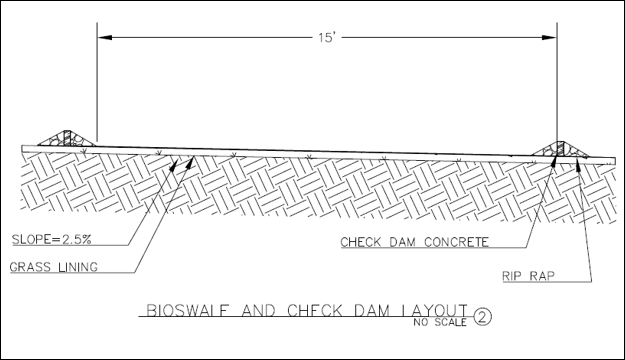

PROFILE VIEW OF BIOSWALES WITH CHECK DAMS
