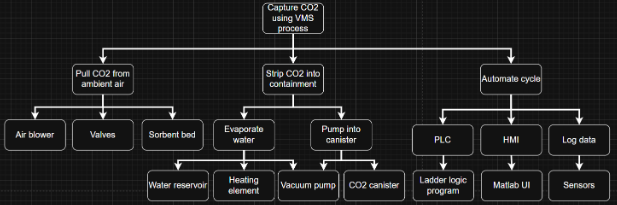

Fig. Functional decomposition of entire system

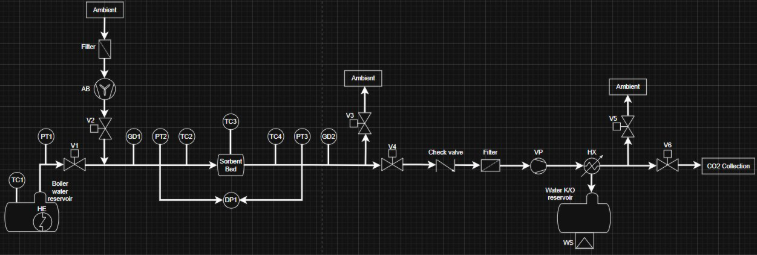

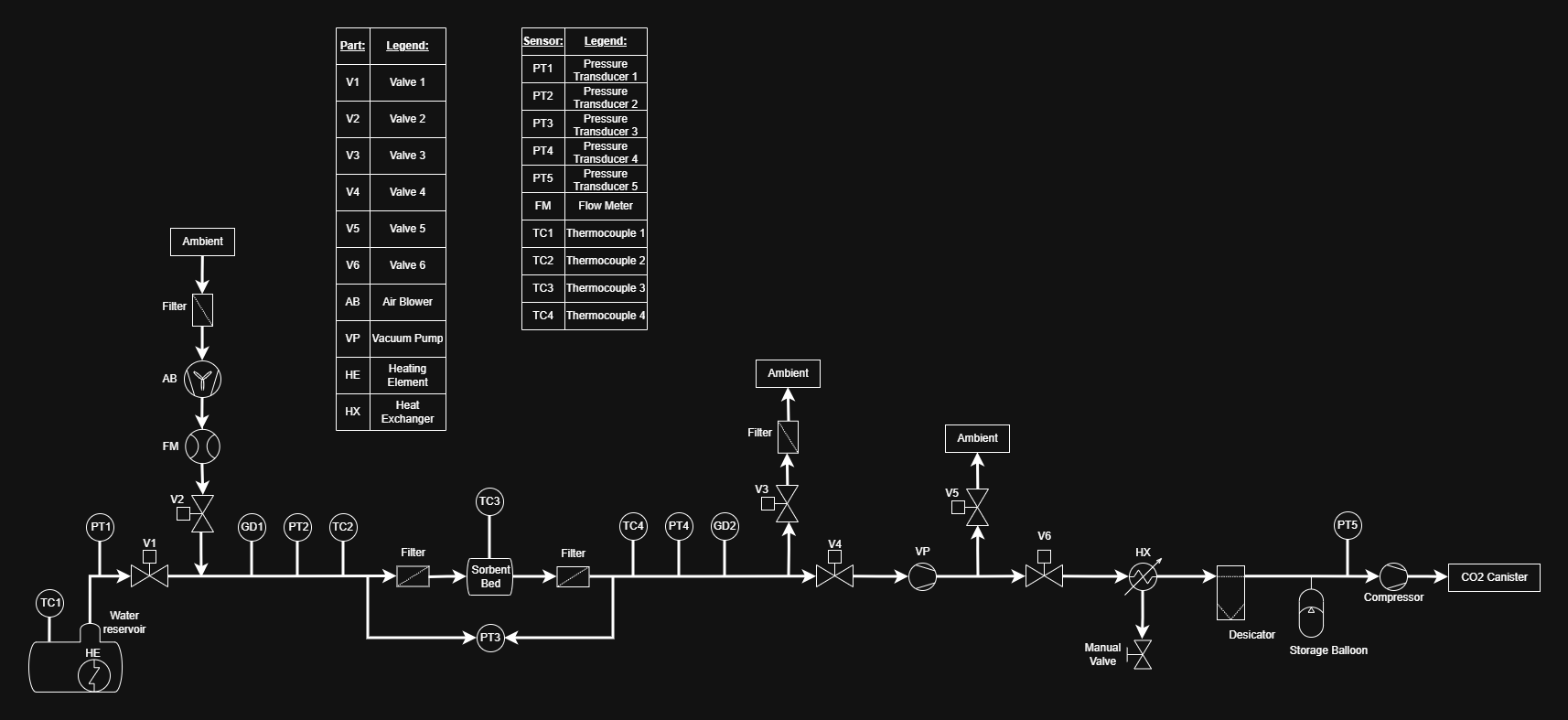

Fig. PID diagram

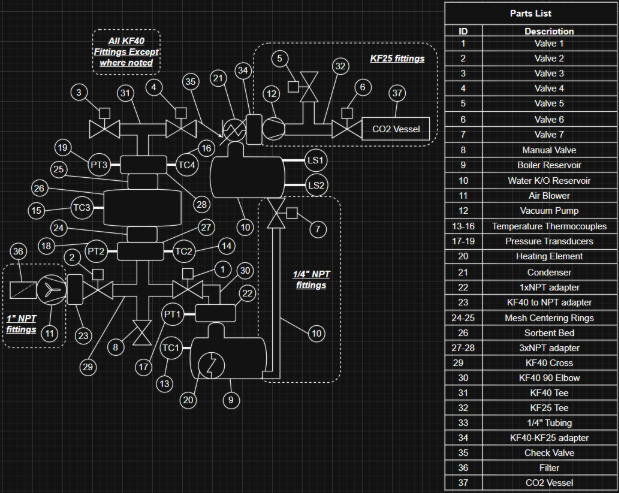

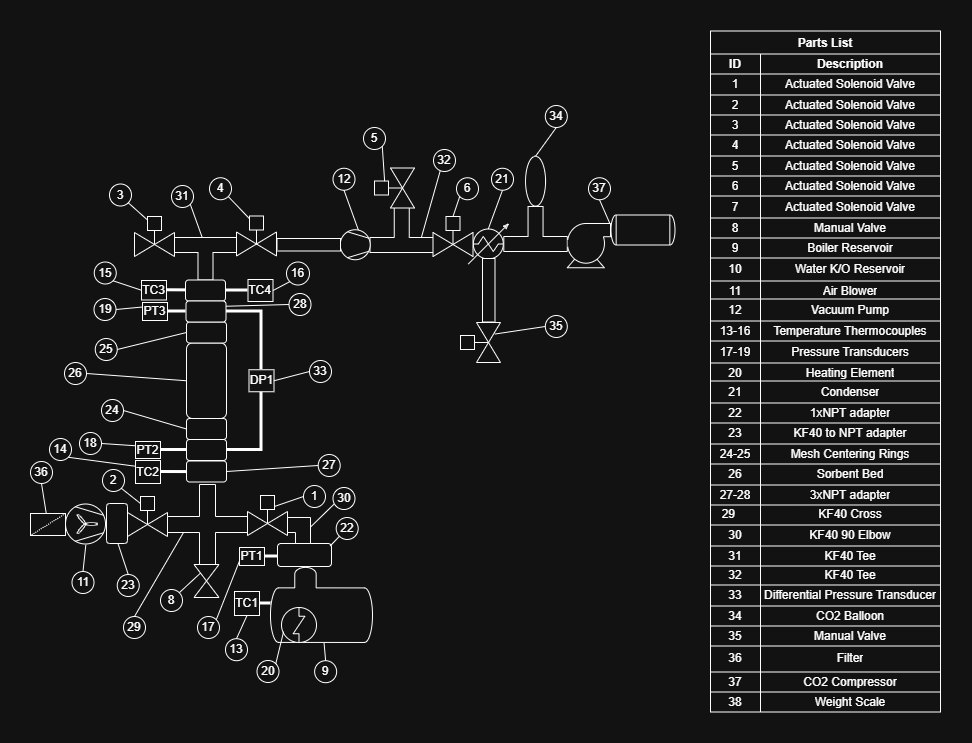

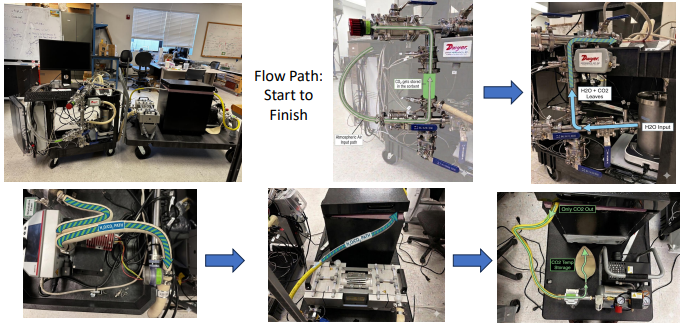

Fig. Physical diagram
Fig. Control Block Diagram

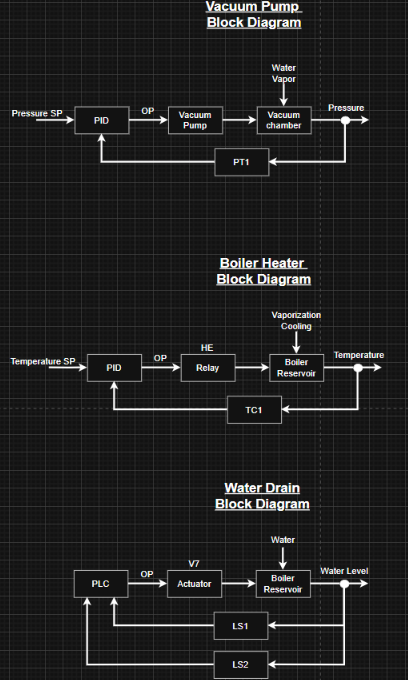

Fig. Subsystem block diagram

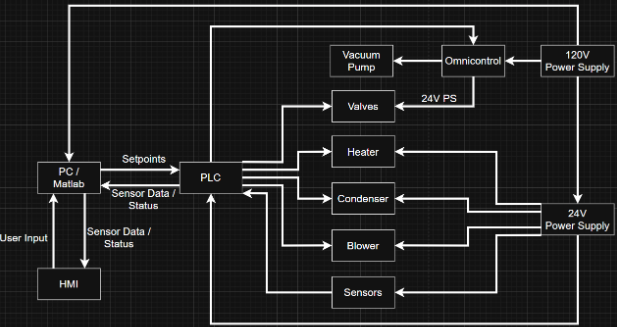

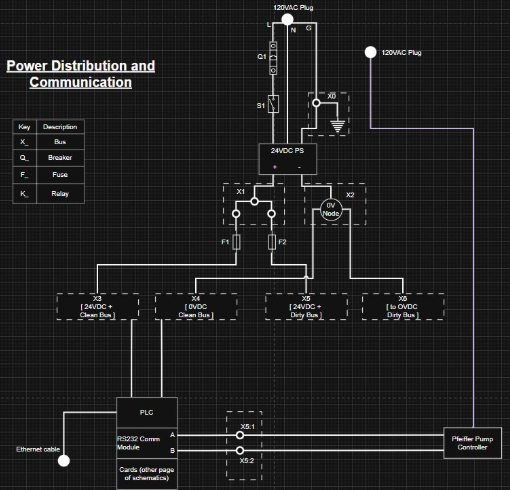

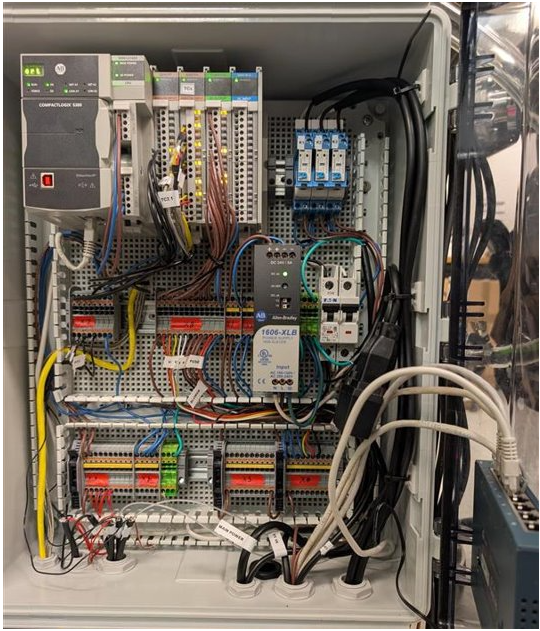

Fig. Power and control diagram

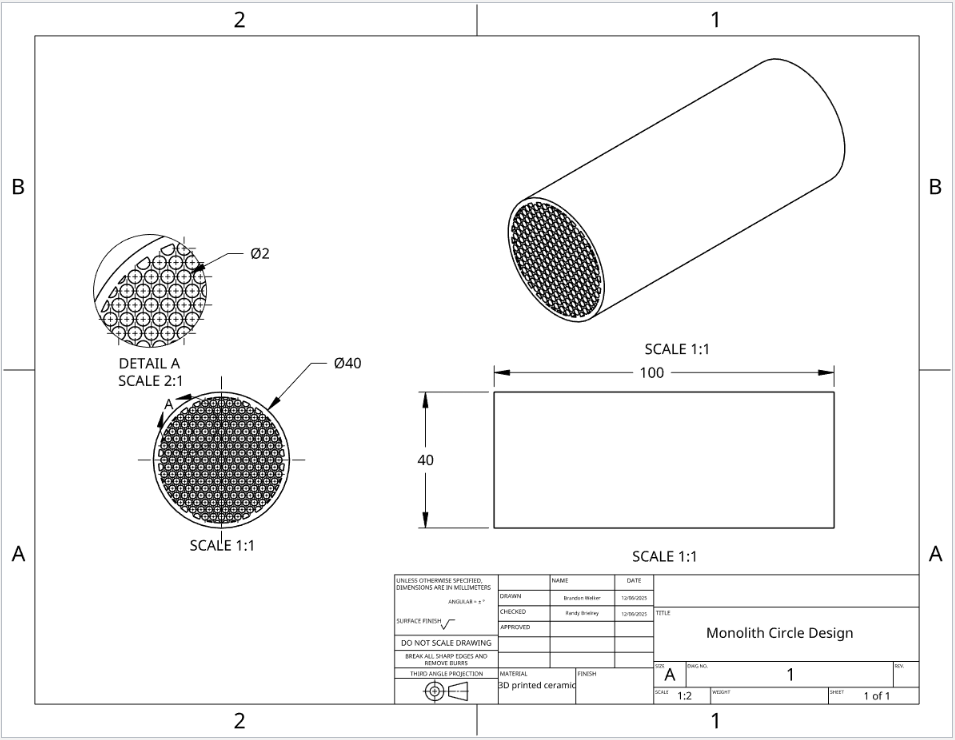

For our initial prototyping ANSYS fluent was used to model the behavior of water vapor as it passes through various sorbent structures. Various graphs and visuals from the data can be seen below. More information is available in report 2.

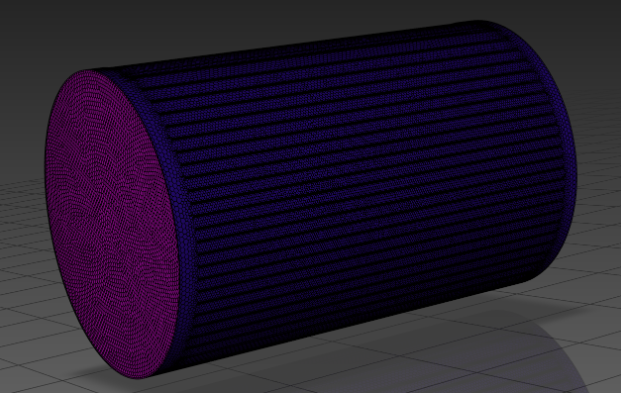

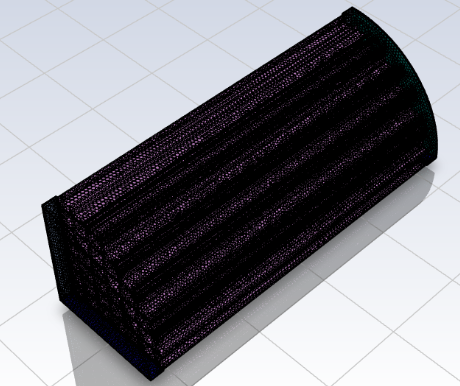

Fig. Quarter of monolith mesh and full laminate mesh

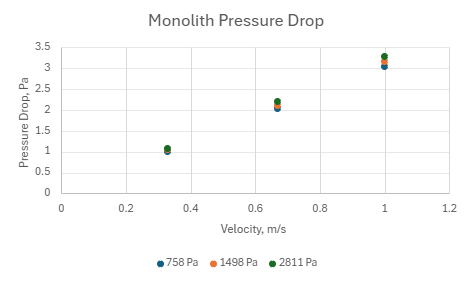

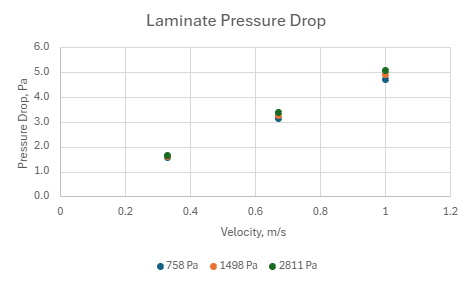

Fig. Pressure drop for monolith and laminate structures at various saturation pressures and velocities

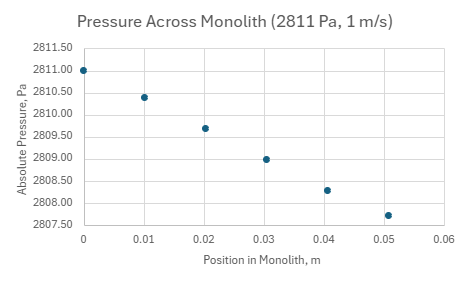

Fig. pressure drop across length of monolith

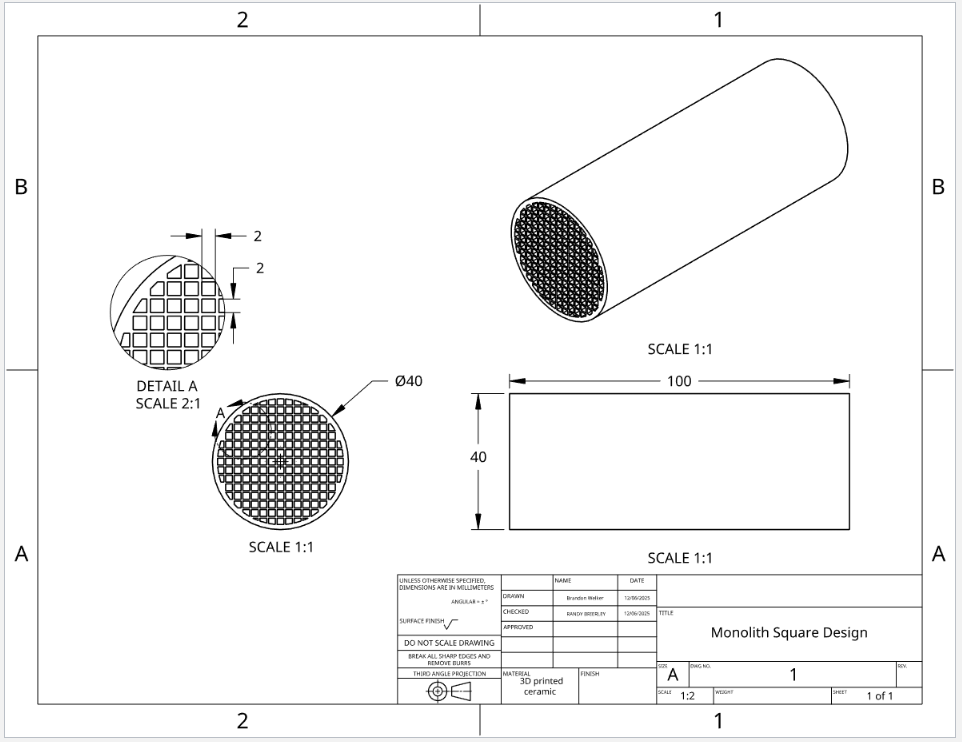

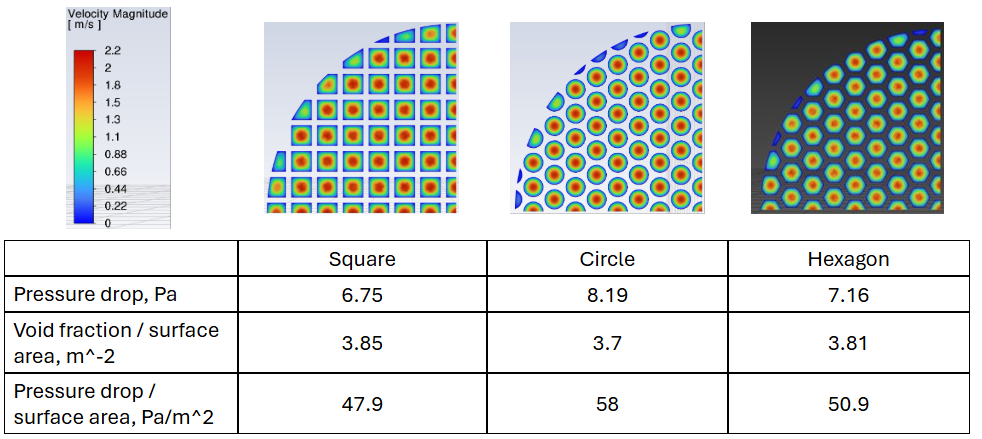

Fig. Comparison of channel geometry for monolith structure

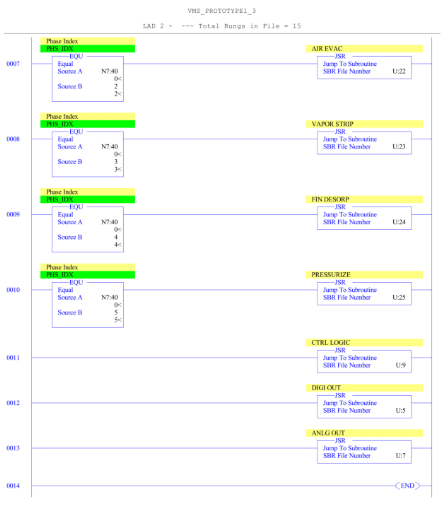

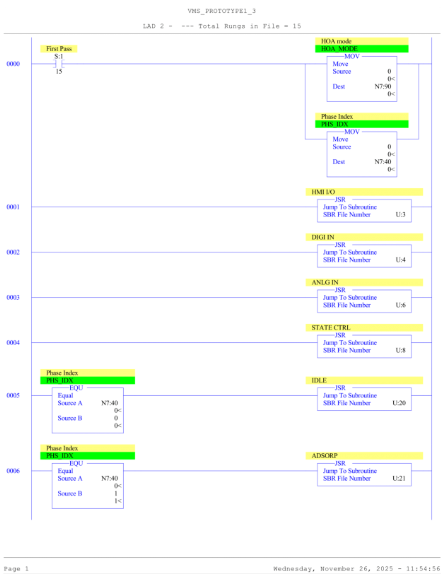

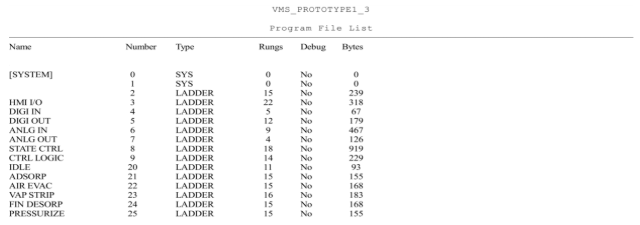

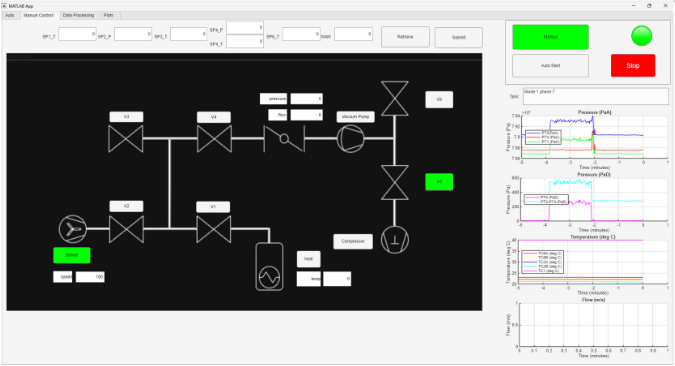

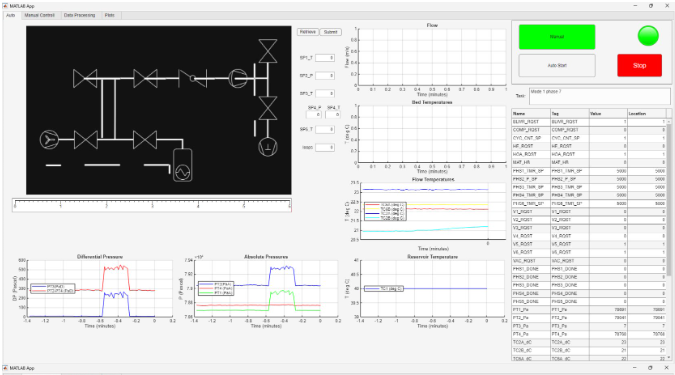

For our initial prototyping, we began to develop a PLC control loop to control the final apparatus. A summary of ladders and the first ladder may be seen below. More information is available in report 2.
