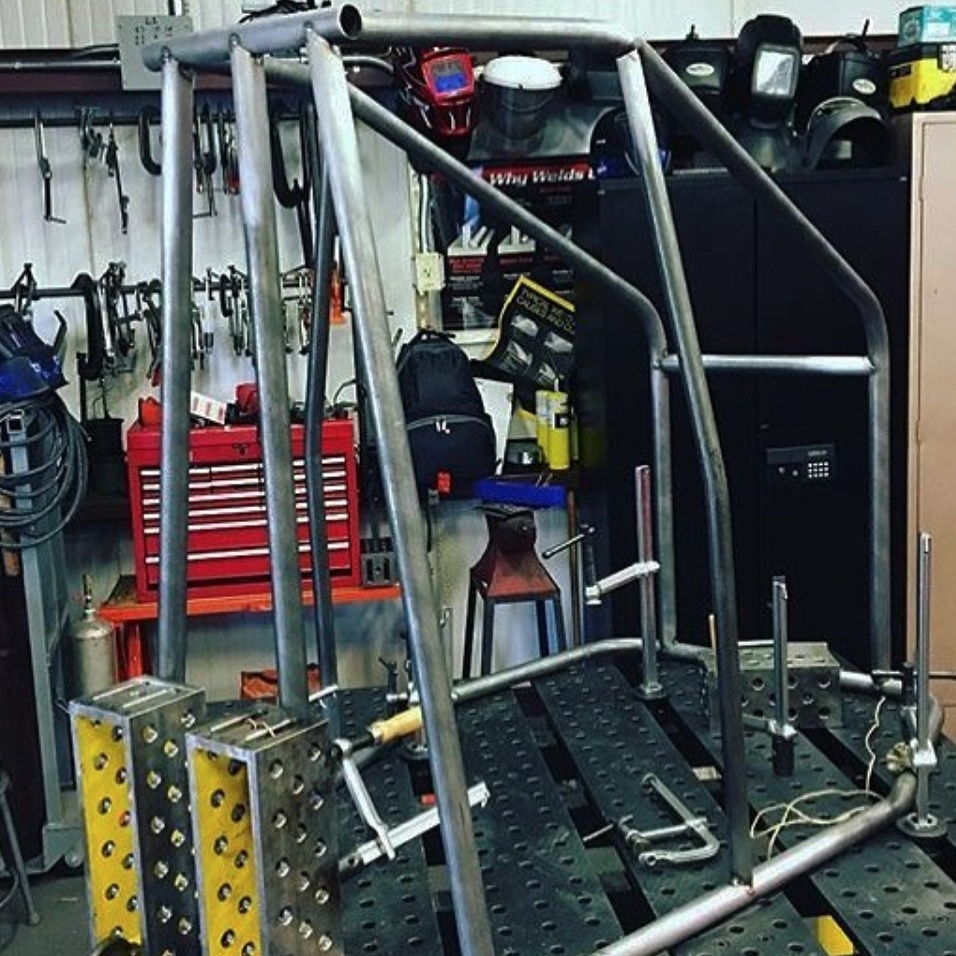

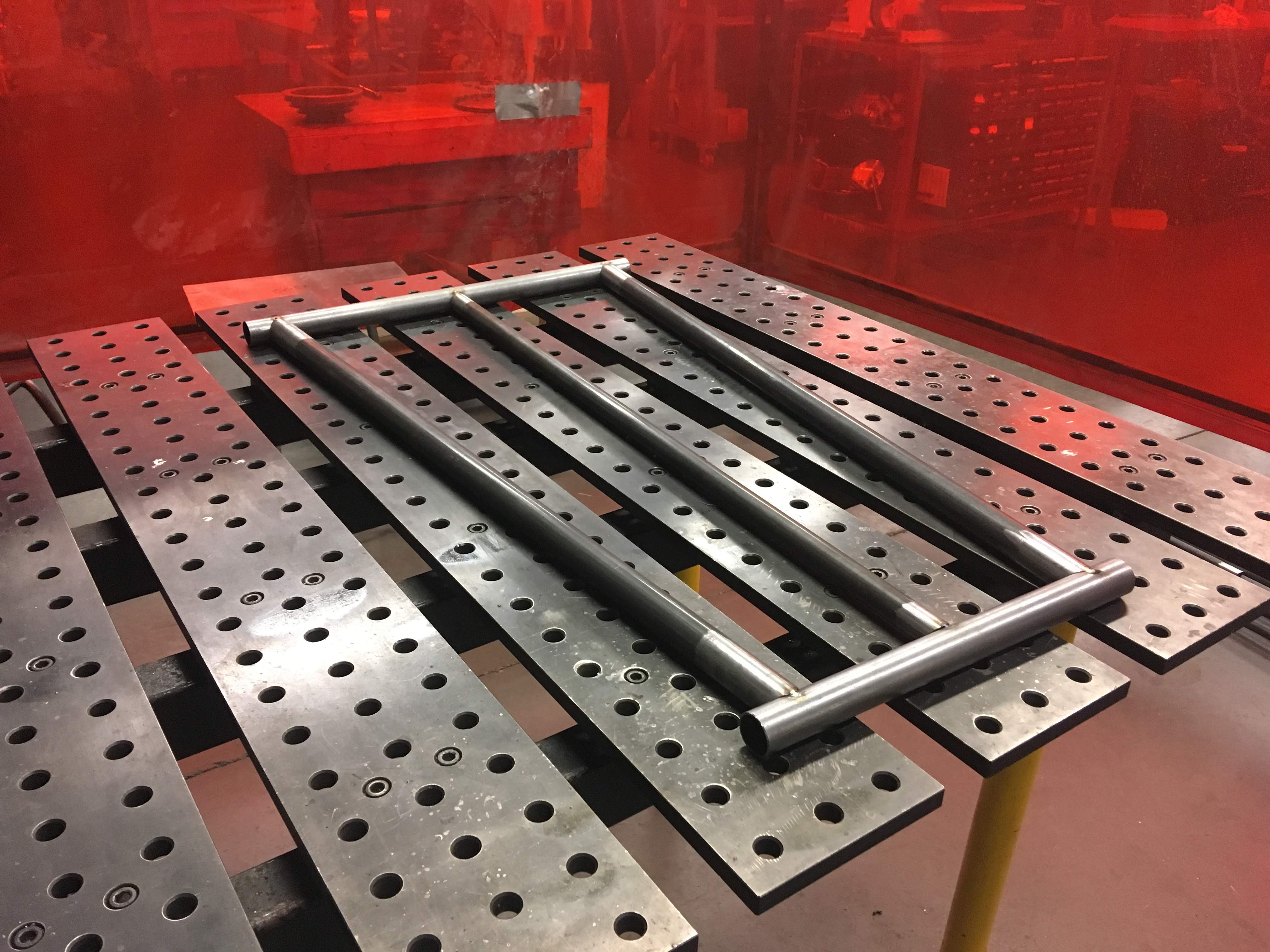

Start of the Frame!
Bottom floor of cockpit.

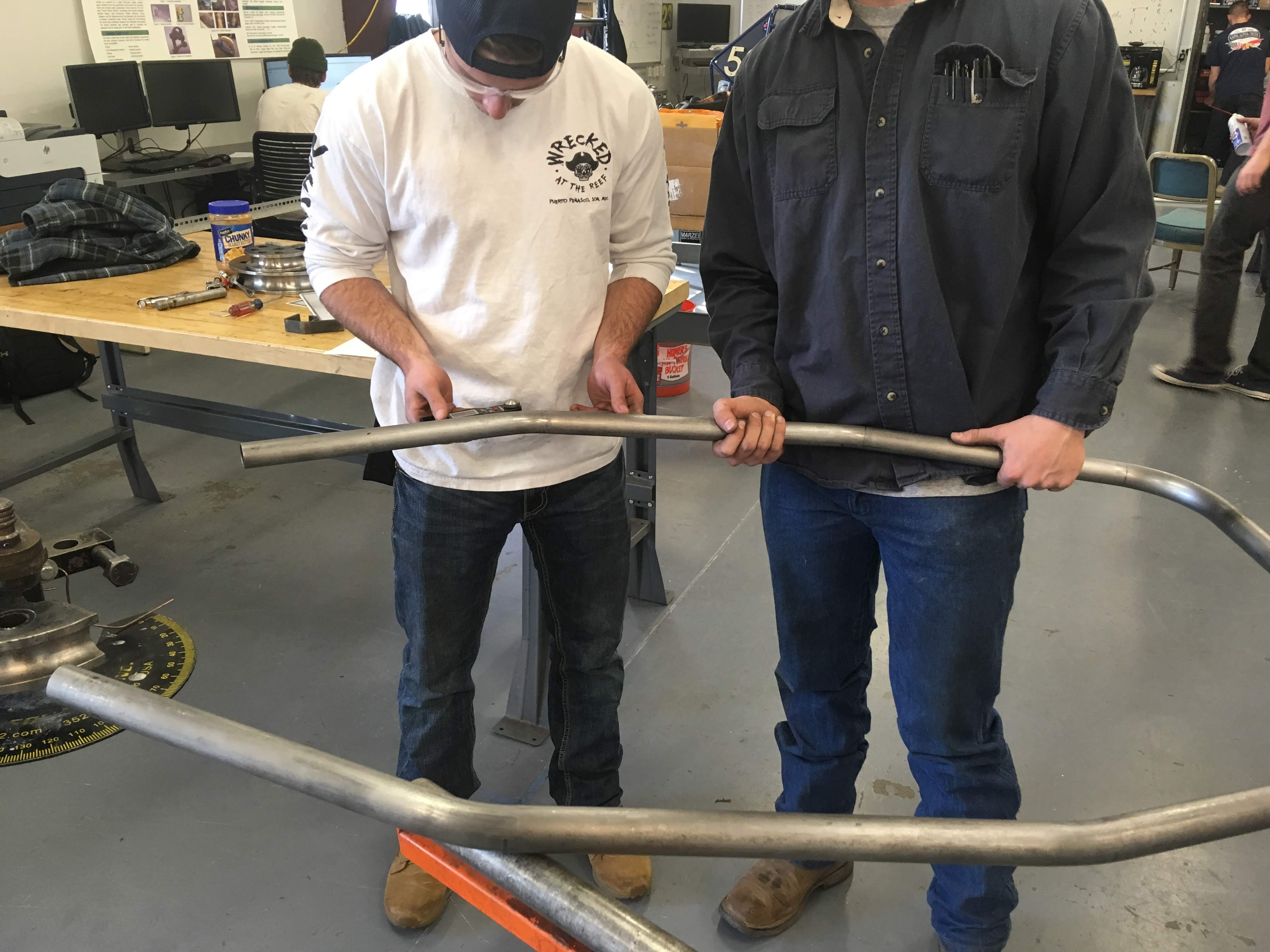

Firewall Bending
Garrett and Tyler measuring the firewall angles.

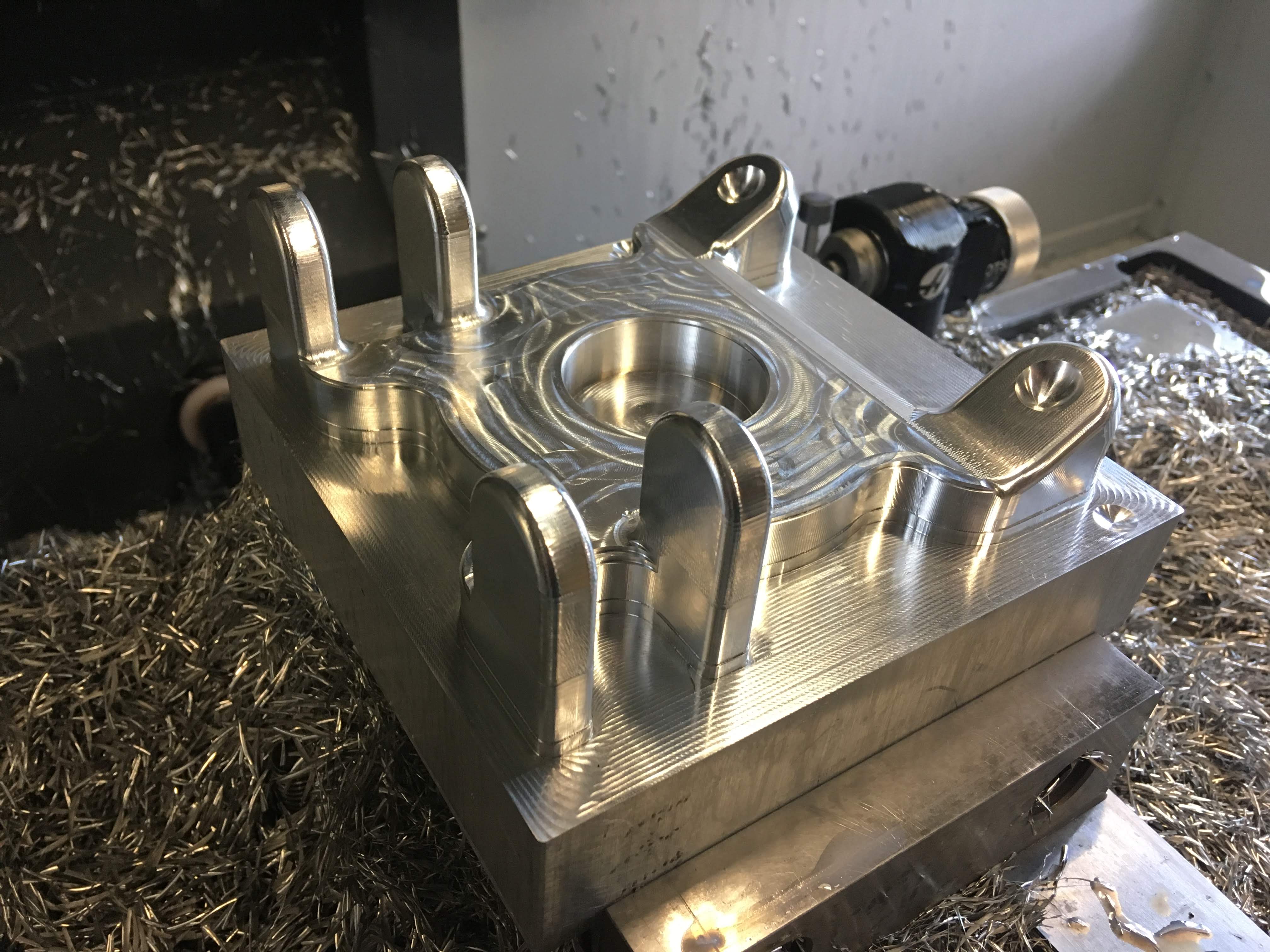

Rear Knuckle Manufacturing
Utilizing our awesome Haas CNC to machine our knuckles.
Nose of the Frame
Eric and Tyler getting the angles just right for the nose of the vehicle.

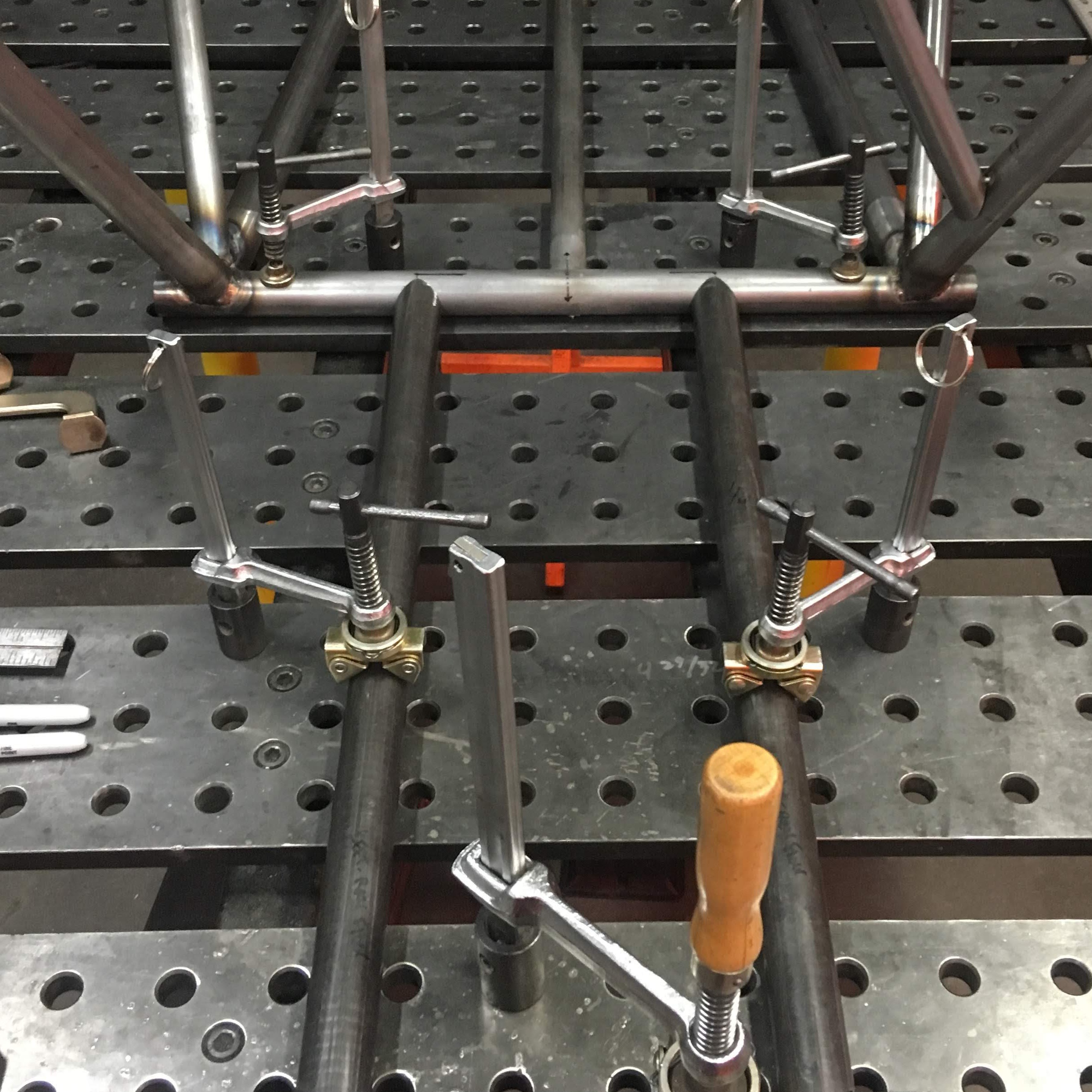

Jigging Rear of Frame
Making sure the rear of the frame is centered before welding.
A-Arm Weld
First set of lower A-Arms welded with spherical bearings.

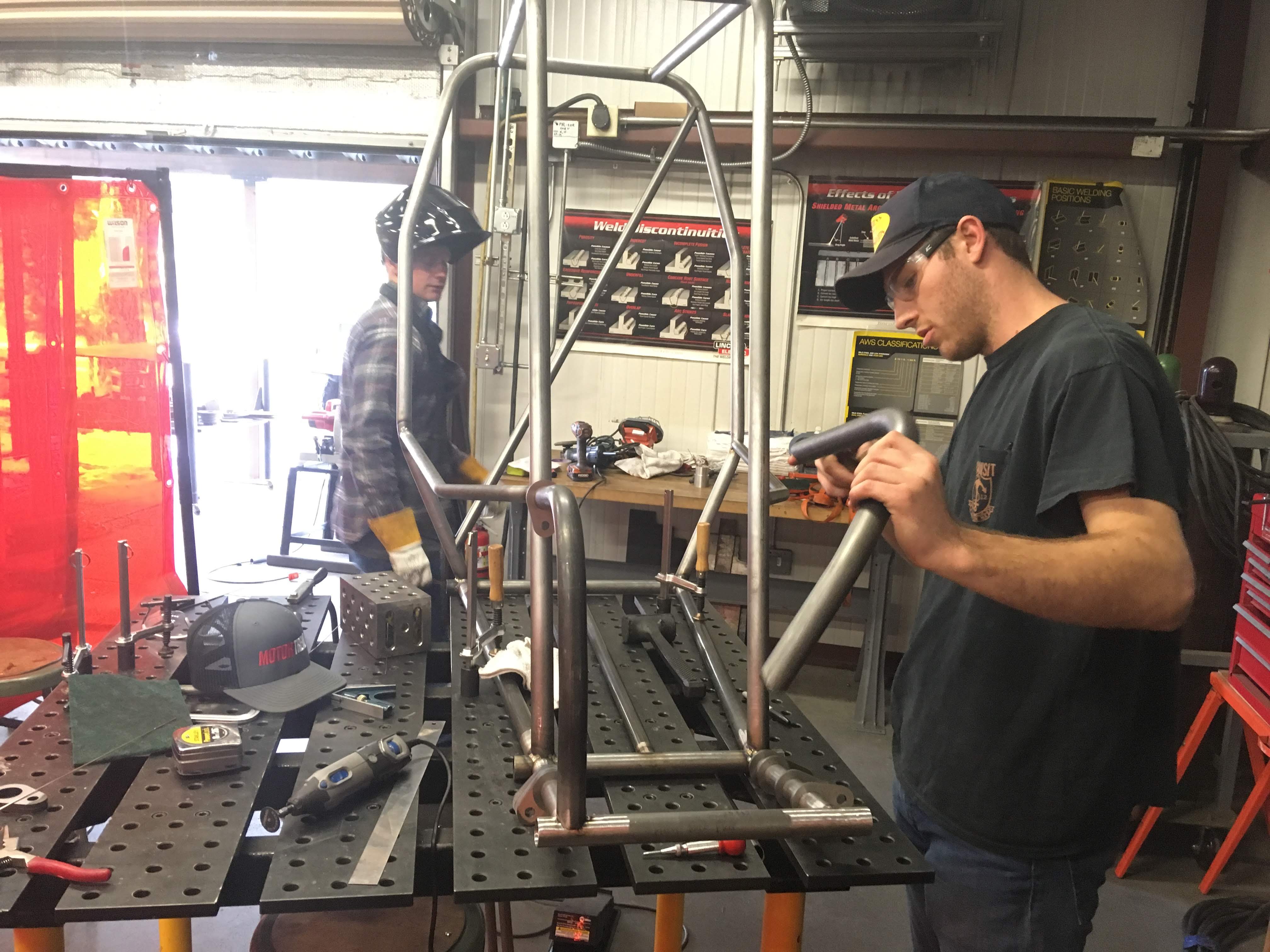

Frame Welding
Making sure everything is level and ready to go

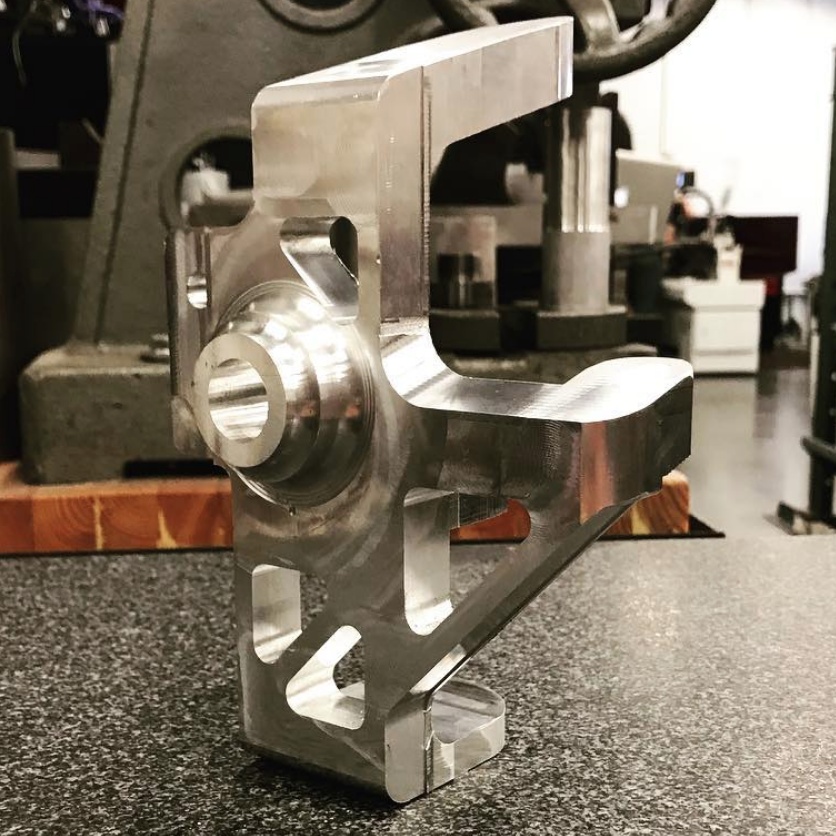

Front Knuckle
Front right knuckle fresh out of the Tormach CNC machine.

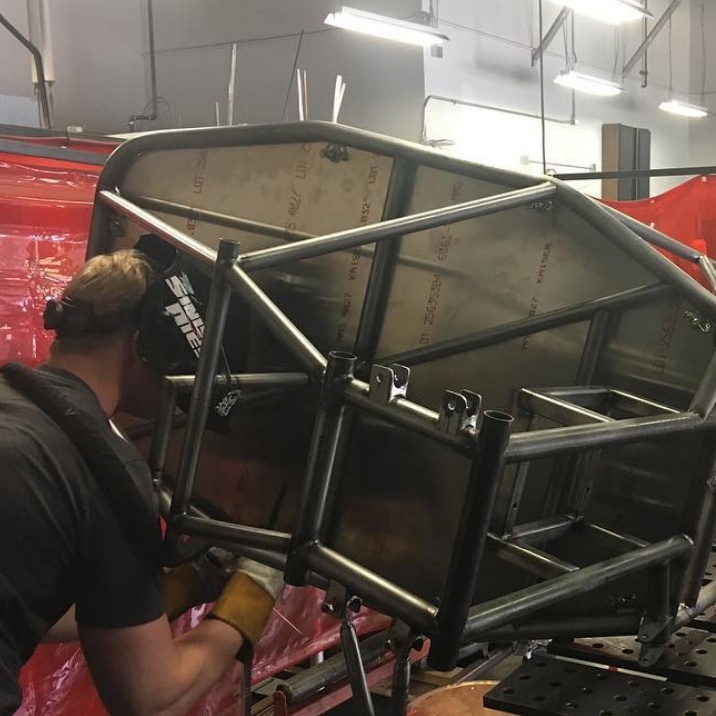

Welding
Tyler TIG welding frame tubes.

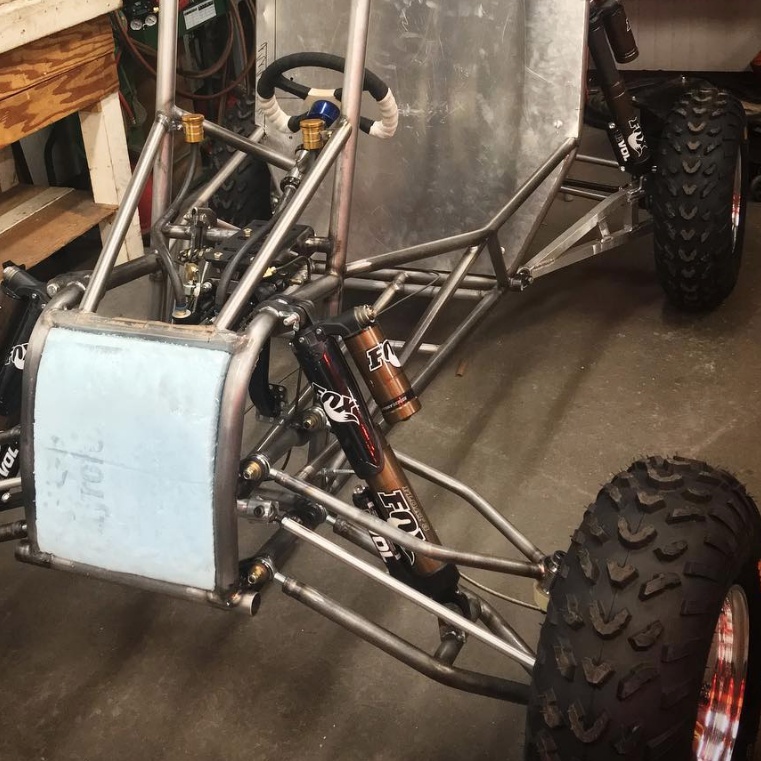

Composite Ready
Front end assembled ready for front nose composites.

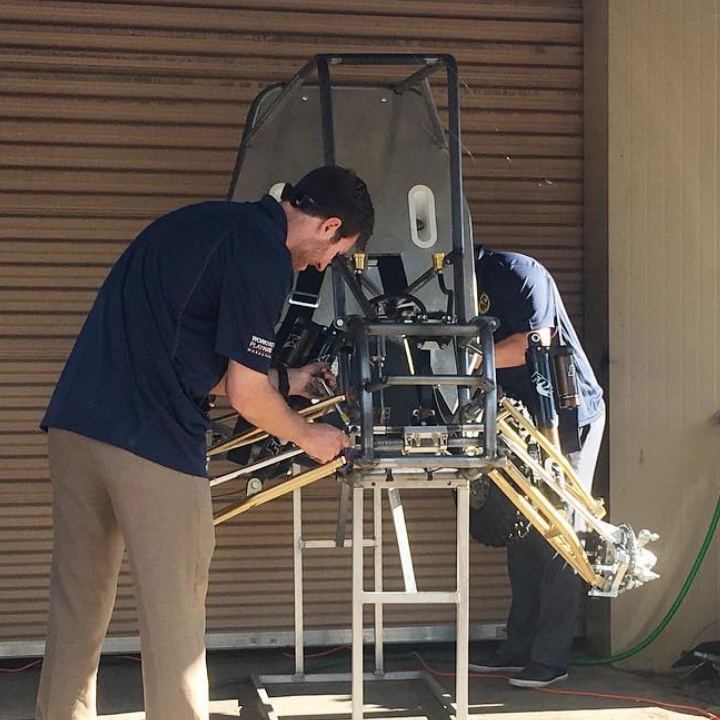

Assembly getting close
Eric and Tanner making adjustments to #44.

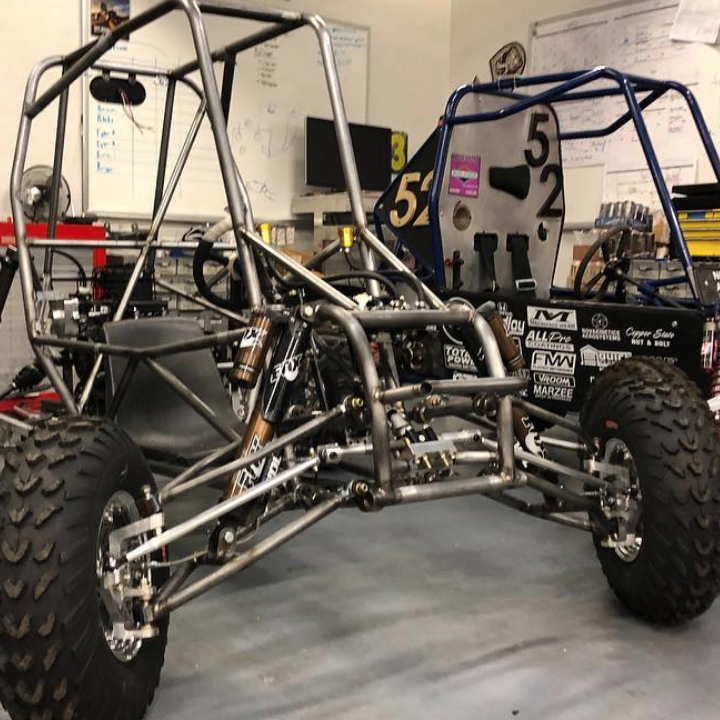

#44 vs #52
2019 Baja #44 stacking up next to 2018's vehicle.

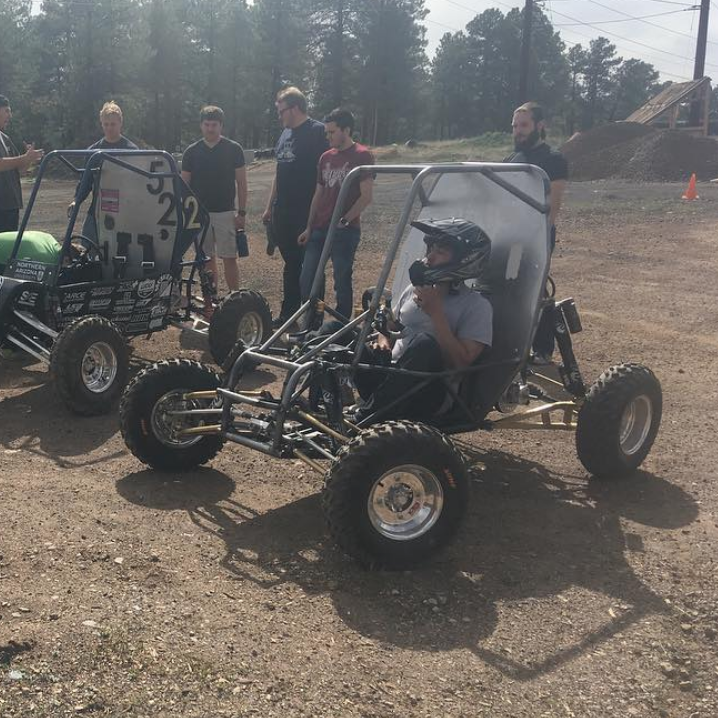

Testing
Taking #44 out to the track to get it's first dynamic tests after assembly.

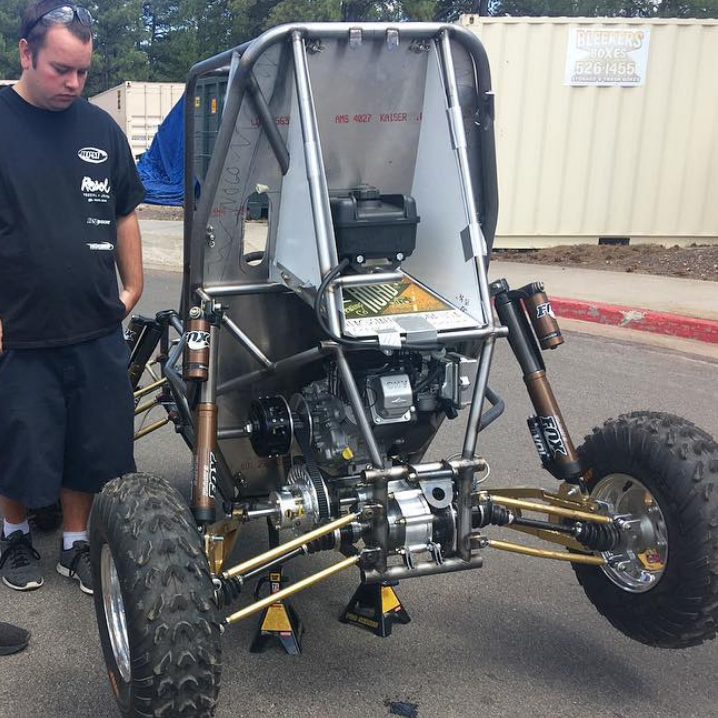

Tuning
Getting the CVT tuned to optimize the vehicle performance.
