As Engineer's we sometimes develop models in order for
us to see unforeseen problems with our design, or aid us in a direction
that we may have not thought of before.

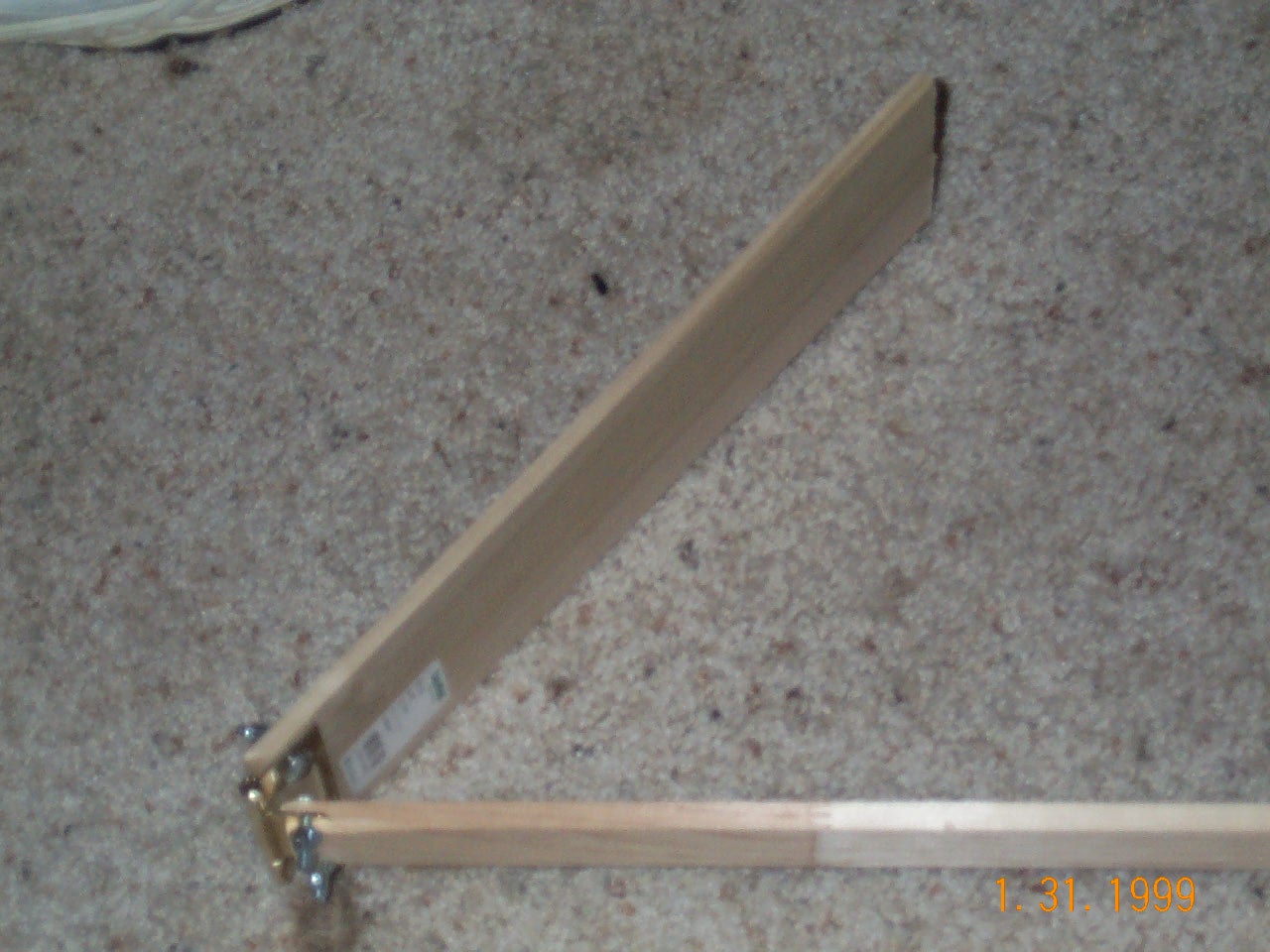

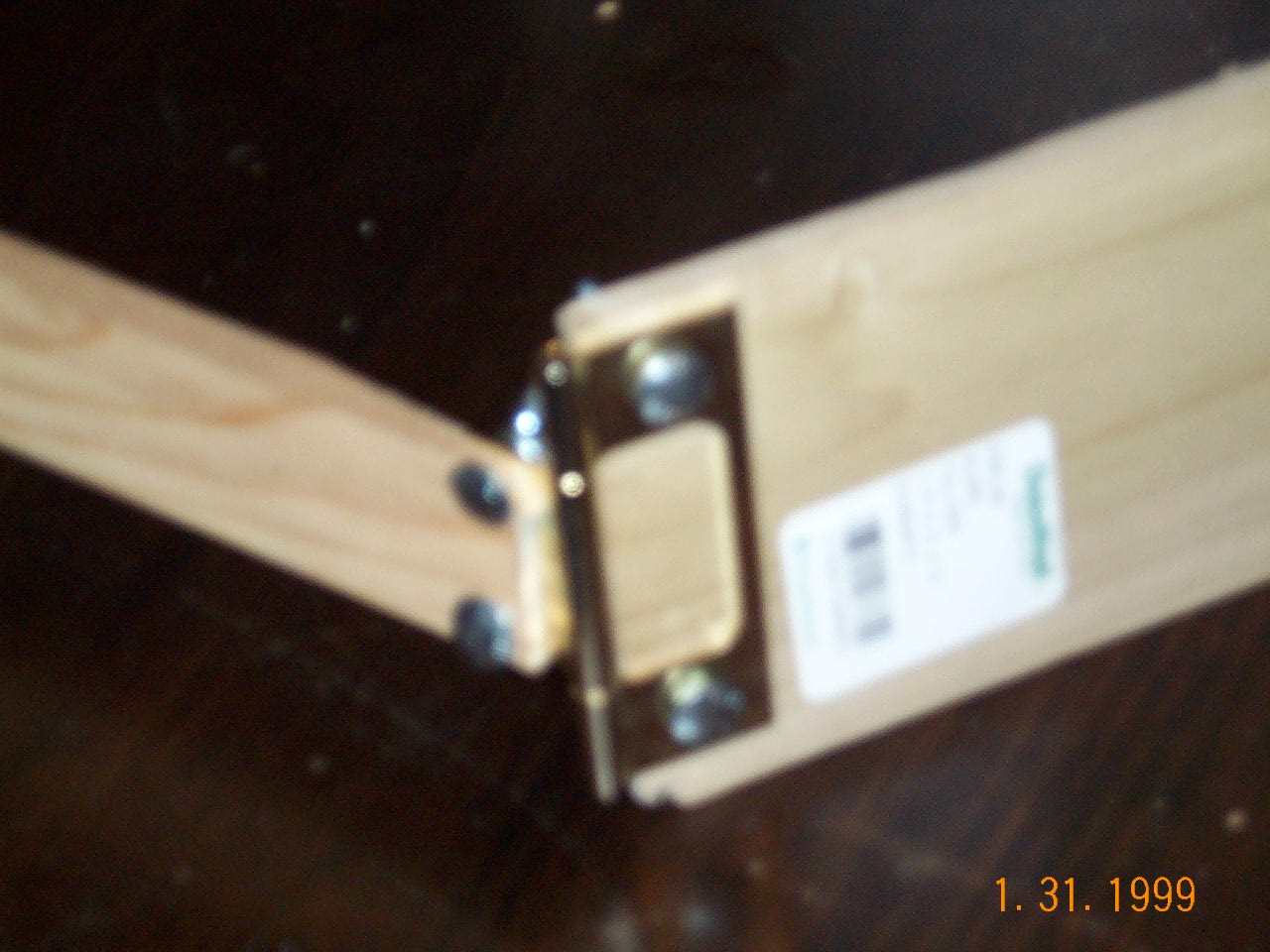

We developed this first model to show us what out basic hinge would be like:
from this model it became apparent that we had a problem
with forcing the actuation
motion of our hinge to being at a 90 degree angle
with the water.
Model Two: using a cable system to overcome our actuation problem.

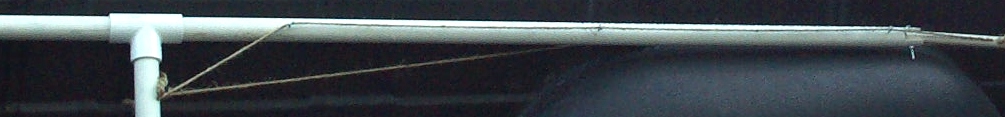

ropes on model to show where we will add cables to hold oar blade
at a 90 degree angle to the boat

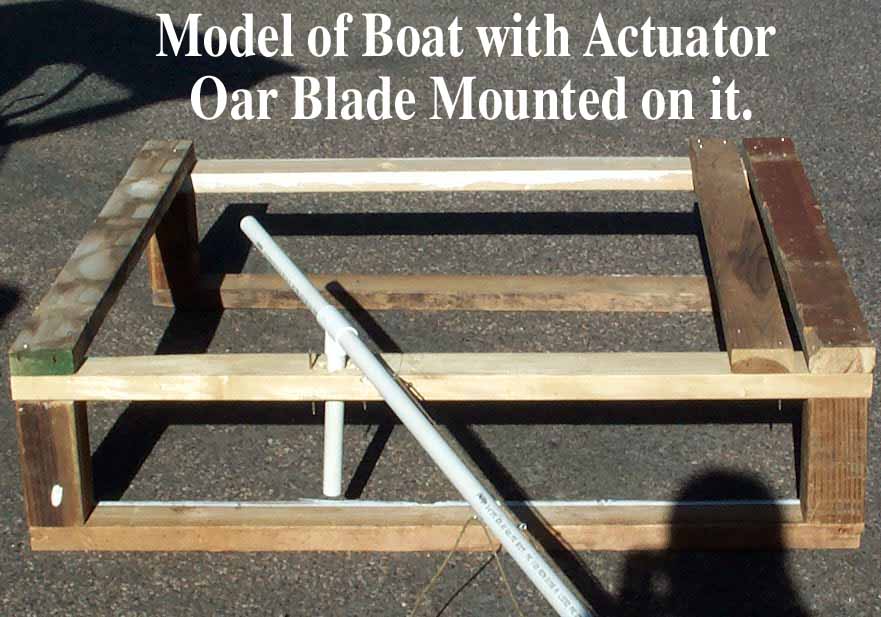

Model of boat to mount Oar actuation model

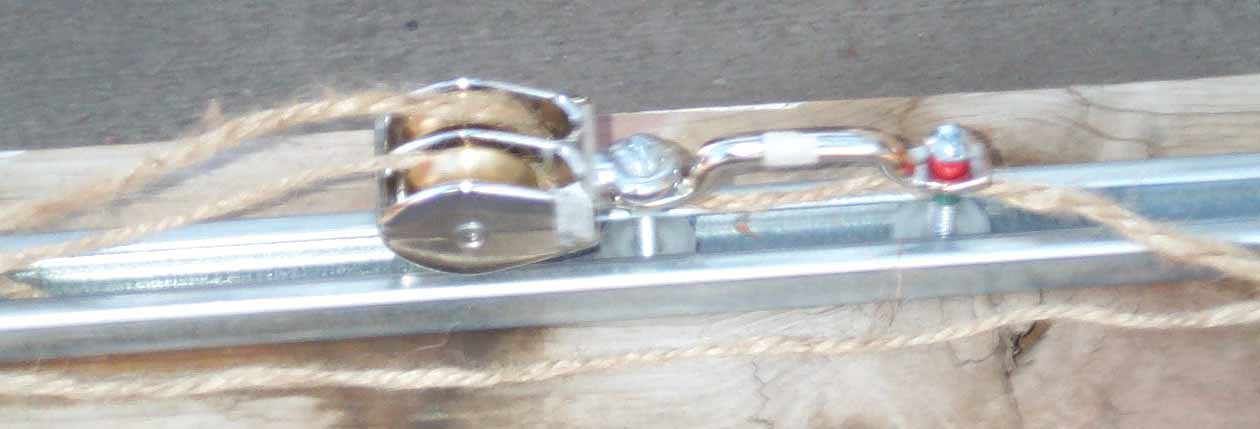

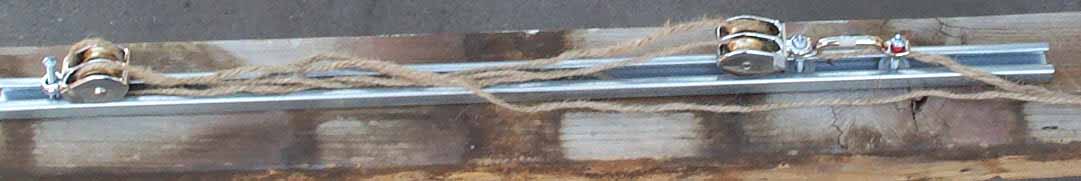

Model of pully system:
