Latch Revision-A

("Frozen" Design)

  Key Points:

1.  Simple
2.  Few modes of failure.
3.  Linear action tubular solenoids as latch actuators.
4.  Tapered profile tips and matching bores reduce risk of binding under applied load.
5.  Power off setting corresponds to the extended (steering locked) position.
6.  Power on is only used disengage latch.

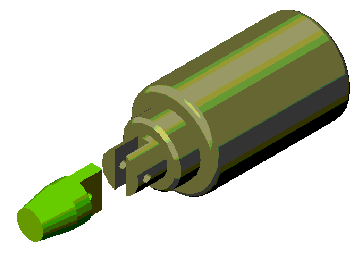

(Model of linear action tubular solenoid)

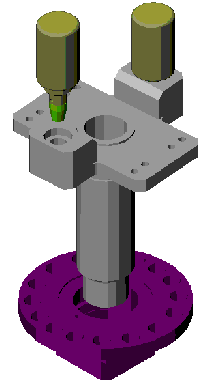

(Model of solenoids and their fitting to the structure)
