Payload Design
- Block Diagram
- Packaging
- Video Capture System
- Video Communications
- Sensors
- Data Acquisition Processor
- GPS Logger
- GPS Communications

Ground Station Design
- Video Receiver
- GPS Reciever
- Location Tracking

2.4 GHz Transmitter

-BATTERY OPERATED 5 V-12 V

-RF POWER max. 80 mW

-LOW CURRENT CONS. 98 mA/12V

-SMALLEST SIZE 1.7" X 1.1" X 0.4"

-SMA ANTENNA CONNECTOR

-METAL ENLOSURE

-NTSC, PAL or SECAM TV SYSTEMS

-VIDEO SIGNAL 1V, 75 ohm

-PLL CONTROLLED

-FREQUENCY 2.400 MHz - 2.500 MHz

-AUDIO INPUT 300 mV

-4 CHANNELS

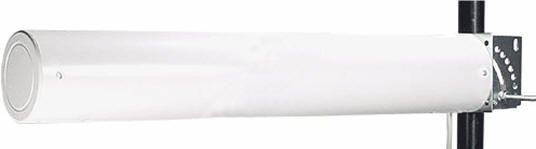

Yagi-Uda Antenna

-14 Dbi

-Horizontal and Vertical Polarization Planes

-50 Ohm
