Project Information

PROJECT DESCRIPTION

The Aqua Jacks Team is evaluating the feasibility of stormwater capacity and stabilization within the Smokerise neighborhood of Flagstaff, Arizona.

An evaluation of the surrounding watershed runoff with seasonal rainfall and snow melt will be conducted against existing infrastructure to identify preliminary design alternatives. Designed improvements through hydraulic, hydrological analyses will comply with appropriate local, state, and federal regulations.

Improvements in the Smokerise neighborhood should mitigate preventable flooding risks and long-term stormwater goals for the City of Flagstaff.

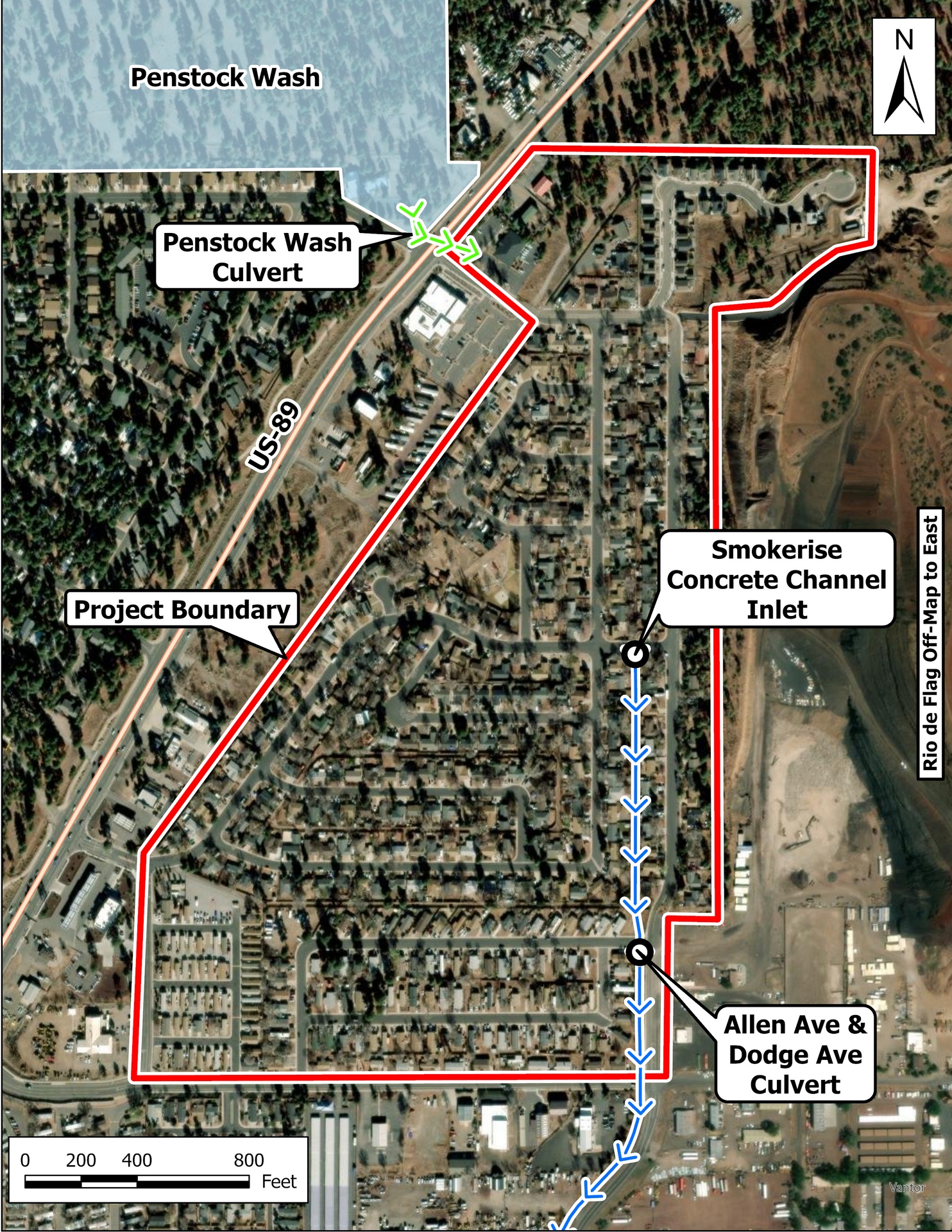

Stormwater currently enters the neighborhood through culverts crossing the US-89 from Penstock Wash. Smokerise in our project focus area relies moderately on surface street runoff capacity to funnel into the existing, concrete open channel of the neighborhood.

Agua Jacks is focusing their project work on the area closest to the U.S. Forest Service municipal building where hydraulic and hydrologic improvements can be made. This project focus works best for the team when taking into consideration semester time limitations.

PROJECT TASKS

Task 1

Task 1.1: Identify Existing Issues: Summarize known flooding problems, culvert deficiencies, and erosion concerns.
Task 1.2: Records Review: Evaluate available reference materials such as drainage manuals as well as as-builts.
Task 1.3: Research Existing Topo Data: Organize existing topographic information from the City of Flagstaff like LiDAR data.

Task 2

Task 2.1: Document Existing Conditions: Documentation of the existing conditions in the Smokerise neighborhood.
Task 2.2: Surveying: Surveying will be conducted to support existing topographic data and collect missing points of data.
Task 2.3: Data Analysis: Topographic and survey data will be analyzed together to create a comprehensive map for other analyses.

Task 3

Task 3.1: Watershed Delineation: Using topographic data drainage areas will be delineated.
Task 3.2: Time of Concentration: Using NRCS TR-55 and HEC-RAS models, the time of concentration will be found with topographic information.
Task 3.3: Design Storm Modeling: Modeling of the wash and neighborhood will be conducted for 10-year and 100-year design storms.

Task 4

Task 4.1: Culvert Analysis: Analysis of the existing culverts will be conducted to assess current conditions.
Task 4.2: Channel Analysis: Analysis of the existing channels will be conducted to assess current conditions.
Task 4.3: Deficiency Identification: Deficiencies will be identified from culvert and channel analysis using appropriate municipal standards.

Task 5

Task 5.1: Identify Constraints and Criteria: Development of constraints will come from assigning structured values based on the criteria of the project.
Task 5.2: Develop Alternatives: Alternative designs for the project area will be created based off of identified constraints and criteria.
Task 5.3: Select Best Alternatives: Alternatives will be ranked based on a decision matrix with quantitative and qualitative metrics.

Task 6

Task 6.1: Final Hydraulic Design: Final hydraulic design will include detailed modeling and sizing of the selected alternative design for the 10-year and 100-year storm events.
Task 6.2: Plan Set Creation: Preparation of construction-detailed drawings such as plan, profile, and typical sheets.

►

Task 6.2.1: Cover Sheet/Existing Site Plan
►

Task 6.2.2: Proposed Site Plan
►

Task 6.2.3: Detailed Design Drawings

Task 6.3: Construction Cost Estimate: An engineer's opinion of probable construction cost will be developed based on proposed materials, design quantities, and regional pricing.

Task 7

Impacts analysis will evaluated the broader implications of the Smokerise project on the greater area of Flagstaff, Arizona.
Economic, community, and local impacts. Both environmental, and global.
Enhances quality of life for Smokerise neighborhood residents.

Task 8

Task 8.1: 30% Deliverables
Task 8.2: 60% Deliverables
Task 8.3: 90% Deliverables
Task 8.4: Final Deliverables

Task 9

Task 9.1: Schedule Management: The project schedule will be maintained and regularly updated in Microsoft Project to monitor task progress, dependencies, and milestones.
Task 9.2: Resource & Budge Management: Staffing and resource allocation will be managed to balance workloads and maintain productivity.
Task 9.3: Meetings & Quality Assurance: Meetings will be held regular with the team, client, technical advisor, and instructor to ensure quality assurance and peer reviews.

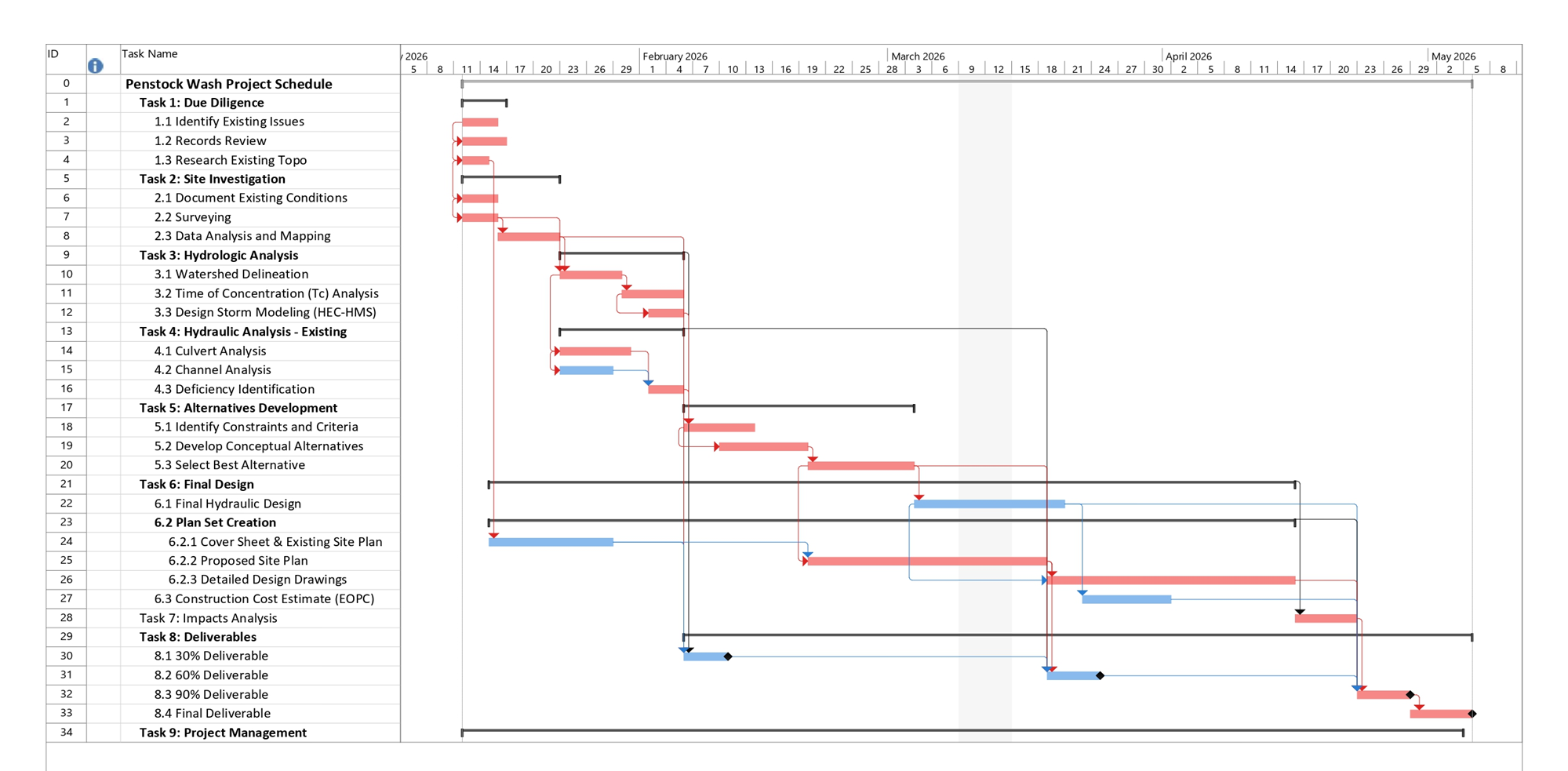

GANTT CHART

The Agua Jacks team will utilize a Gantt chart to organize tasks and time for the team to ensure project tasks are completed on time. Critical tasks are highlighted in red with non-critical tasks highlighted in blue.

Figure D: Gantt Chart
Image created by Haile Nelson

Project Start Date: January 12th, 2025

Project End Date: May 5th, 2025

PROJECT CONSTRAINTS

Identification of project constraints will be conducted by defining the criteria to be met with assigned weight factors. Criteria will be established through the project requirements such as cost, maintenance, performance, and feasibility. Requirements will be assigned a weight value in a decision matrix to identify the best design alternatives.

Easily identifiable constraints are comprised of but not limited to: avoiding private property, realistic budget, time limitations, and technical abilities.

STAFFING PLAN

The Agua Jacks team is using a staffing plan that organizes the team's structure and responsibilities. Tasks and responsibilities will be split amongst four team members. Four positions that are identified for our team are the principal engineering (PE), project engineer (PrE), engineer-in-training (EIT), and an intern (INT).

Principal Engineer: Civil/Environmental PE, 5-10 years.
Project Engineer: Civil/Environmental PE, 2-5 years.
Engineer-in-Training: Passed Civil/Environmental FE, 0-2 years.
Intern: Pursuing Civil/Environmental BS Degree

It is recommended that the team is compromised with at least one civil and environmental engineer.

Task	PE (hrs)	PrE (hrs)	EIT (hrs)	INT (hrs)	Task Total (hrs)
Task 1: Due Diligence (Total hrs)	0	9	18	30	57
1.1 Identify Existing Issues		3	6	5	14
1.2 Records Review		3	6	10	19
1.3 Research Existing Topo		3	6	15	24
Task 2: Site Investigation (Total hrs)	0	12	24	13	49
2.1 Document Existing Conditions		4	8	4	16
2.2 Surveying		4	8	4	16
2.3 Data Analysis and Mapping		4	8	5	17
Task 3: Hydrologic Analysis (Total hrs)	7	17	25	9	58
3.1 Watershed Delineation	2	7	15	3	27
3.2 Time of Concentration (Tc) Analysis	3	5	5	3	16
3.3 Design Storm Modeling (HEC-HMS)	2	5	5	3	15
Task 4: Hydraulic Analysis - Existing (Total hrs)	7	21	35	12	75
4.1 Culvert Analysis	2	7	10	4	23
4.2 Channel Analysis	3	7	15	4	29
4.3 Deficiency Identification	2	7	10	4	23
Task 5: Alternatives Development (Total hrs)	6	15	20	9	50
5.1 Identify Constraints and Criteria	2	5	10	3	20
5.2 Develop Conceptual Alternatives	2	5	5	3	15
5.3 Select Best Alternative	2	5	5	3	15
Task 6: Final Design (Total hrs)	15	28	45	15	103
6.1 Final Hydraulic Design	5	8	10	3	26
6.2 Plan Set Creation (Total hrs)	7	15	30	9	61
6.2.1 Cover Sheet & Existing Site Plan	2	5	10	3	20
6.2.2 Proposed Site Plan	2	5	10	3	20
6.2.3 Detailed Design Drawings	3	5	10	3	21
6.3 Construction Cost Estimate (EOPC)	3	5	5	3	16
Task 7: Impacts Analysis (Total hrs)		7	4	4	15
Task 8: Deliverables (Total hrs)	8	32	40	20	100
8.1 30% Deliverable	2	8	10	5	25
8.2 60% Deliverable	2	8	10	5	25
8.3 90% Deliverable	2	8	10	5	25
8.4 Final Deliverable	2	8	10	5	25
Task 9: Project Management (Total hrs)	20	44	20	20	104
9.1 Schedule Management		12			12
9.2 Resource & Budget Management		12			12
9.3 Meetings & Quality Assurance	20	20	20	20	80
Total hours	63	185	231	132	611

Table A: Staffing Plan

COST OF ENGINEERING SERVICES

This is a breakdown for the cost of engineering services that the Agua Jacks team will invoice relating to the staffing costs as well as equipment costs. Equipment costs include items such as survey equipment, software, and expendable materials.

Cost Estimate
Personnel	Hours	Billing Rate ($/hr)	Total
Principal Engineer (PE)	63	270	$17,010
Project Engineer (PrE)	185	186	$34,410
Engineer-in-Training (EIT)	231	138	$31,878
Intern (INT)	132	42	$5,544
Personnel Subtotal			$88,842
Equipment	Days	$/day	Total
Surveying	2	100	$200
Computer Lab	10	100	$1,000
Equipment Subtotal			$1,200
Project Total			$90,042

Table B: Cost of Engineering Services

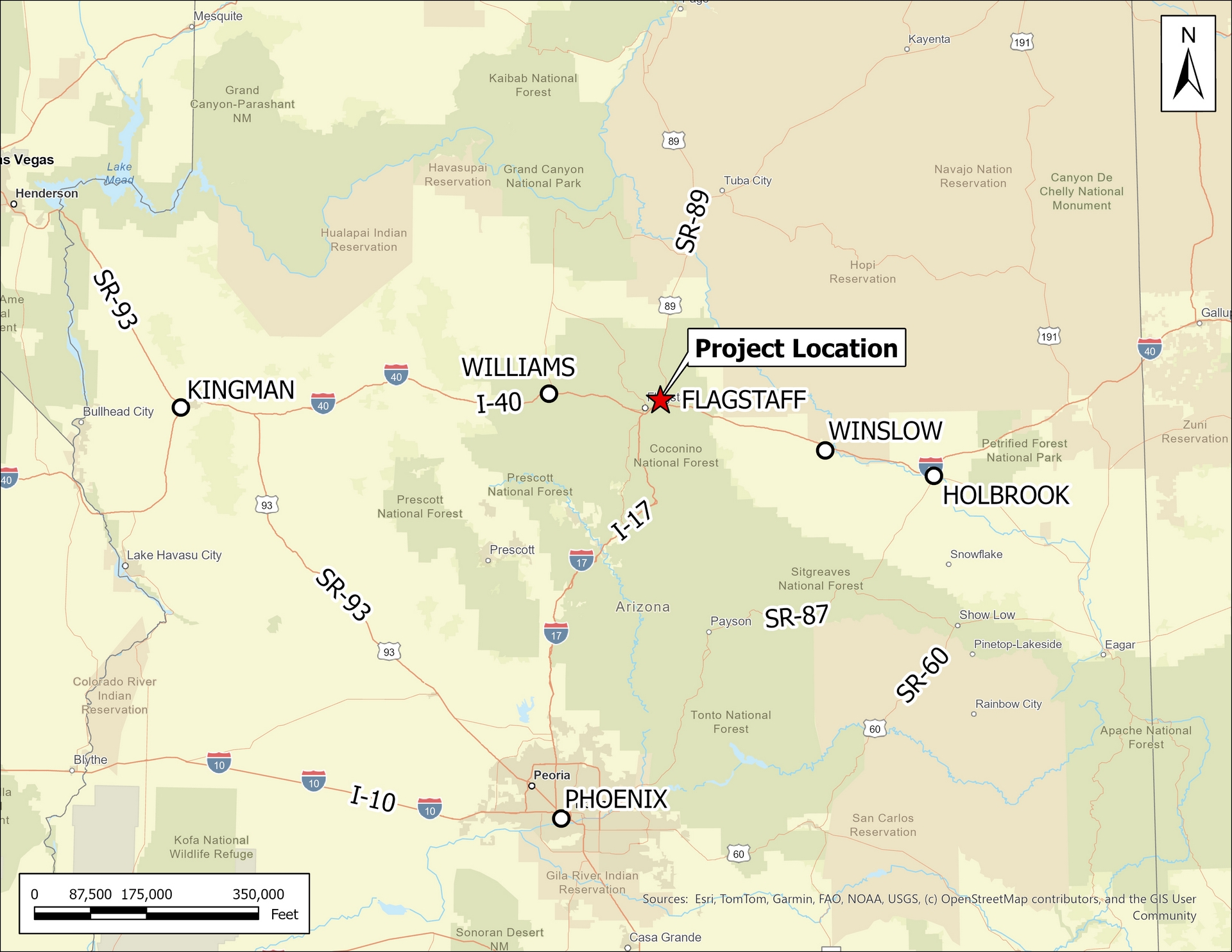

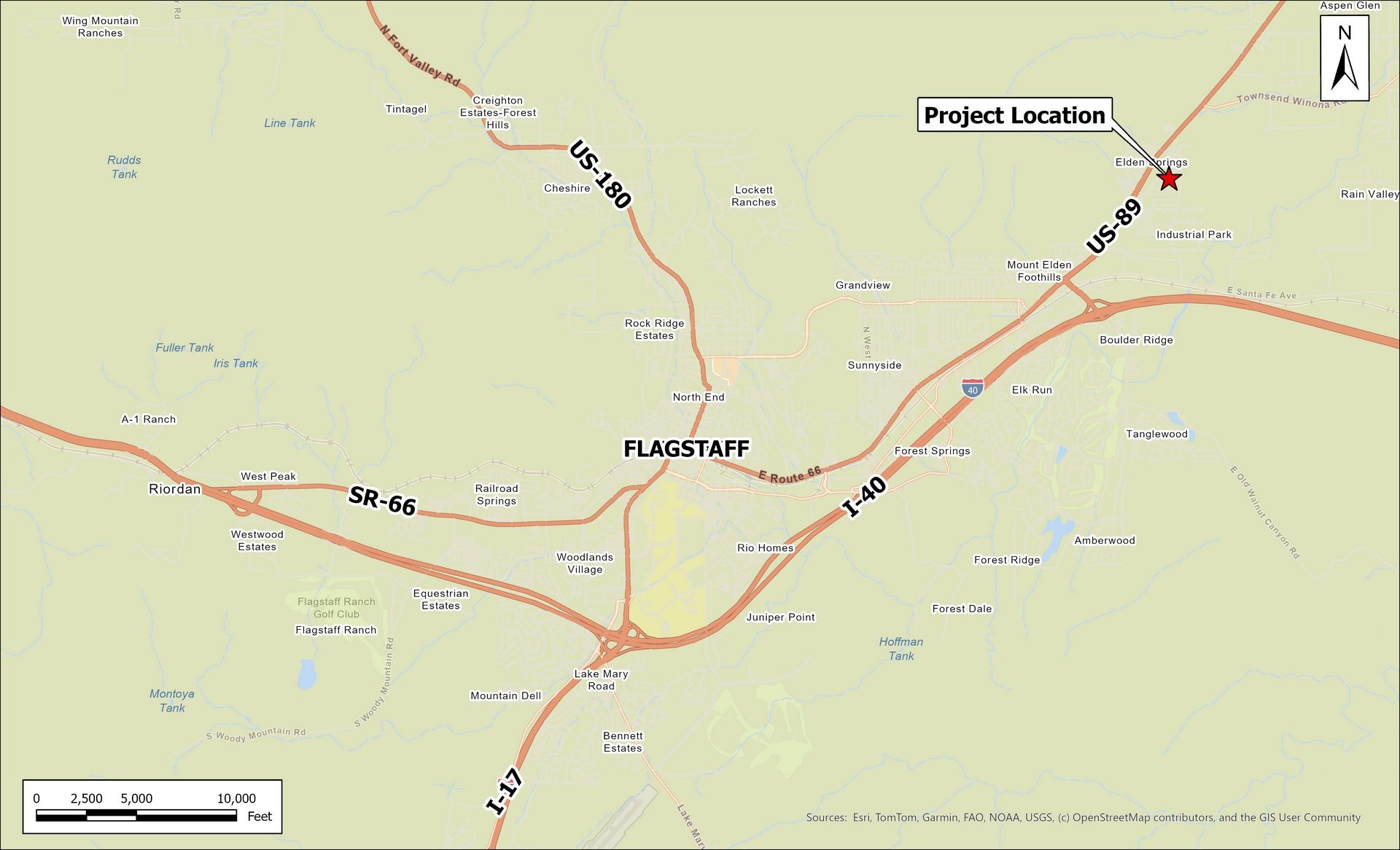

Project Maps
