Project Information

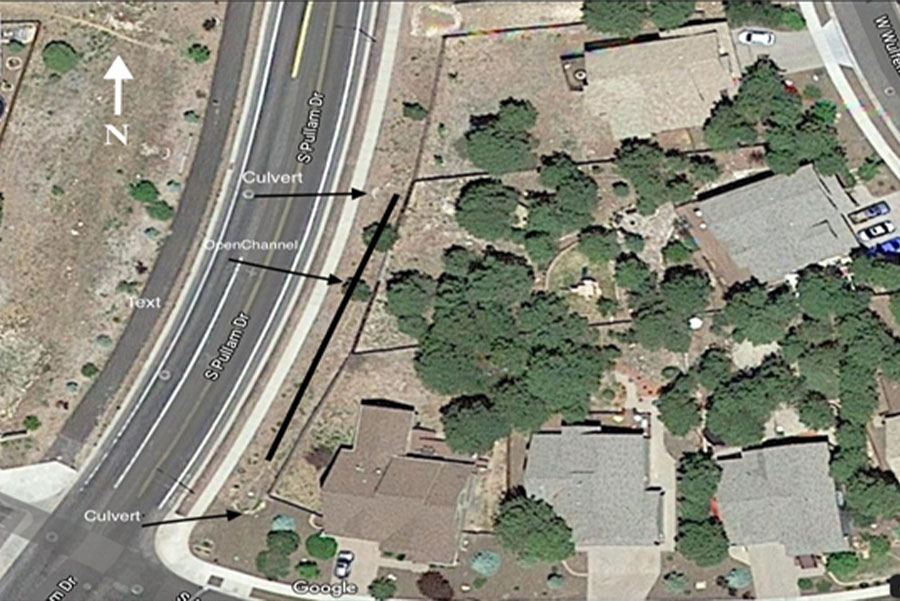

The Summit residential development in Ponderosa Trails would like to have a channel and slope assessed that are having stability issues. The subject channel is located along Pulliam Rd in Flagstaff and runs along the back of the property of three home owners. One of the property owners is having slope stability issues with the bottom portion of their yard “slipping” towards the channel. During high flows the channel is also capable of inundating the bottom of subject homeowner’s property. A stormdrain that is consisted of double eighteen inches smooth wall High Density Polyethylene (HDPE) pipes was designed.

S Pullam Dr, Flagstaff, AZ 86001

Staffing

A full breakdown of engineering work hours preformed for each task and subtask.

Engineering Costs

The calculated engineering and construction costs throughout the project was anaylized and stated in short and summarized tables.

Schedule

The schedule file shows the timeline and the milestones of the team process throughout the project.

Construction Plan

The plan set contains all the design work conducted for the proposed designs of the storm drain.

Final Design

The recommended final design of the storm drain can be found here. All additional information can be found in the final report.
