Final Design
Irrigation System Design:

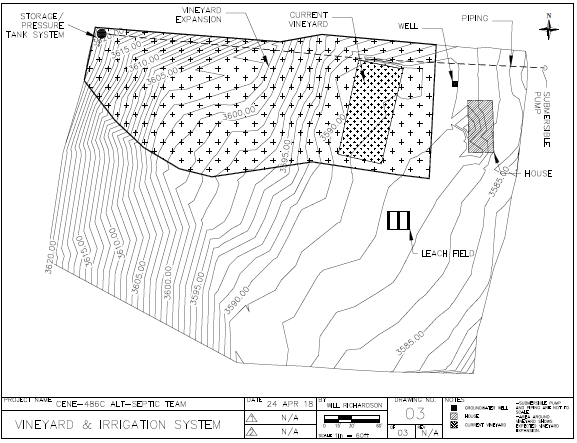

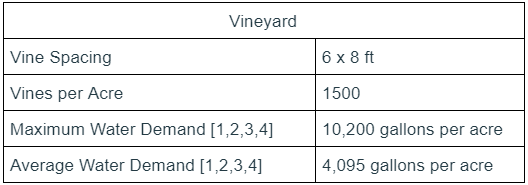

Vineyard Layout:

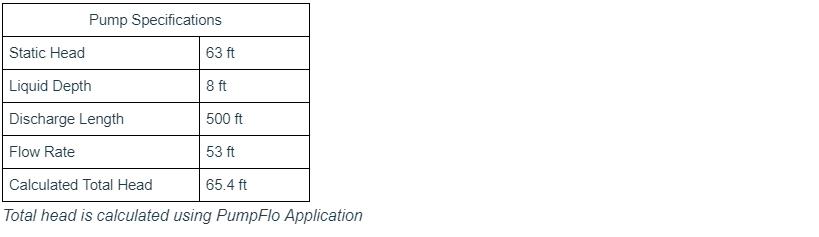

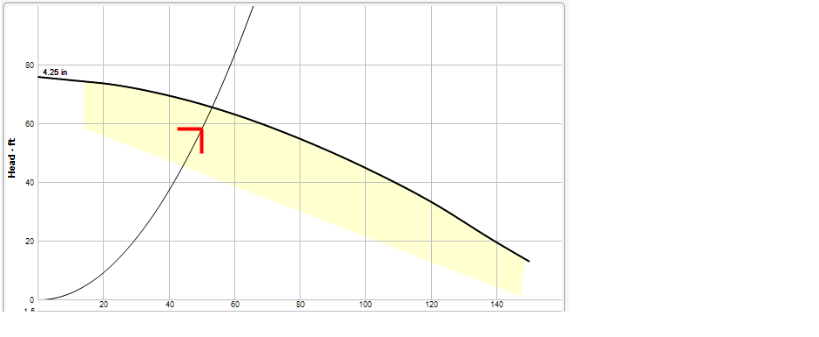

Submersible Pump[5]:

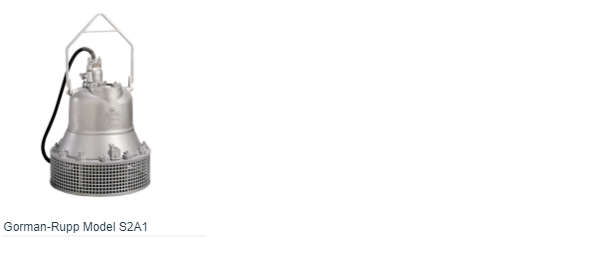

Gorman-Rupp S-Series Submersible Pump, 115 V

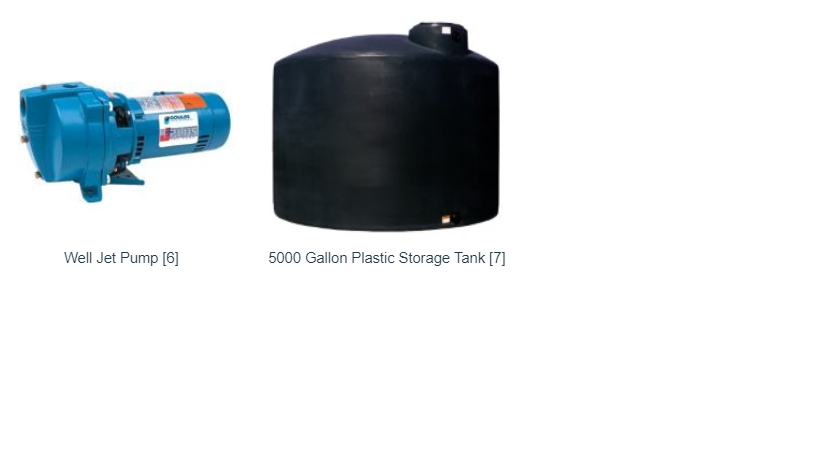

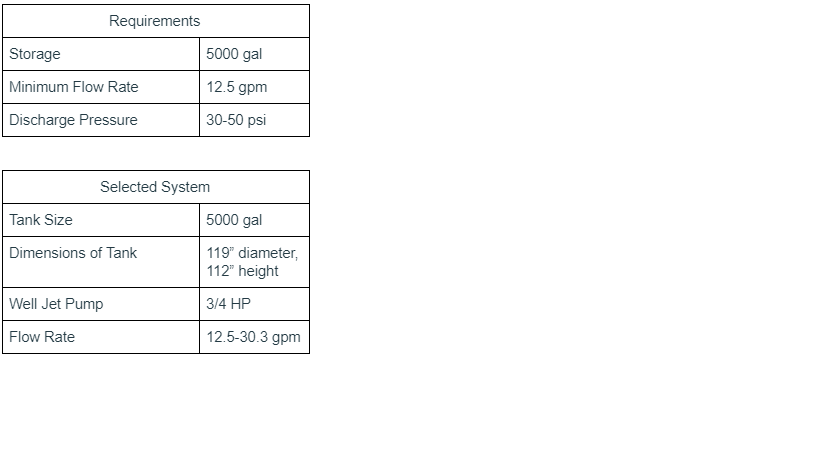

Storage Tank & Irrigation Pump:
Goulds J7S 3/4 HP Shallow Well Pump

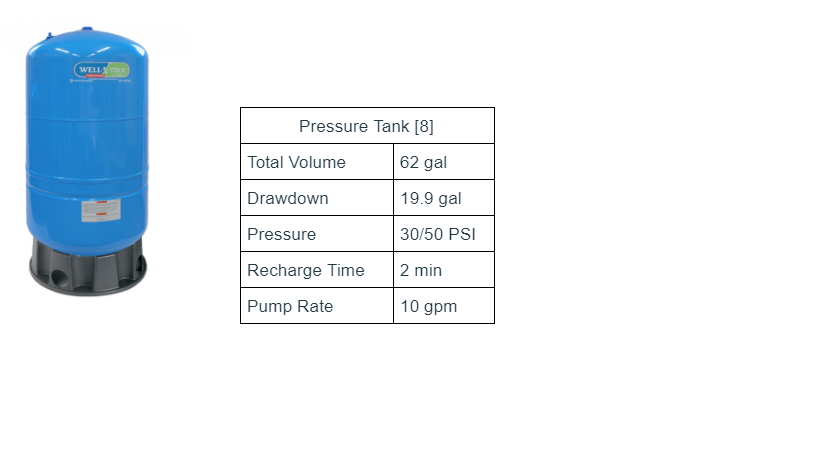

Pressure Tank & Dripline:
Amtrol WX-251 Pressure Tank

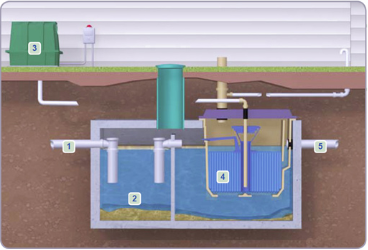

Alternative Septic System:
- MicroFAST 0.5 Aerobic Treatment unit made by Biomicrobics
- Meets Arizona Effluent standards
- 1000 gallon tank, hydraulic loading rate of 300 gpd flow

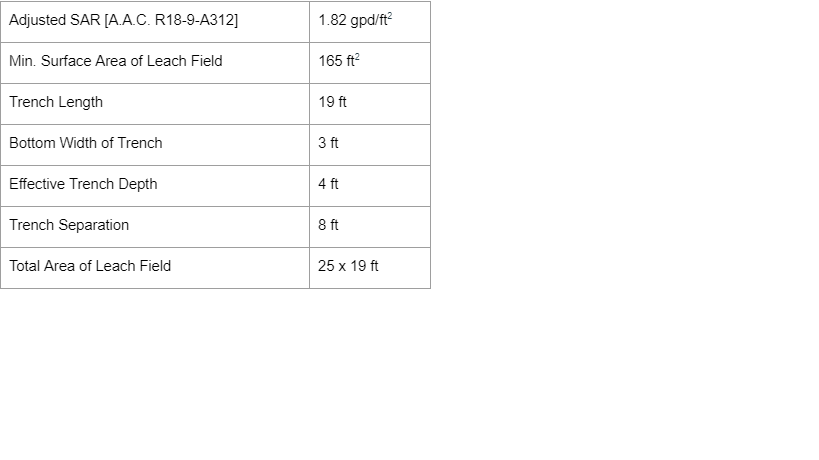

Leach Field Specifications [A.A.C. R18-9-E302]
