AutoCAD

The figures below show the AutoCAD drawings drafted by the team members. AutoCAD drawings of the current conditions of the cross section and the proposed rock armoring were generated.

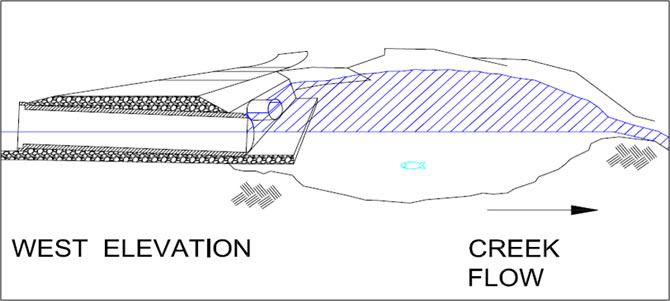

The above AutoCAD drawing of the current conditions shows the undercutting that is occuring under the apron of the crossing. This undercutting is a major concern because it is threatening the structural integrity of the crossing.



This is an example layout of how the rock armoring can be placed. The boulders would stretch the entire length of the apron and also provide bank support. The bank support will help minimize the erosion taking place on both sides of the scour hole.
