A Drone Mountable Enclosure and Optics for Eco-Sensing Optical Spectrometer

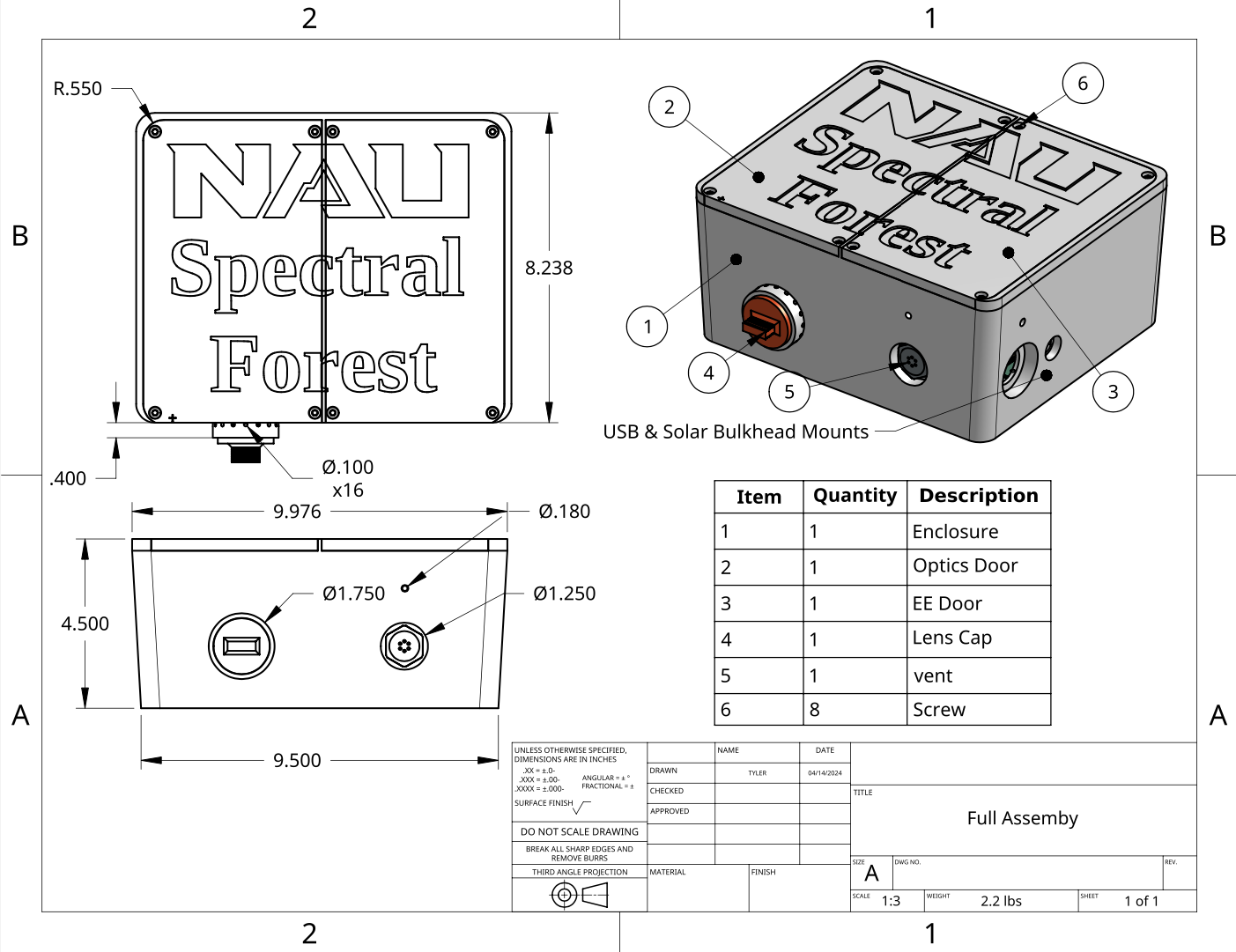

final CAD

Final Enclosure Complete

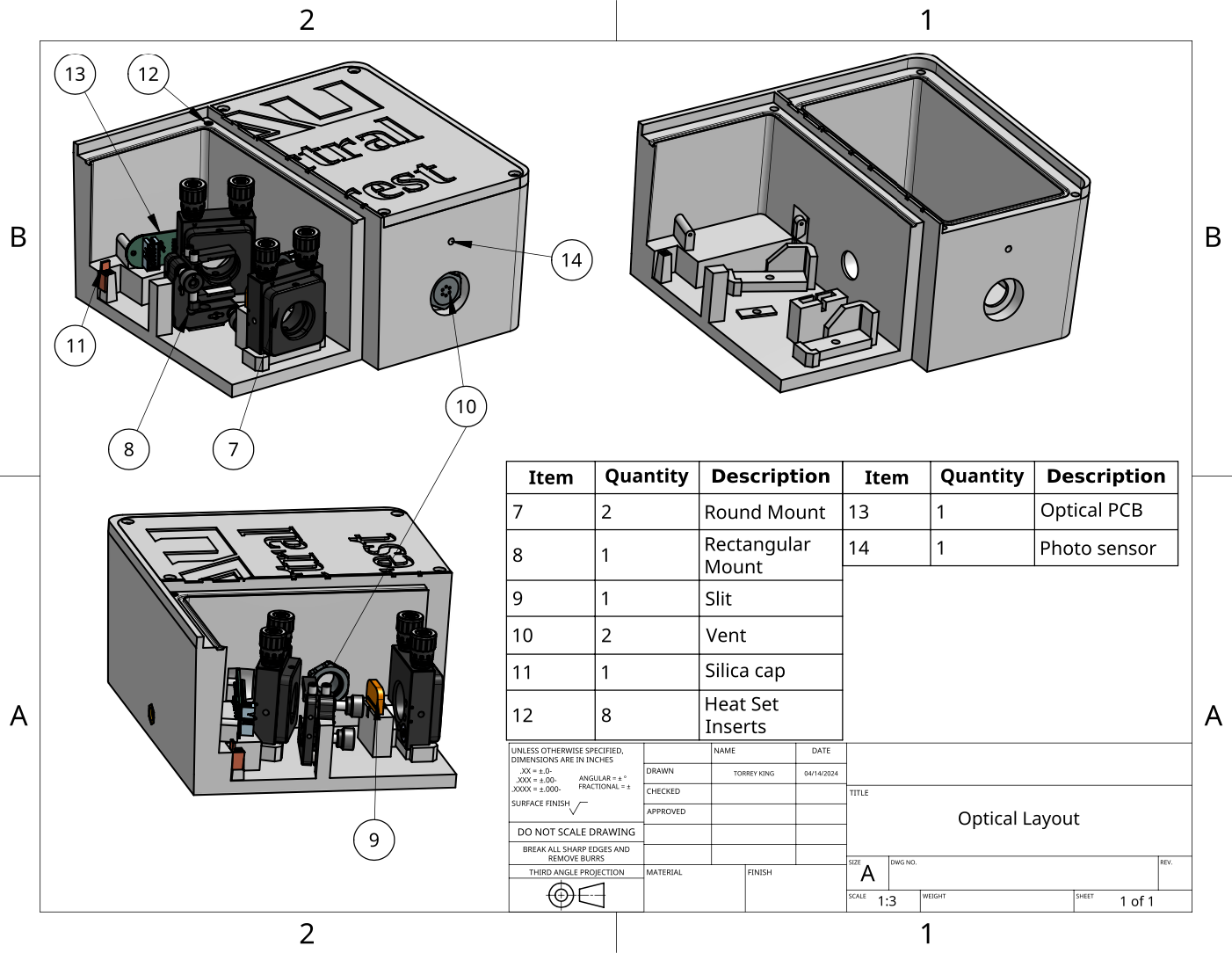

final CAD

Final Enclosure with Optics Shown

final print

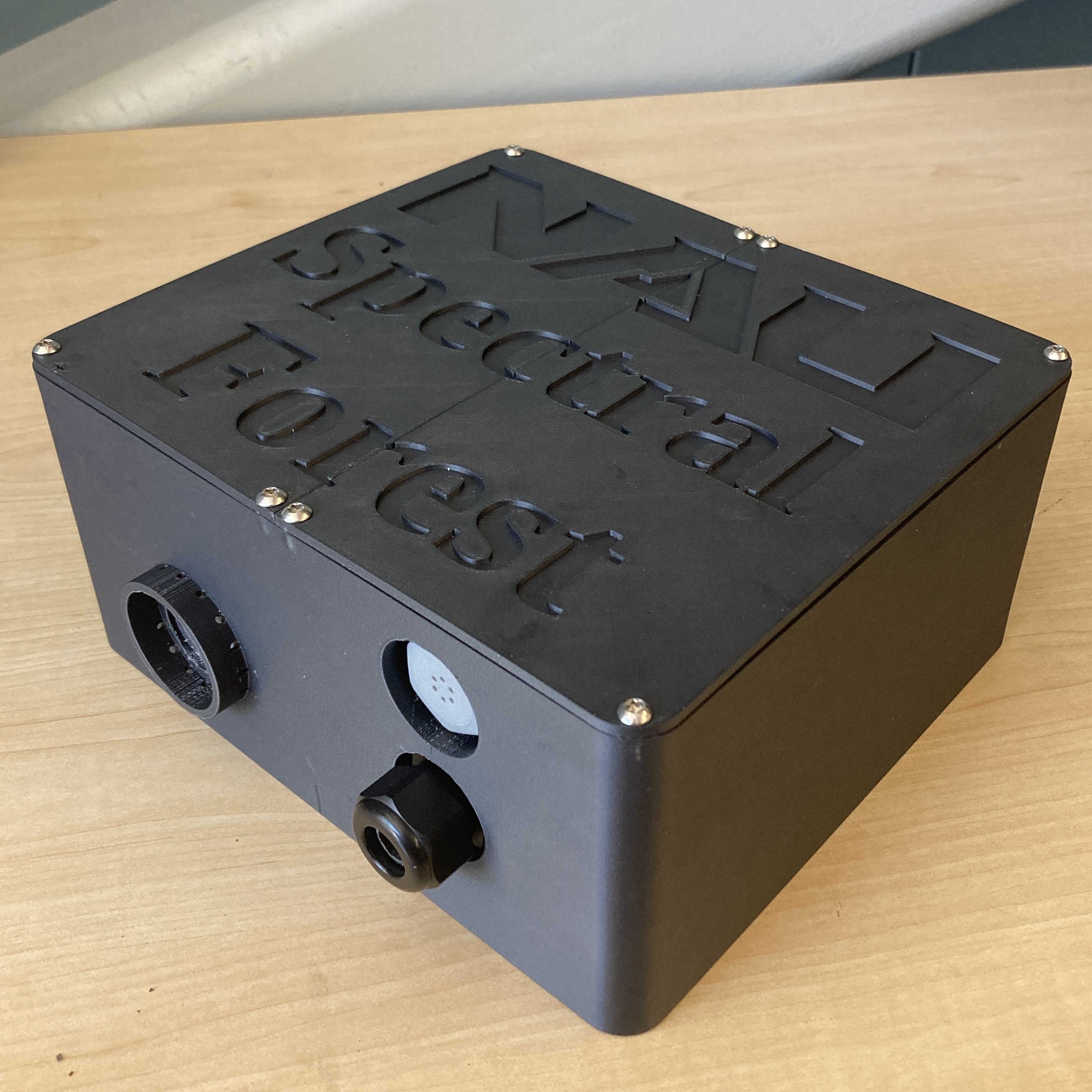

Full Final Enclosure Printed

estimation of results

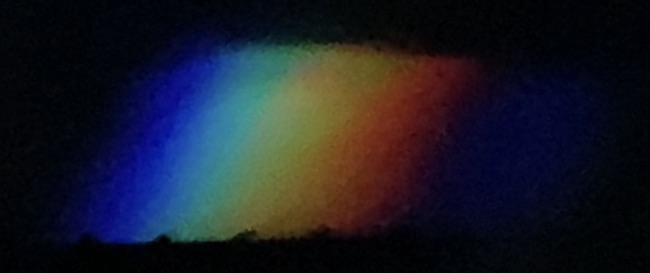

Estimation Image of results (shot on iphone)

Project Description:

A hyperspectral VIS-NIR (Visible to near infrared wavelengths) solar CCD spectrometer to be used to analyze forest health. Composed of a series of optics to focus and isolate individual wavelengths for detection enclosed in a polycarbonate 3D printed enclosure. The final design incorporates a field of view of 45 degrees and allows for focused light in the wavelength range of 400-1000nm. Weighing just under 3 lbs and being smaller than 8x8x5in, this allows the final product to be mounted on a UAV for aerial data collection. This device is capable of operating in standard weather and temperatures including heavy rain/snow as well as an operating temperature range of 0-50 °C. The enclosure protects the internal components (both optical and electrical) from liquids and dust. Design softwares used include Zemax, Onshape, and MATLAB.
