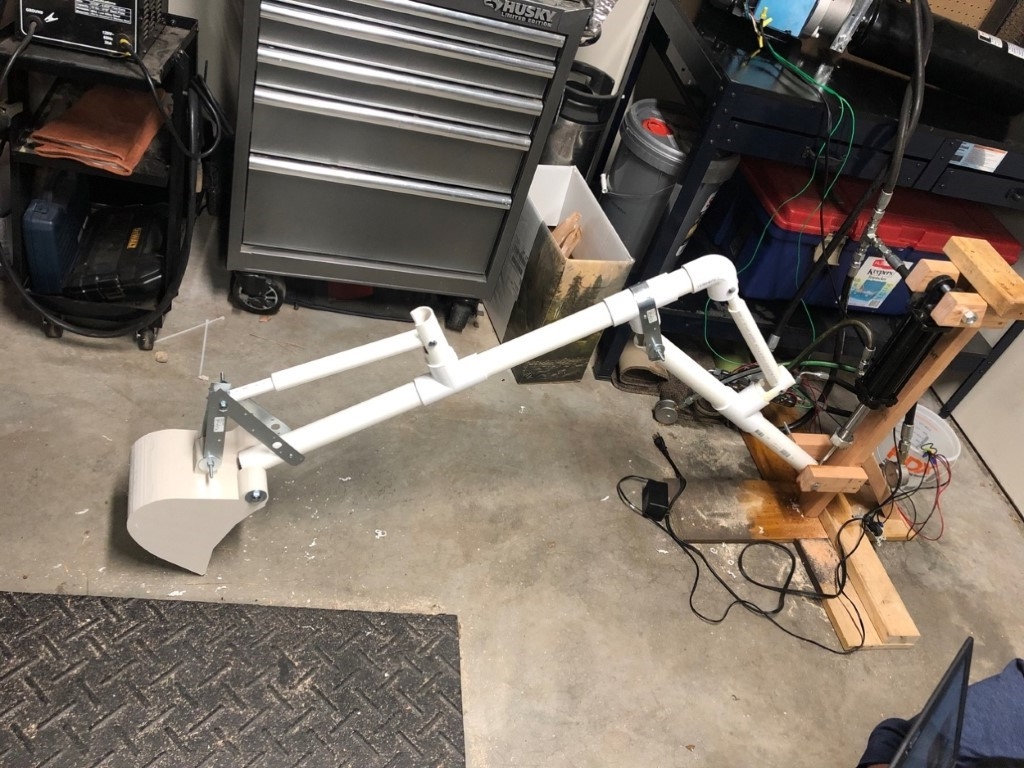

Final Product
Materials, Parts, & CAD Models
Materials
1 ½ inch x 15 in PVC pipe (x2)
1 ½ inch x 14 in PVC pipe (x1)
1 ½ inch x 4 1/2 in PVC pipe (x1)
1 ½ inch x 13 inch PVC pipe (x1)
1 ½ inch x 5 inch PVC pipe cut (x1)
1 ½ inch x 4 inch PVC pipe cut (x1)
1 inch x 11 ½ inch PVC pipe (x2)
3/4 inch x 11 ½ inch PVC pipe (x2)
3x2 inch x 30 inch Wooden beam (x2)
3x2 inch x 6 inch Wooden beam with ½ inch hole (x2)
3x2 inch x 6 inch Wooden beam with 3/8 inch hole (x2)
3x2 inch x 5 1/2 inch Wooden beam (x1)
3x2 inch x 15 inch Wooden beam cut 45 degree ends (x1)
1 ½ inch PVC T fitting (x3)
1 ½ inch PVC 90 degree elbow fitting (x1)
6 inch stroke hydraulic RAM (x1)
1/4 inch x 4 inch carriage bolt (x6)
1/4 inch x 2 1/2 inch carriage bolt (x1)
3/8 inch x 8 inch carriage bolt (x2)
½ inch x 6-inch bolt (x1)
¼ inch nut (x7)
3/8 inch nut (x4)
½ inch nut (x1)
¼ inch washer (x8)
3/8 washer (x3)
15 inch aluminum fencing brackets (x1)
9 inch aluminum fencing bracket (x4)
¾ inch x 7 inch x 11 ½ inch wood board (x2)
¾ inch x 7 inch x 28 inch wood board (x1)
1 ¼ inch steel cap with 3/8-inch hole (x1)
3/8 x 6 inch eye bolt (x1)
3/8 inch lock washer (x2)
2 inch multi-purpose construction screws (x25)
1 ¼ multi-purpose construction screws (x6)
6 x 7 x 10 inch 3D printed bucket (x1)
1 hp electric motor (x1)
Hydraulic tank (x1)
6 ft of ½ inch 4000 psi hydraulic hose (x2)
2 ft of ½ inch 4000 psi hydraulic hose (x2)
Bi-directional hydraulic solenoid (x1)
3 liters of hydraulic fluid
Tools
Crescent wrench
Phillips head screwdriver
Power drill
Phillips head bit
CAD Models

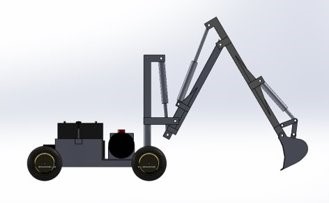

Assembly of Excavator

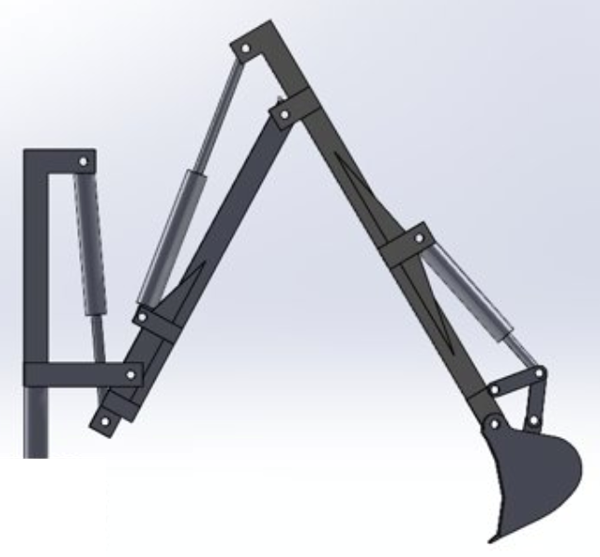

Full Arm Assembly
