Mixing Valve

General Atomics requested our NAU Capstone Team from Flagstaff, Arizona during spring 2020 semester to design a mixing valve to be used in one of their products.

------------------------------------------------------------------------------------------------

General Atomics Statement Below:

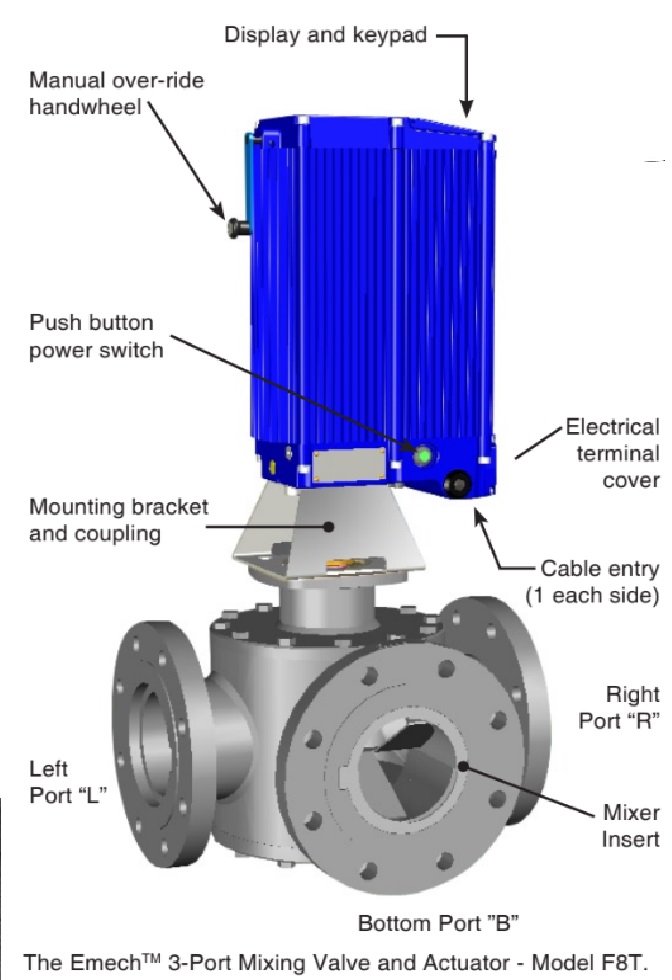

General Atomics Electromagnetic Systems (GA-EMS) builds high-energy lasers which all employ a mixing valve in the cooling system to provide temperature-controlled water to temperature-sensitive components. The current mixing valve is a GA-EMS modified commercial-off-the-shelf (COTS) component which replaces the COTS flanges with smaller fittings, reducing the overall weight from 144 lbs to 108 lbs. However, some programs have a need for lighter weight designs to meet system level requirements. A preliminary trade study identified that a custom GA designed valve could provide 60 lbs in weight savings, thus producing a lightweight mixing valve that could be used as the standard for all future laser programs.

------------------------------------------------------------------------------------------------

The goal of the project is to design a lighter mixing valve to replace G.A. current mixing valve. The new mixing valve must perform as well as the current valve and maintain the same level of reliability.
