SunTrac Brazing Jig

Project Goal

This capstone project consists of redesigning the braze welding jig that is currently in use at SunTrac USA. The objective of this project is to design a new braze welding jig that is compatible with SunTrac’s 8’, 6’, and 4’ product variants. SunTrac's website can be visited here.

The completion of this project has been halted due to the COVID-19 outbreak. Therefore, the manufacturing process could not be completed.

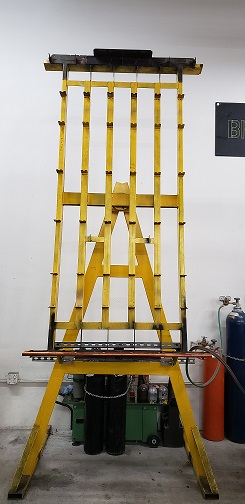

This is the first jig that SunTrac owns which is used to weld 8 foot copper manifolds.

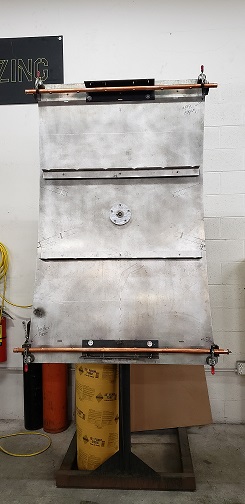

This is the second jig they have which is used to weld 6 foot copper manifolds.

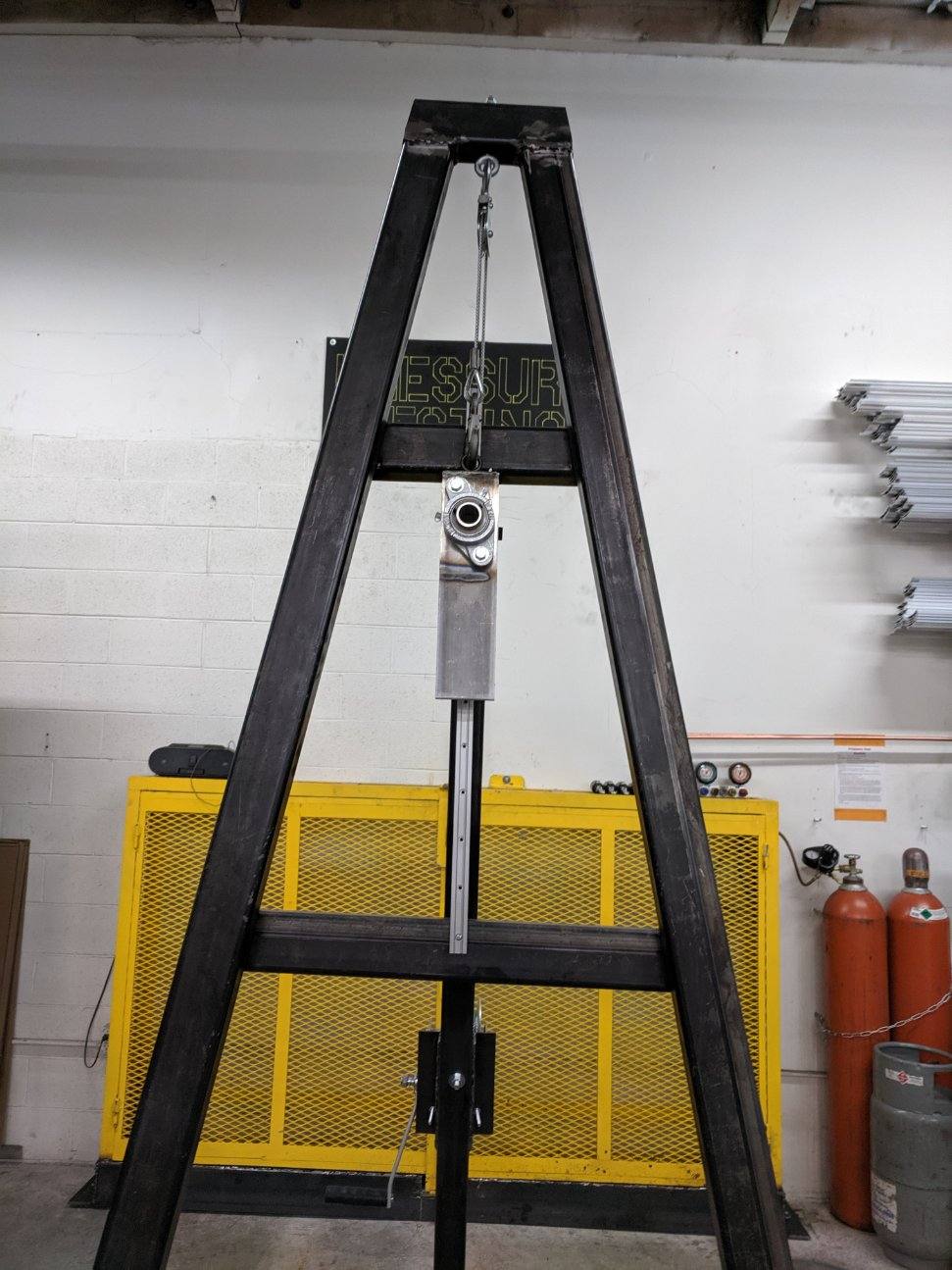

The current state of the manufactured jig.
