Project Description

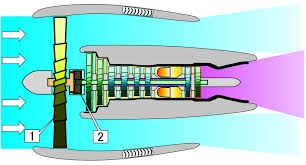

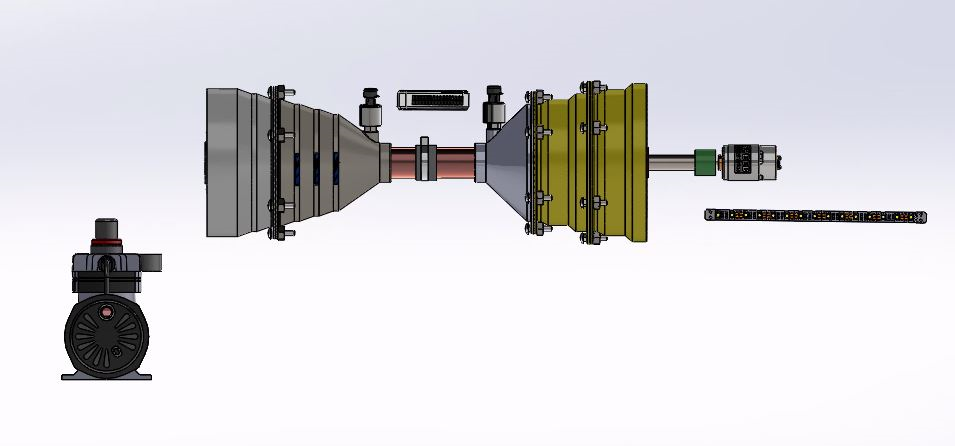

The purpose of this project is to design and construct a functional and educational high bypass turbofan model. The model will showcase thermodynamic principles through the use of pressure and temperature gauges strategically located throughout the model. Visual representation of the gauges will be presented through the data collected from pitot static tubes and thermal couplers.
