NAU Senior Design Capstone Project |
|
Wheelchair Trainer |
|
Final Design |
|

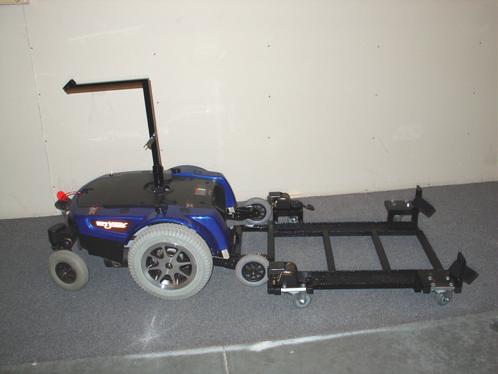

The final design showing the Jazzy 1122 powered base, the base for the student’s chair and the post to mount the control joystick on. The base is painted in high gloss black auto paint and the high wear areas such as the diamond plate trays were coated with a durable truck bed lining.
|
|

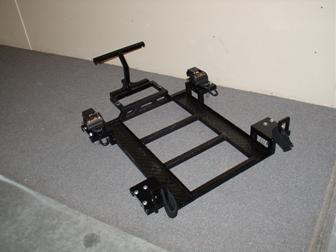

Final Base, and Mount assembly |
|

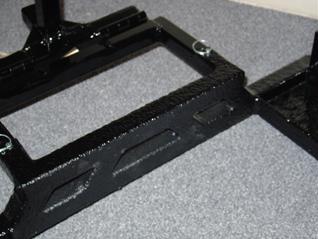

Base / Mount connection showing pivot and pinned connections |
|

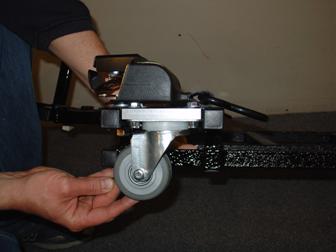

Rear castor wheel with ratcheting straps mounted on top. |
|

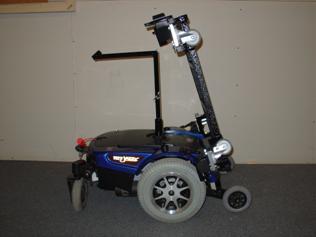

Completed design shown in the storage position. |
