Northern
Arizona Progressive Design |
|
Phone:
520-518-0049 |
|
Solution |
|
Team Leader—L. Rus Payne Lead Design Engineer—Daniel Cole Design Process Coordinator—Rick
Huisman Communications Officer—Beau Wilson Financial
Officer—Jason Mendoza |
|

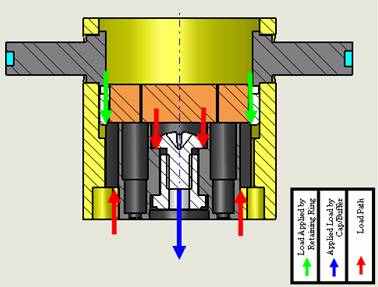

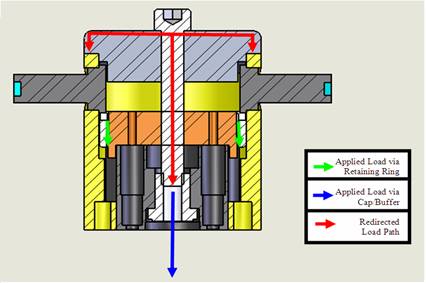

Shown directly below is a picture of the current
load path on the left and the load path after the solution is Implemented on
the Right. The solution redirects the
load path from the black dielectric material to the outer casing of the J-9
Connector. |
|

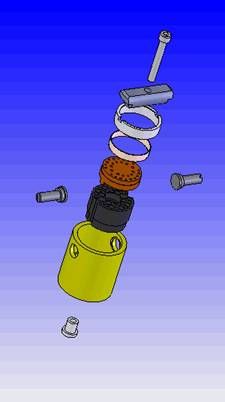

Some of the Pros and cons are listed below. An exploded view of the assembly is shown. § Pros – Simple
to implement § 1
screw § Sits
on top of case – Easy

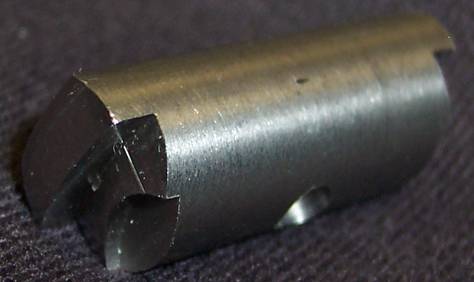

to manufacture § Made
from .5” round stock) § Simple
operations – Completely
eliminates load path from Dielectric § Cons
– Dielectric
rubber grommet must have center hole for bolt to pass through – Minor
weight addition |
|

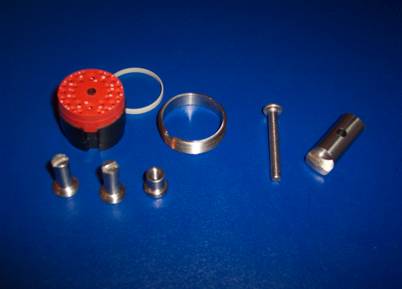

Below is the retrofit kit for the J-9 Connector |
