Final Product

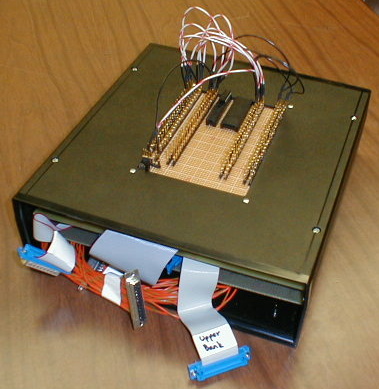

fig 1 - Test fixture

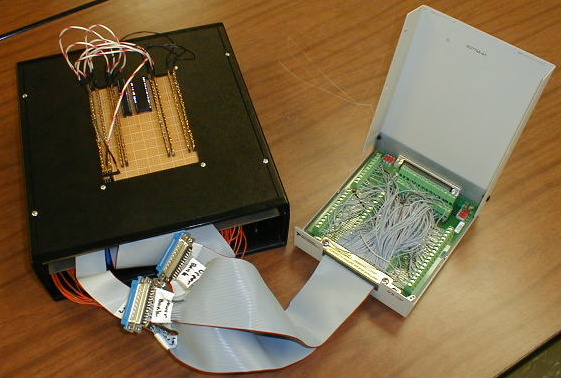

fig 2 - Shows connections to connector box

Application:

Test functionality of various ICs at almost any location using a PC

Features:

• Works for TTL chips

• Works for CMOS chips of operating voltages of 5V, 3.3V, 2.2V, 1.2V

• Works for two different package widths

• Easily portable

• Easy connection to connector box (see fig 2)

• Easy to use software

            - setup.exe, creates template test vector file

            - functional_test.exe, applies test vectors and creates result file

• Possibility of working for chips that have up to 96 pins
