Adam Bast assisted us in filming our training and demo videos, as well as, helping us communicate with our client. |
 |
Ben is activating the Emergency Dialer System. |
 |
Here is the Emergency Dialer System. |
 |

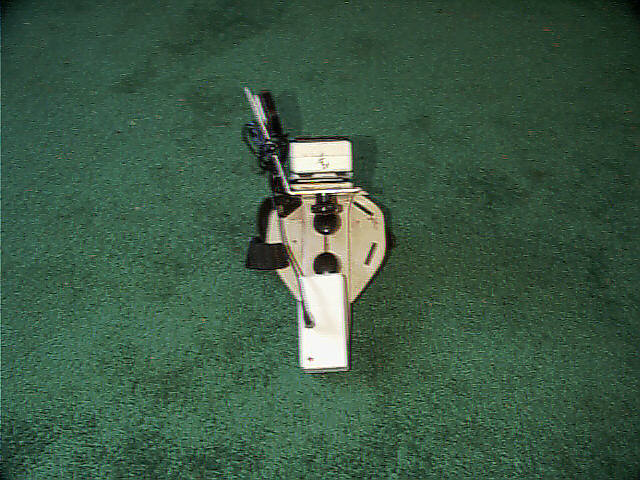

Here are the cap switch, transmitter, and mounting bracket on Ben's LTS bracket. |
 |

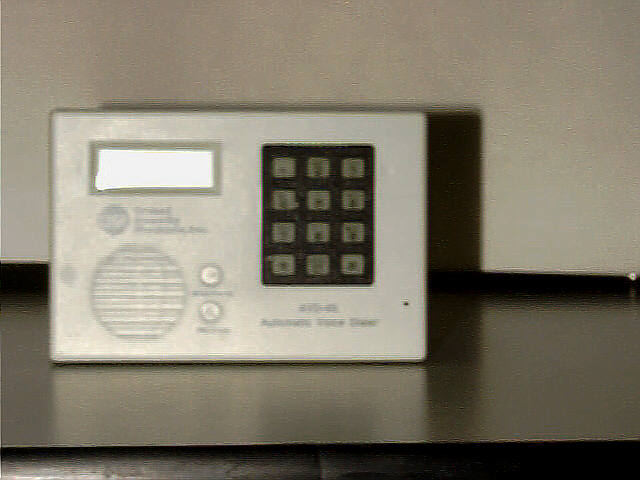

This is the AVD-45 Automatic Voice Dialer. |
 |

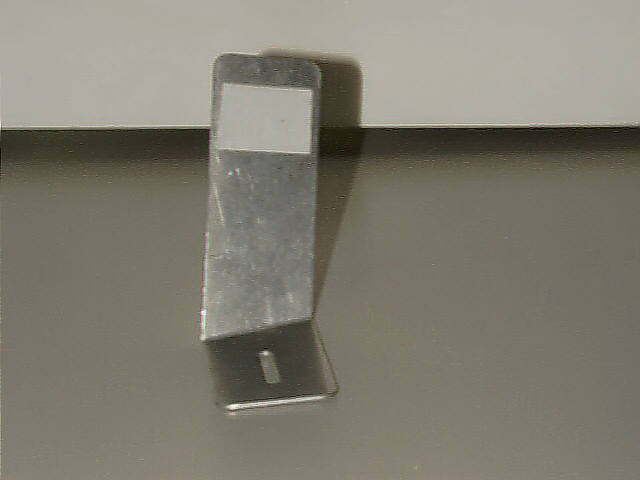

The IHD Team had this Mounting bracket custom made in the College's Machine Shop. |
 |

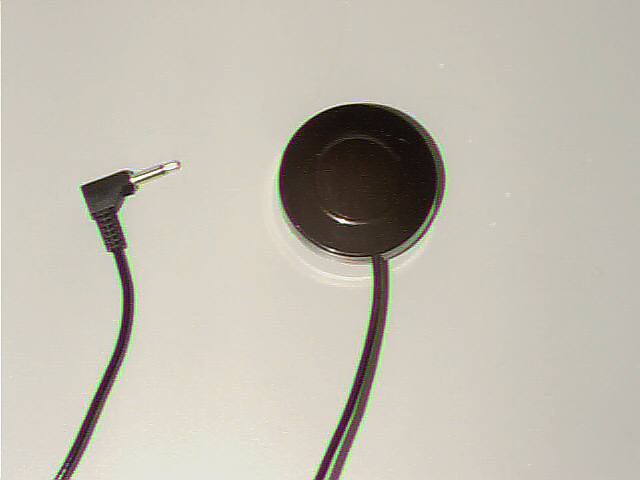

The Cap switch is attached to the Mounting bracket. |
 |

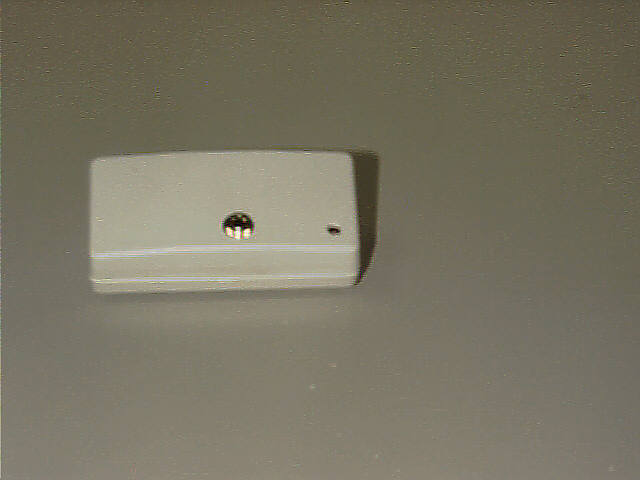

The DXT-31 Transmitter emits a signal when the Cap switch is depressed. |
 |

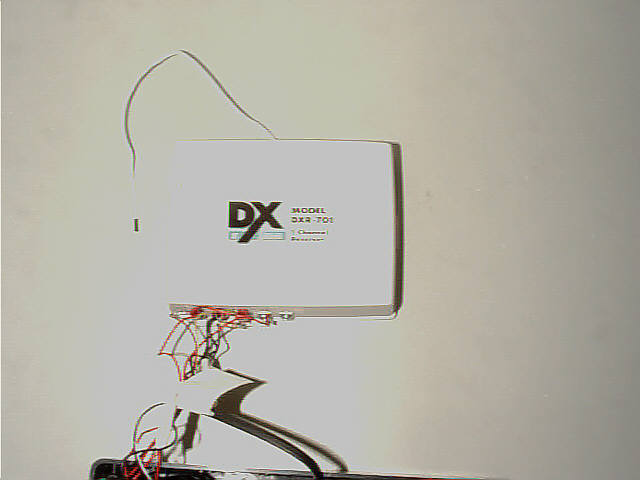

The DXR-701 Receiver activates the automatic dialer once the signal is received. |
 |

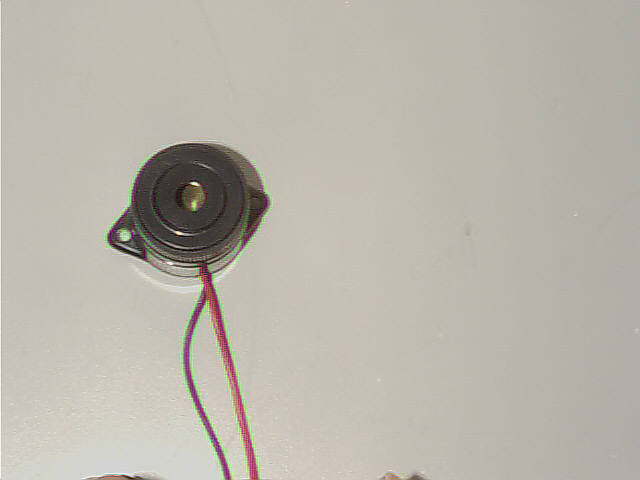

At the same time, the Piezo sounder will emit a continuous beep. |
 |

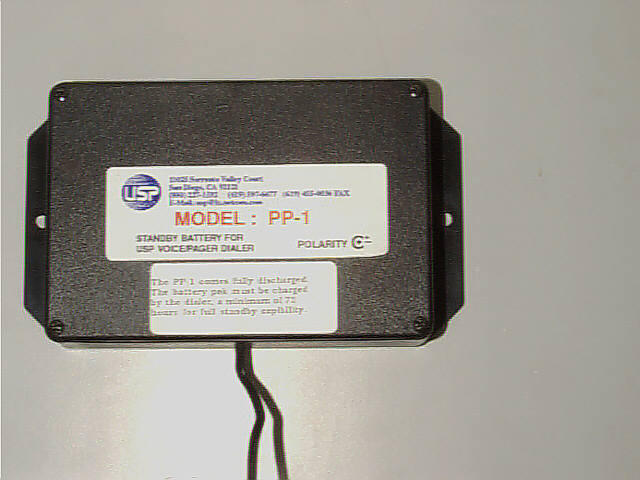

The PP-1 Backup Battery provides power in case of a power failure. |
 |

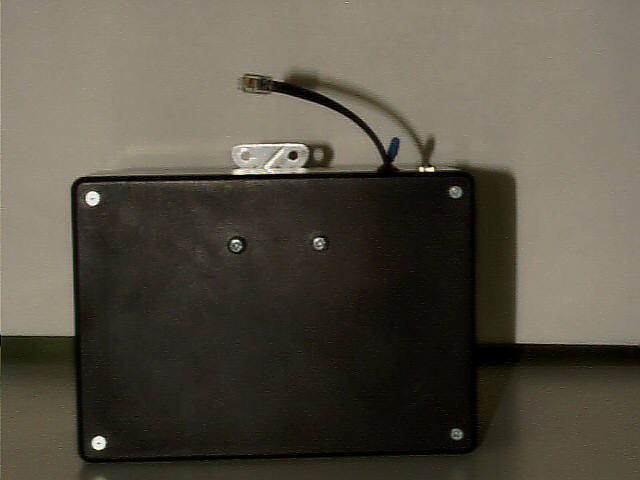

The Black Box is capable of being wall mounted. |
 |

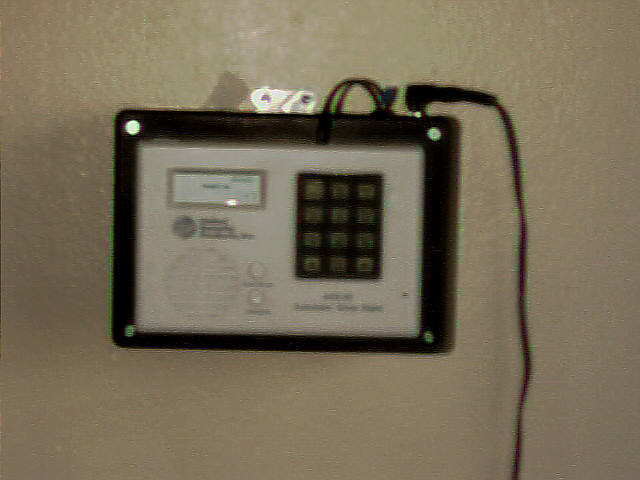

Here the Black Box and voice dialer are mounted to the west dorm room wall. |
 |

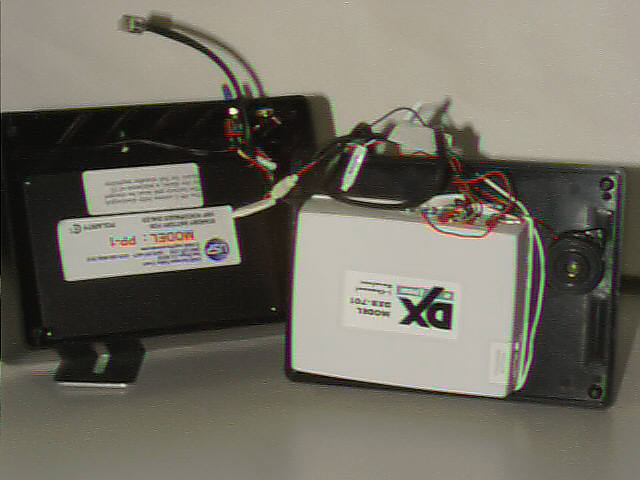

The Black Box contains the PP-1 Battery Backup, DXR-701 Receiver and Piezo sounder. |
