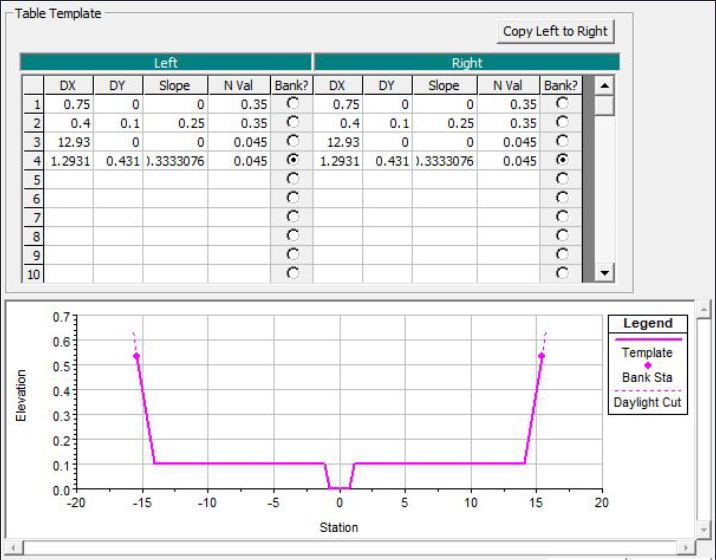

Gemorph Template

Above is an example of a template which was created and applied in our design of the restoration. The template shown is for Site 1. This template depicts the shape of the channel which a normal storm event will flow through.

Close

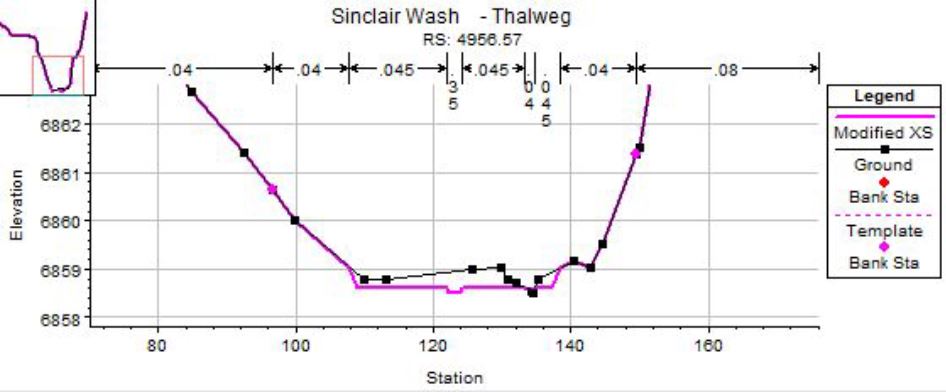

Cross-Section Modification

Above shows the template being applied to a cross-section of the wash in Site 1. These templates created for each site were applied in order to ensure that the minimum bankfull area was able to flow through the wash.

Close

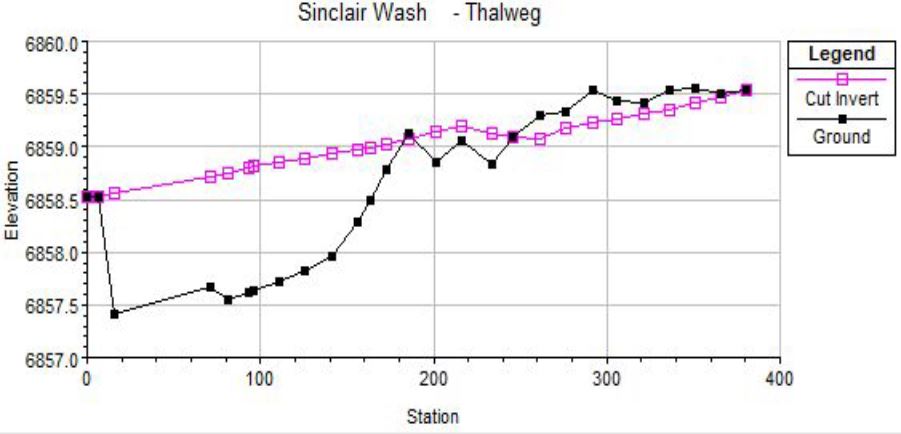

Profile Modification

Above shows modifications being made to the profile of Site 1. Similar was performed to each site. The modifications being made are to better allow water to flow through the wash while reducing the amount of puddling. In order to due this a "Riffle, Run, Pool, and Glide" type of proile was appied to the wash.
