Project Understanding

Project Location

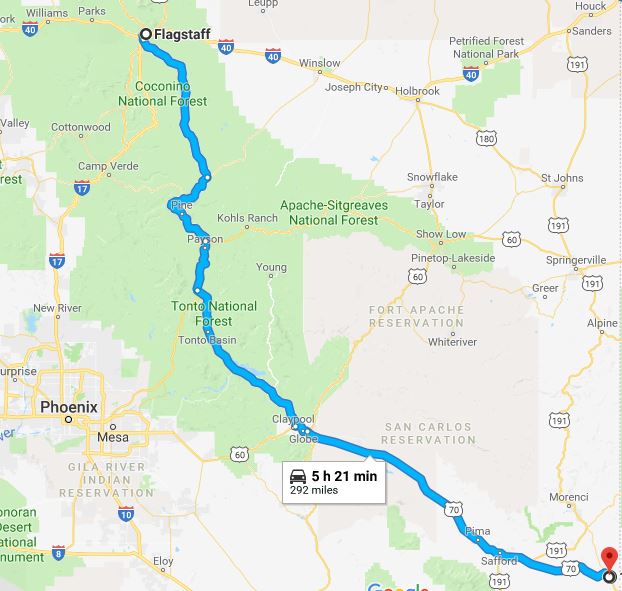

Duncan AZ is located 292 miles southeast Flagstaff AZ. It is near the boarder of New Mexico.

Project Constraints

Minimize overall cost to make the project affordable for both the town of Duncan and the Federal Government. Maximize the efficiency of the levee by ensuring highway elevation is not overtopped by future flooding. Designing multiple alternatives for client and Develope an atheistically pleasing elevated highway is priority without causing any lifestyle impacts.

Task

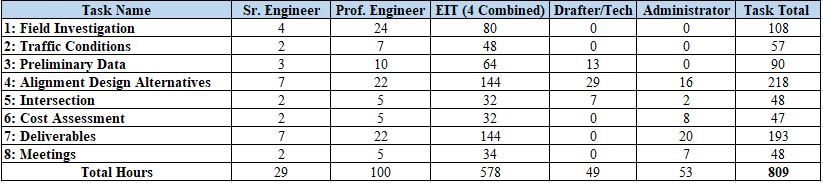

Design Alternatives

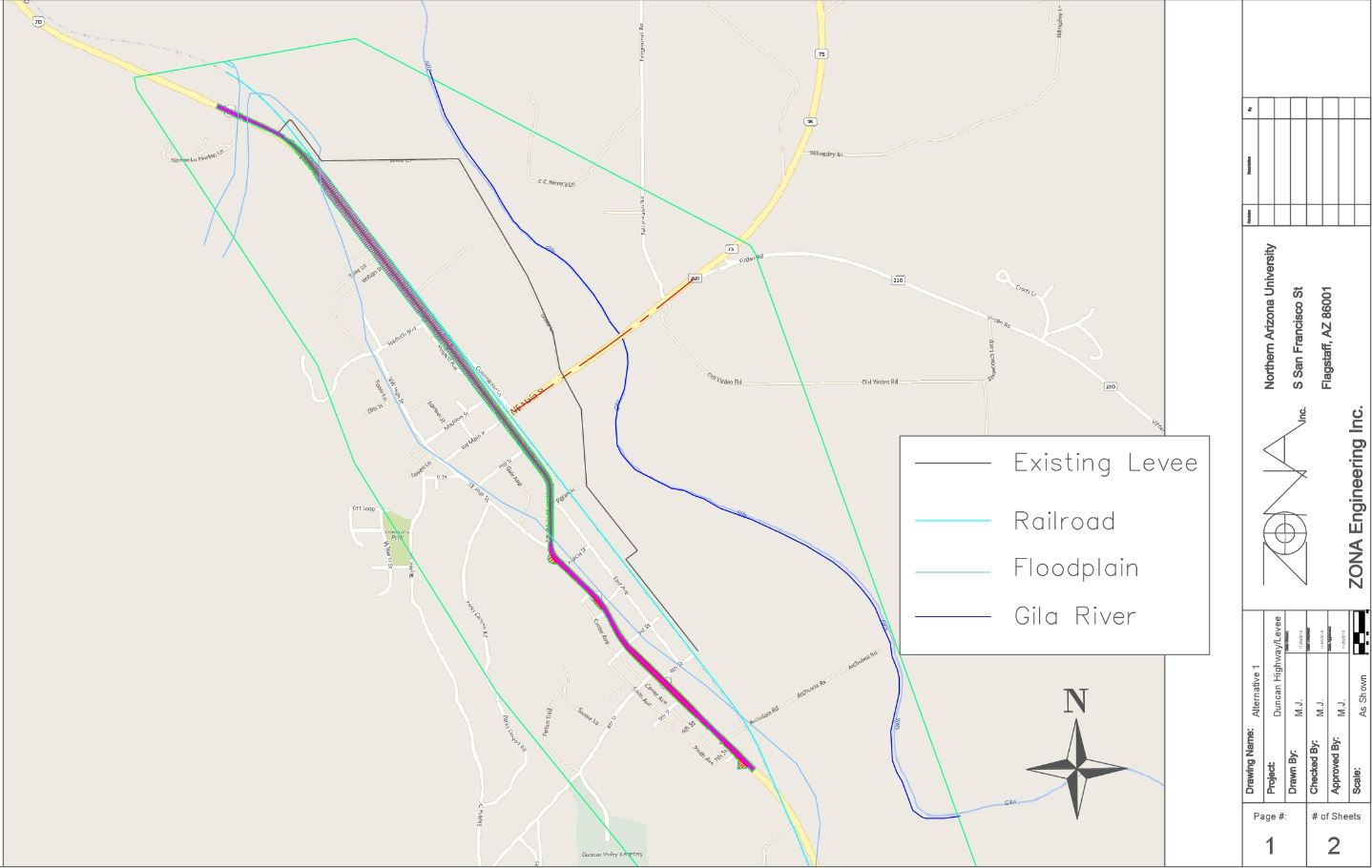

Alternative 1 Horizonal Alignment

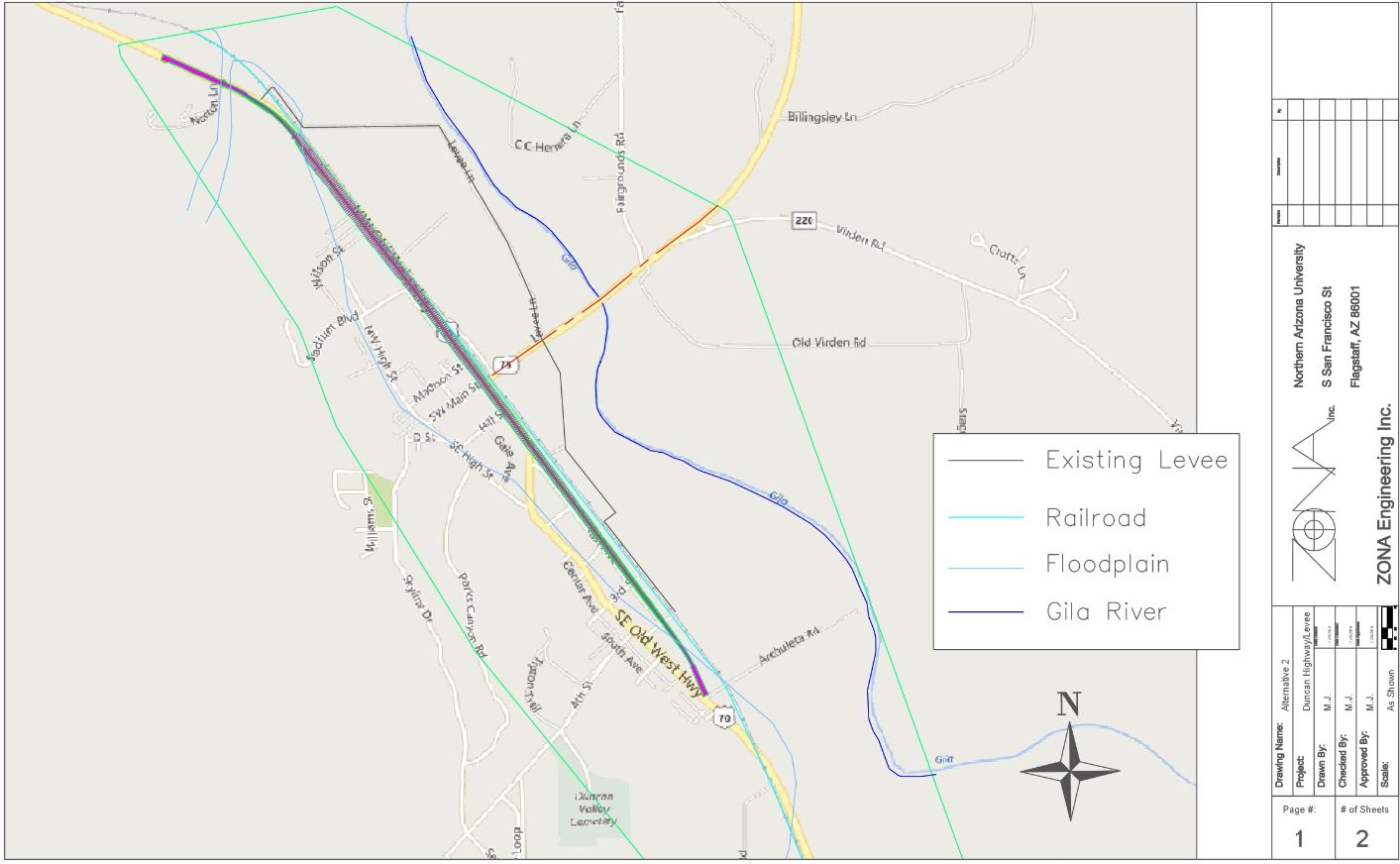

Alternative 2 Horizontal Alignment

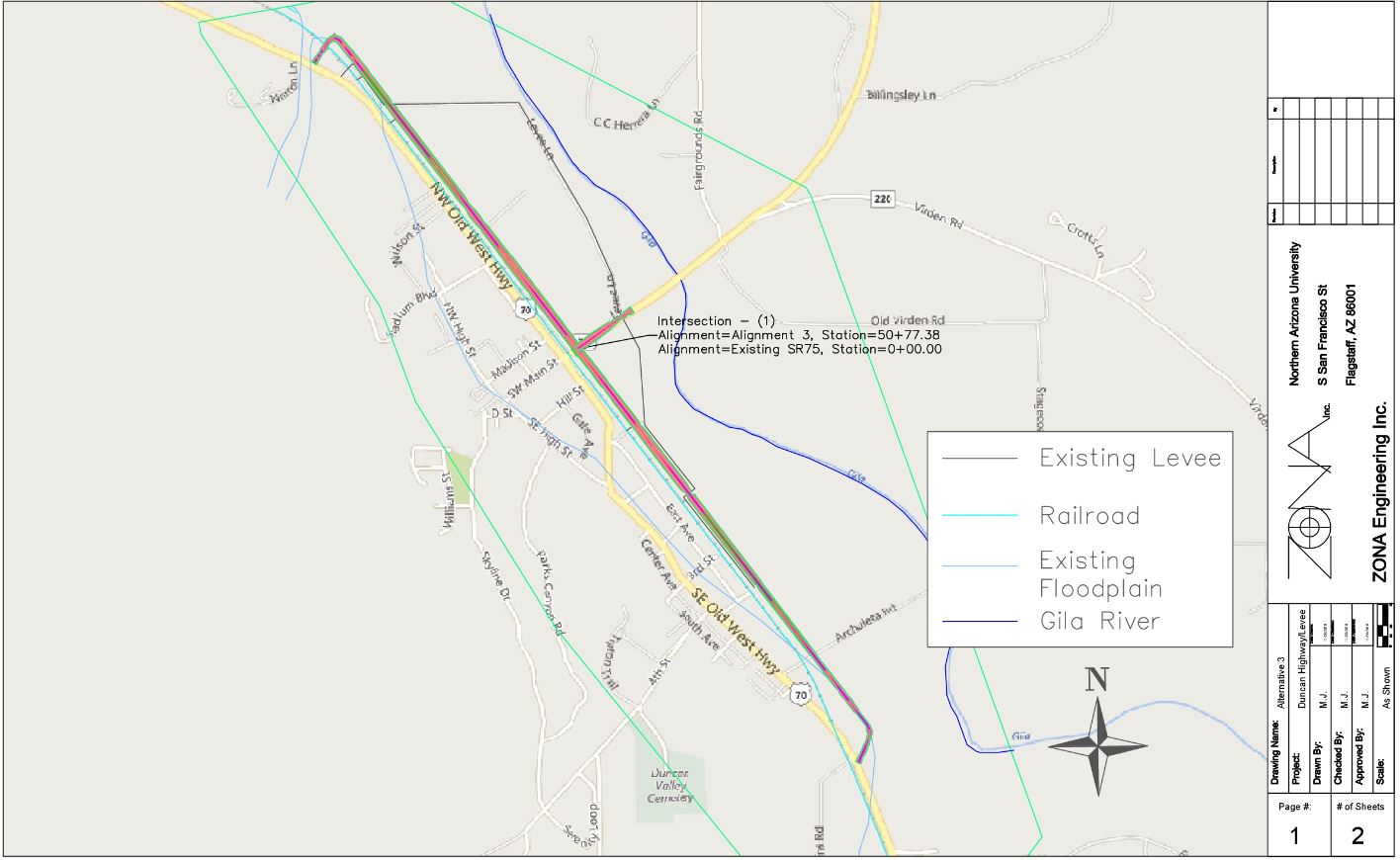

Alternative 3 Horizontal Alignment

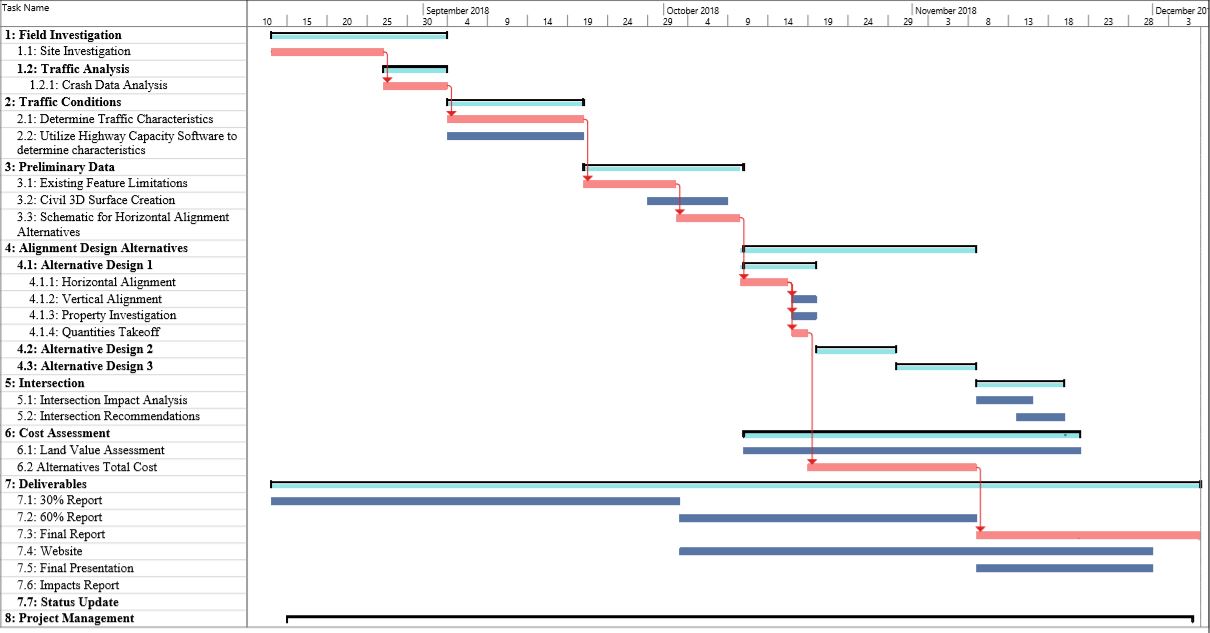

Ganatt Chart

Proposed

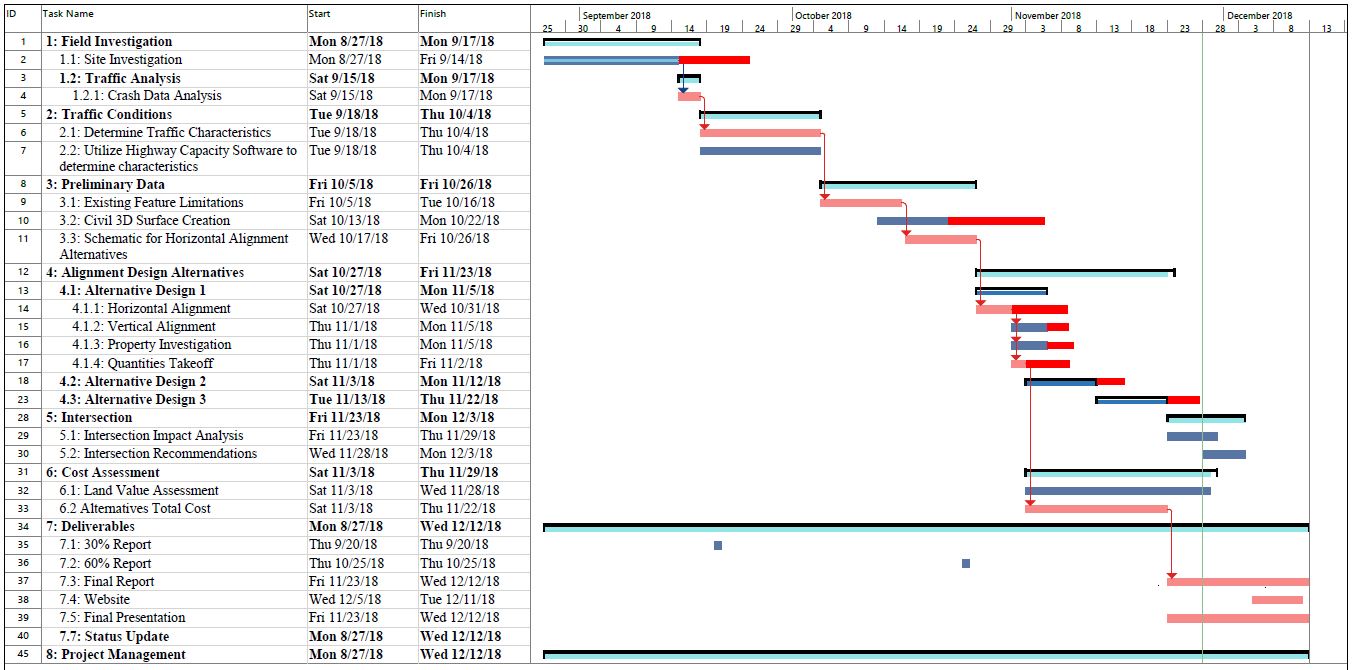

Actual
