CAD Drawings Archive

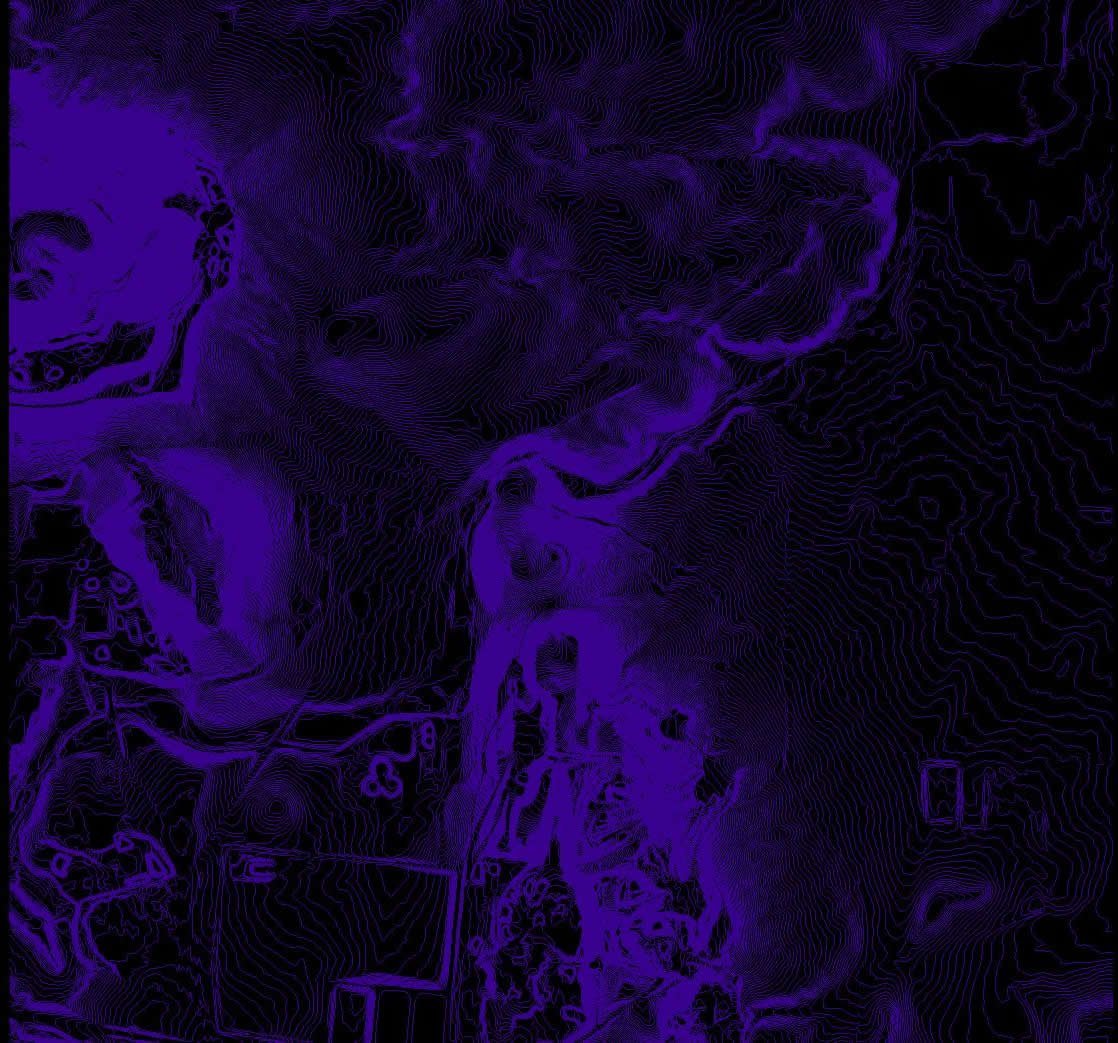

Countour map (2-ft intervals) of project site:

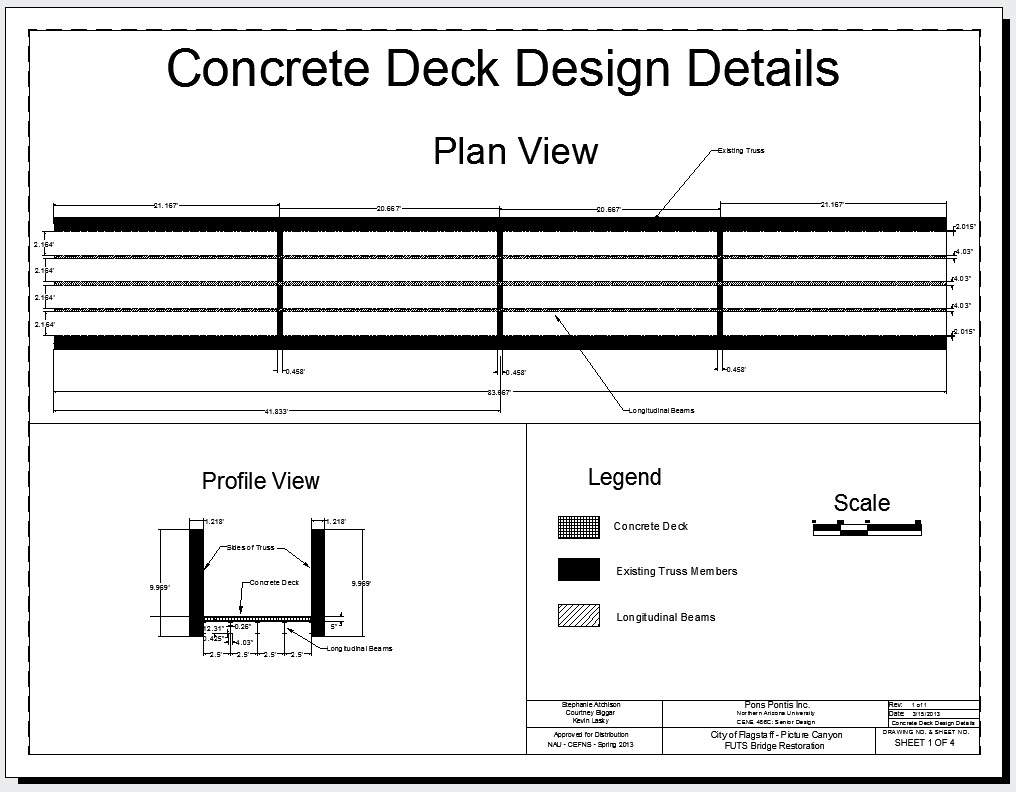

Concrete Deck Design Details from AutoCAD 2013:

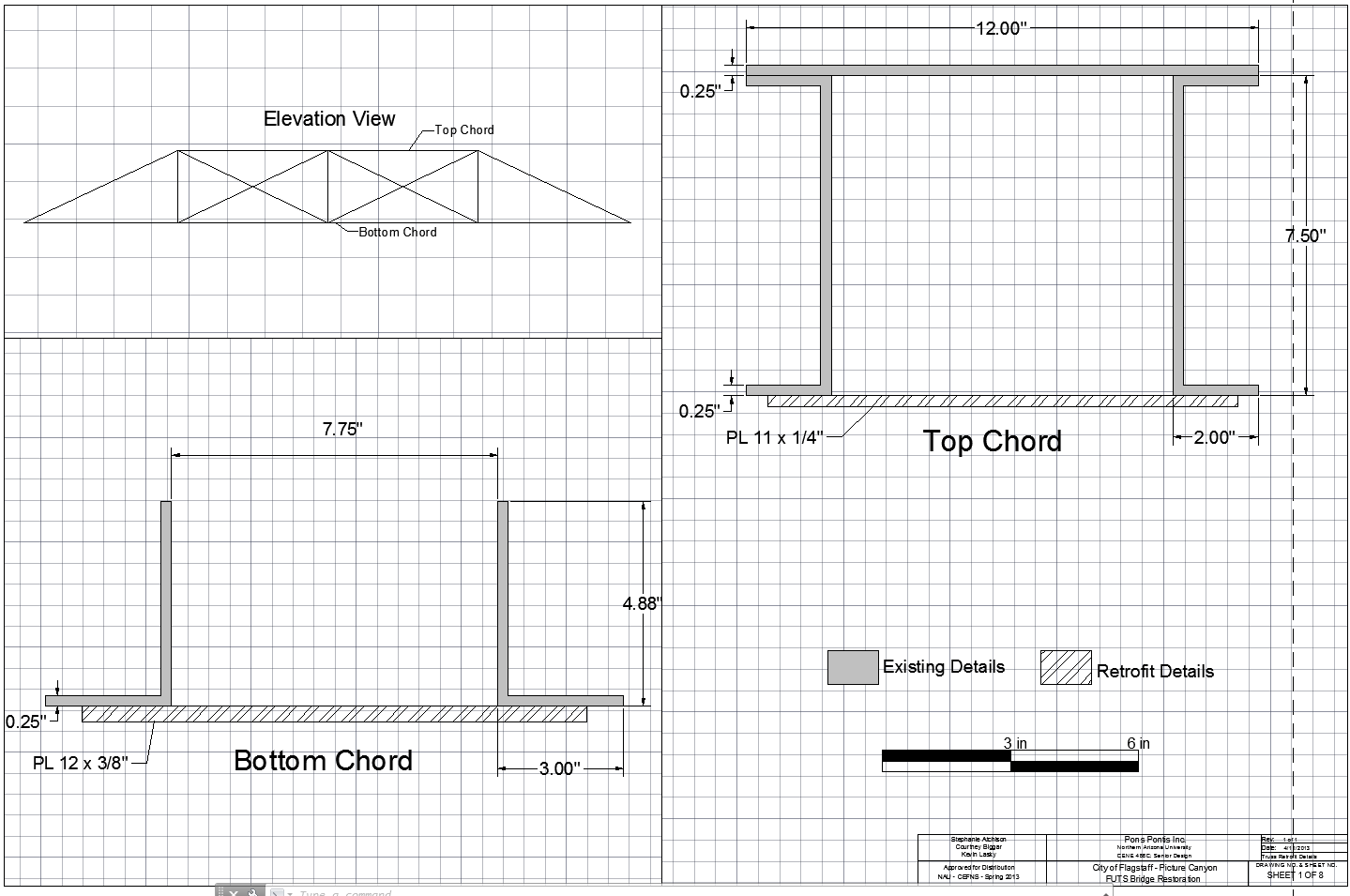

Steel Truss Retrofit versus Existing Details from AutoCAD 2013:

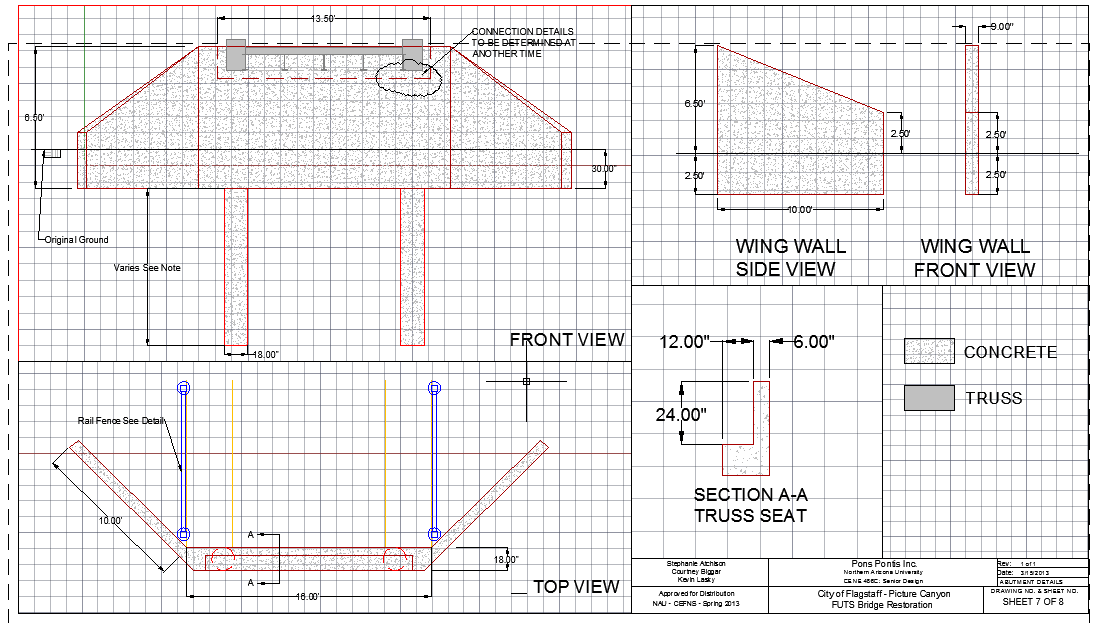

Abutment and Embankment Design from AutoCAD 2013:

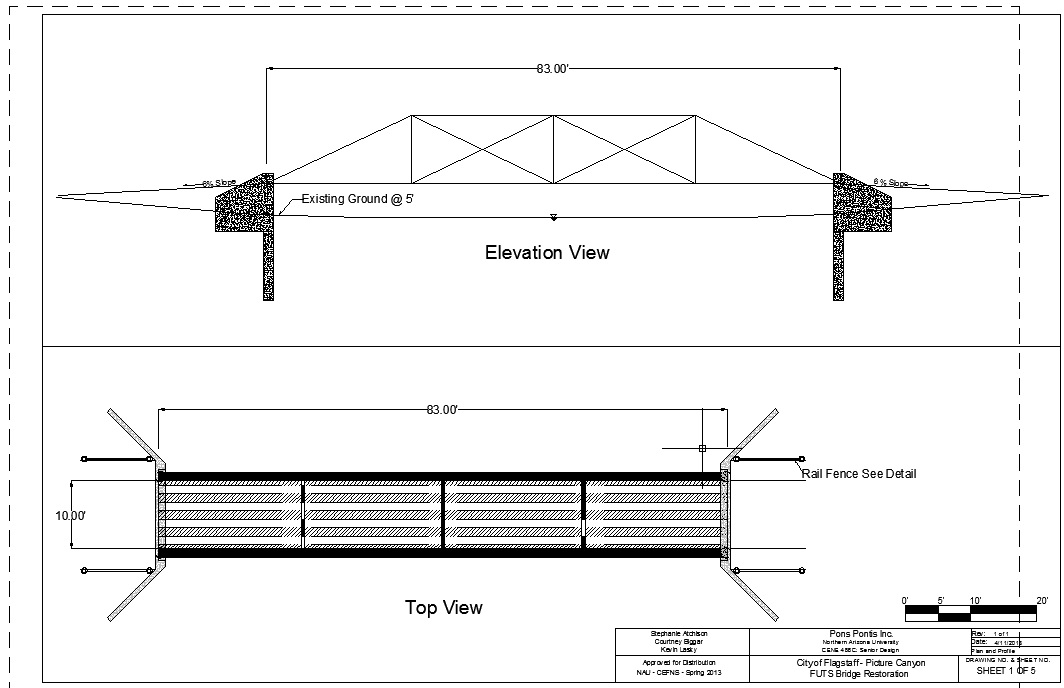

Plan and Profile of Project Area from AutoCAD 2013:
