Inundation Study

for City of Flagstaff Reservoirs



 Above: West Reservoir

Project Overview

Client:

Randy Pellatz, PE

City of Flagstaff

Utilities Asst. Director

                          Above:  JCW Engineering Senior Design Team.  From left to

                          right:  Chad Osborn, Waiel Younis, and Jennifer Dent

Problem:

Need an Inundation (Flood) Study for City of Flagstaff two 50 Million Gallon Reservoirs in the possible situation of a Reservoir Breach. The Inundation Maps produced will be included in an Emergency Action Plan (EAP) required by FEMA.  JCW Engineering used FLO-2D to produce inundation maps.

Location:

Behind the Museum

of Northern Arizona (MNA)

Property as shown in Reservoir Site Plan below

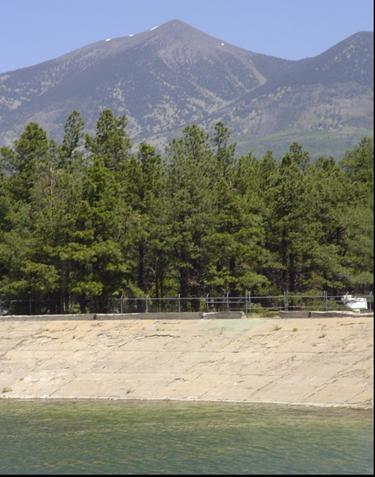

Above: West Reservoir

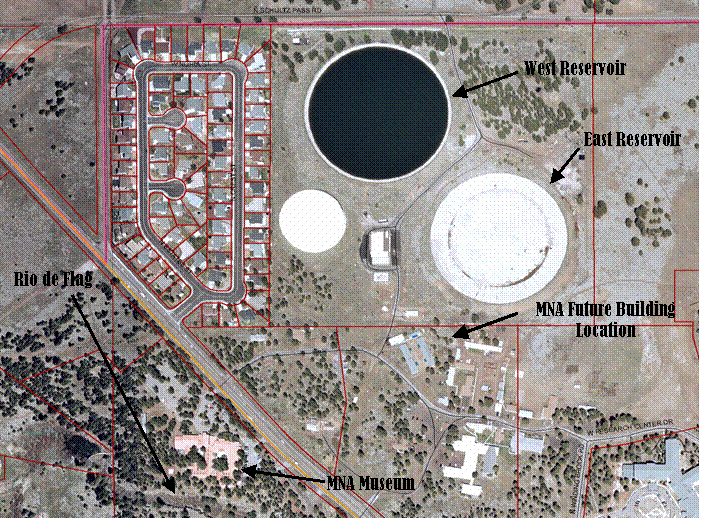

Left:  Reservoir Site Plan.  As pointed out, the future Museum of Northern Arizona (MNA) building is located just South of the East Reservoir.

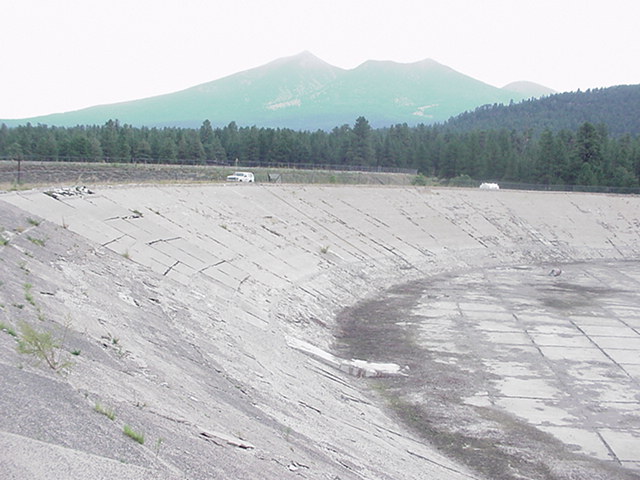

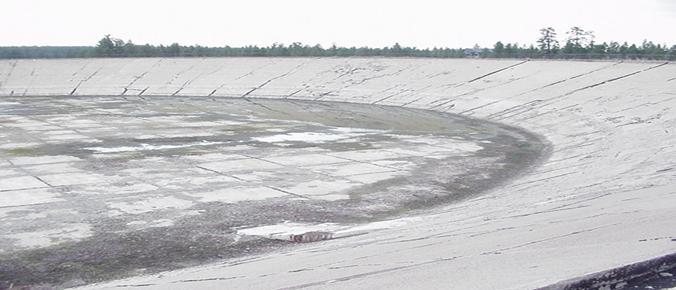

Below:  East Reservoir
